 Post subject: Re: Stewartstown RR #6
PostPosted: Thu Jul 28, 2022 3:27 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 21
Randy Gustafson wrote:
Does Plymouth 6 have a similar mechanical transmission like 9?

I got to inspect 9 and was astounded at the mechanical transmission (4 speed?) with a clutch pedal with about a 12" vertical throw and nearly took all your weight to hold down.

Other than the two-speed drive in a Climax A that's the darndest engine-to-wheels system I've personally seen in a locomotive.

The fact that 9 still runs with that LeRoi gas engine is just amazing, even if you have little respect for critters it's a pretty notable piece of equipment.


Randy.

Yep. It’s the same transmission. 4 speed with a built in reverser. There’s a secret to those clutch pedals. They are air assisted. When the engine is running, that clutch pushes in a lot easier. #6 has the same external dimensions as #9 just has less weight attached to the chassis. They both use 2.5” pitch chain to drive the axles. #6 is single width, and #9 has double width chains.


Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Mon Aug 01, 2022 8:24 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 21

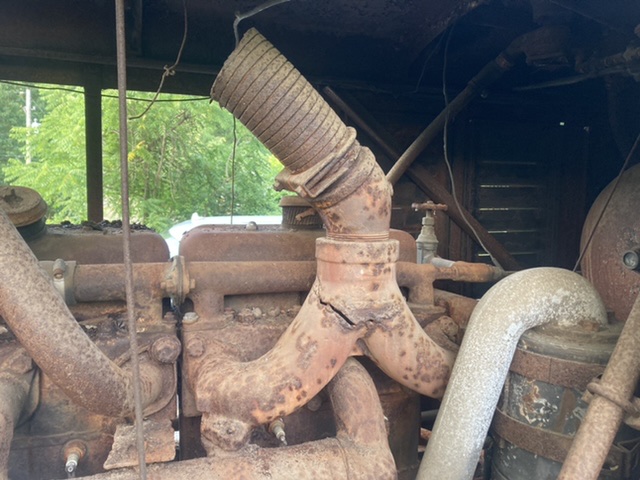

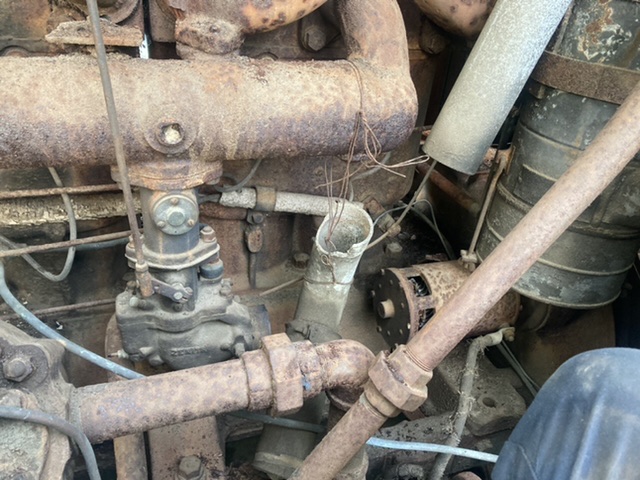

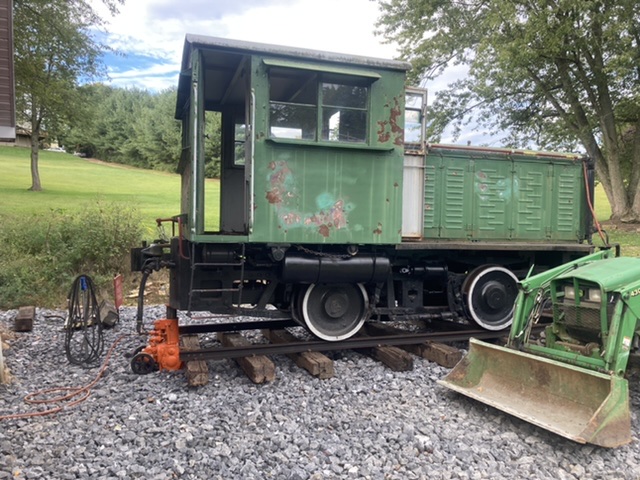

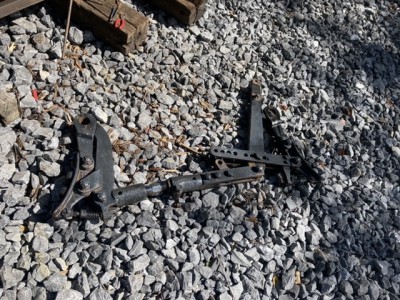

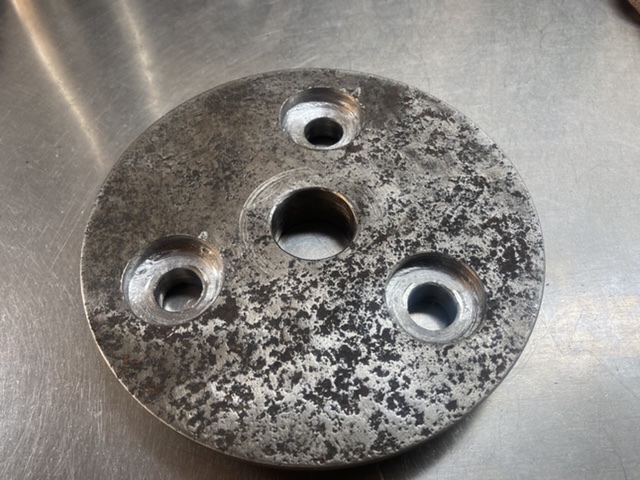

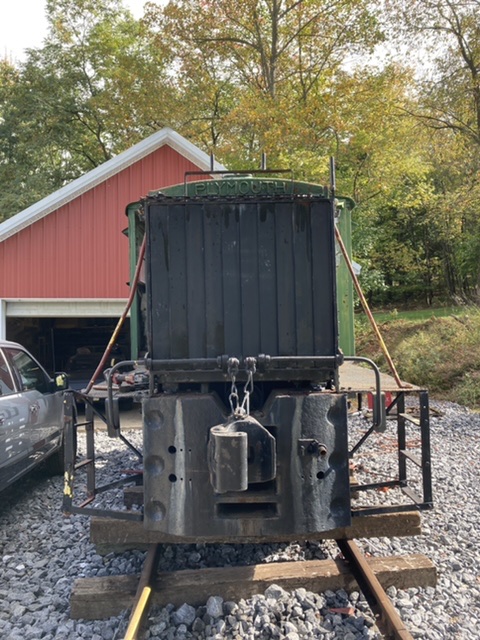

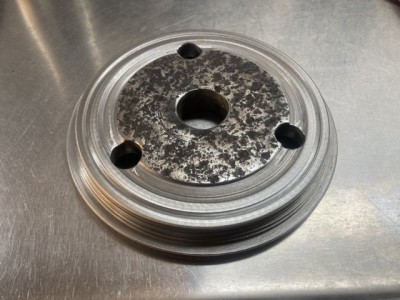

Here are some pics from today’s work. The exhaust stack is off. The hood is a rusty mess and the old exhaust pipes were held up by wire. So much to fix here.


Attachments:
0077512B-DC55-415F-932A-F297E4A17ADF.jpeg [ 142.29 KiB | Viewed 2593 times ]
D9F0BAF3-982D-4625-A0F6-DBEDA8A6D232.jpeg [ 117.76 KiB | Viewed 2593 times ]
988382ED-3F8B-4355-8929-5F309E96C62D.jpeg [ 128.03 KiB | Viewed 2593 times ]
2078446B-25EB-4D33-8F57-7CEC51E83A29.jpeg [ 138.52 KiB | Viewed 2593 times ]
743A8A0F-D937-4405-AAFD-904458E47A1F.jpeg [ 156.72 KiB | Viewed 2593 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Tue Aug 02, 2022 4:46 pm

Joined: Sat Oct 17, 2015 5:55 pm
Posts: 1843

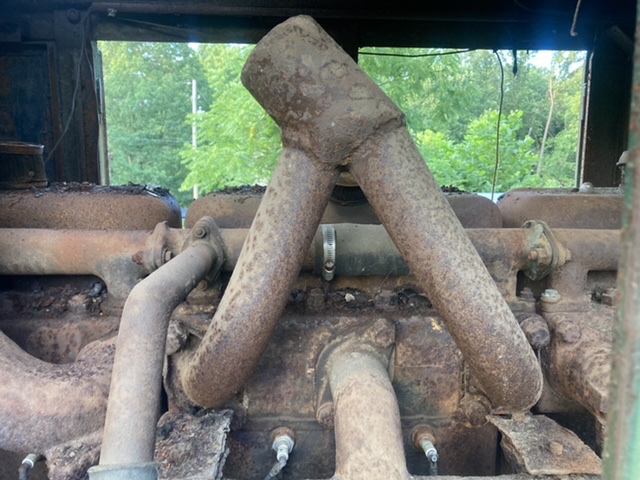

The exhaust manifold in the second photo looks like an original, but the one in the third photo does not.


Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Tue Aug 02, 2022 8:25 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 21
PMC wrote:
The exhaust manifold in the second photo looks like an original, but the one in the third photo does not.


You are correct. This thing has had many questionable repairs. Including a custom exhaust manifold.

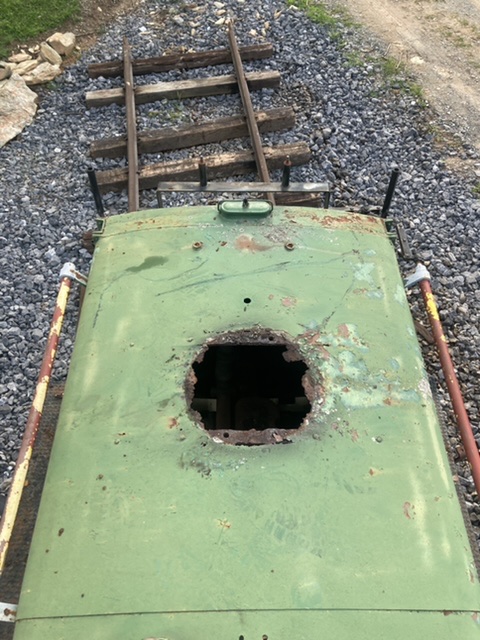

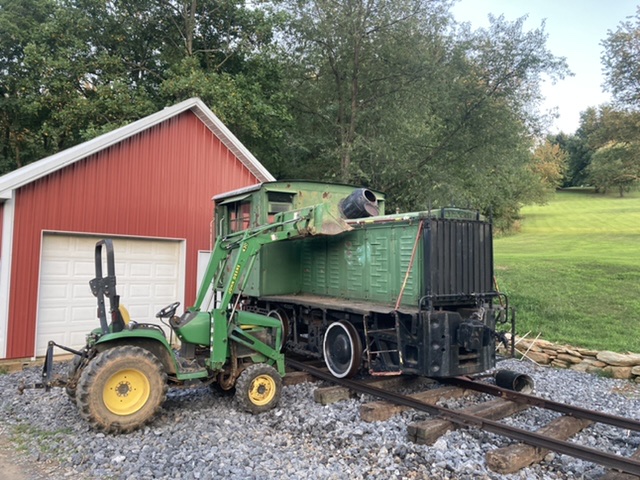

Some pics from today. Got the Sand Dome and Sanders off.


Attachments:
19625E73-E200-4284-B4FE-AEA695EA5991.jpeg [ 158.31 KiB | Viewed 2393 times ]
F6B14745-A0D9-4B9C-980B-BC2306EC9543.jpeg [ 158.57 KiB | Viewed 2393 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Thu Aug 11, 2022 6:34 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 21
An update from today.

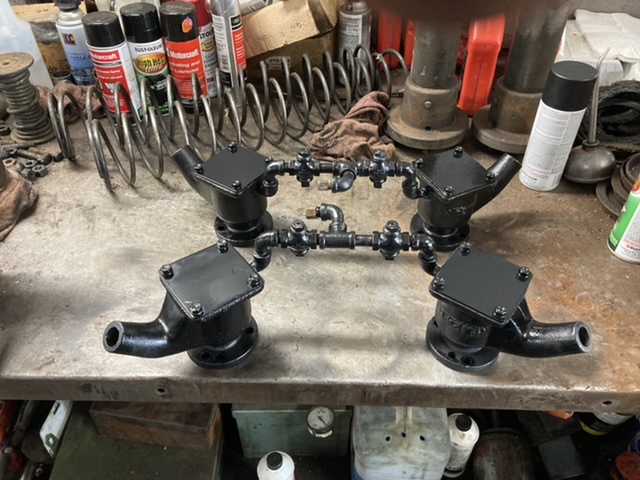

The sanders are done. Had to make new clean-out plates and gaskets.

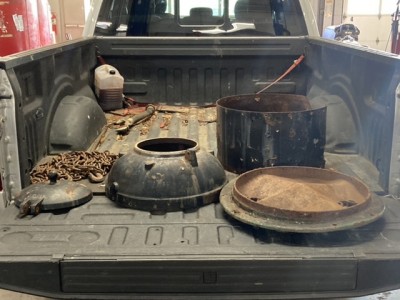

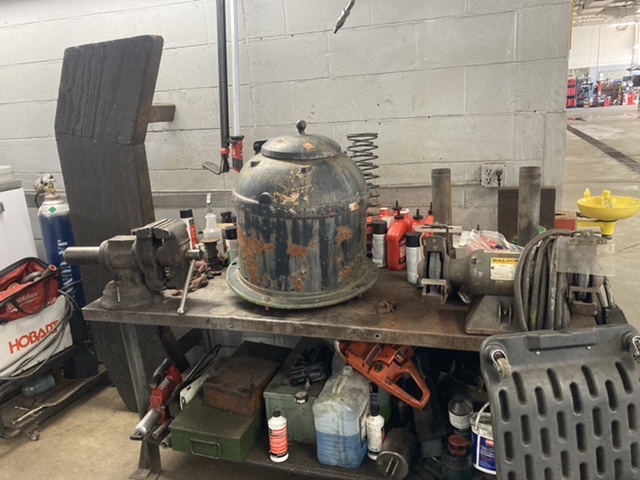

Next is the sand dome. Have it disassembled and will drop off the castings tomorrow at the blast shop. Need to make a new sheet metal part for the center. Too far gone.


Attachments:
5A256E61-0002-4ED9-B88E-EF6CA1708D23.jpeg [ 104.72 KiB | Viewed 2253 times ]
185D4E65-DF22-4744-B34C-25483FBC42EE.jpeg [ 114.16 KiB | Viewed 2253 times ]
61FFFE1A-EFF0-493E-B40B-9F2AD4306D94.jpeg [ 131.99 KiB | Viewed 2253 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Tue Aug 23, 2022 9:49 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 21

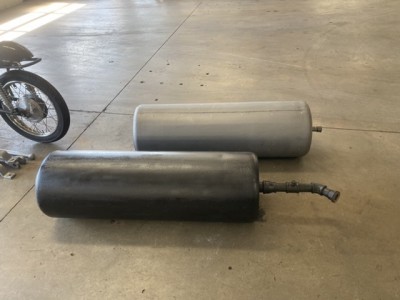

The main air reservoirs are back from the blast shop. I have both of them drilled according to CFR229.31. Need to get the other one painted and then see if they pass the Hydrostatic test. As far as I know, they are the original 1939 air tanks.


Attachments:
07182E04-8D3B-4E79-81E1-92DC2E14C978.jpeg [ 80.84 KiB | Viewed 2009 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Mon Sep 05, 2022 12:28 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 21
Both air reservoirs passed the Hydrostatic test and we installed them today.


Attachments:
F6E82A61-F9E3-4529-BF46-B82F0ECB813A.jpeg [ 141.45 KiB | Viewed 1808 times ]
1FB31764-B164-4BCD-92A7-AFB0432BAD56.jpeg [ 132.44 KiB | Viewed 1808 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Sun Sep 25, 2022 4:40 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 21
Here are some more updates.

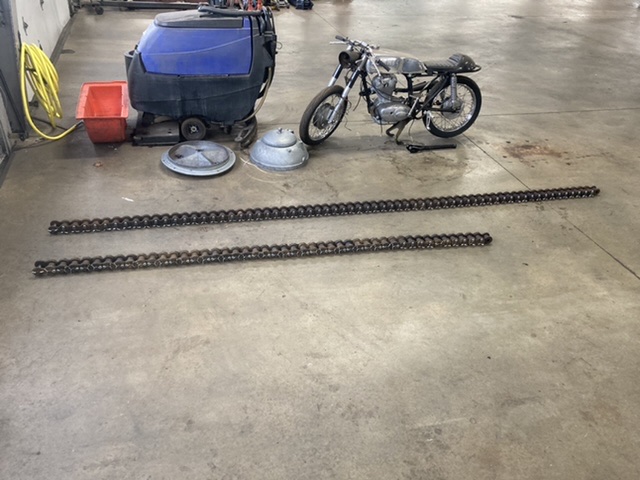

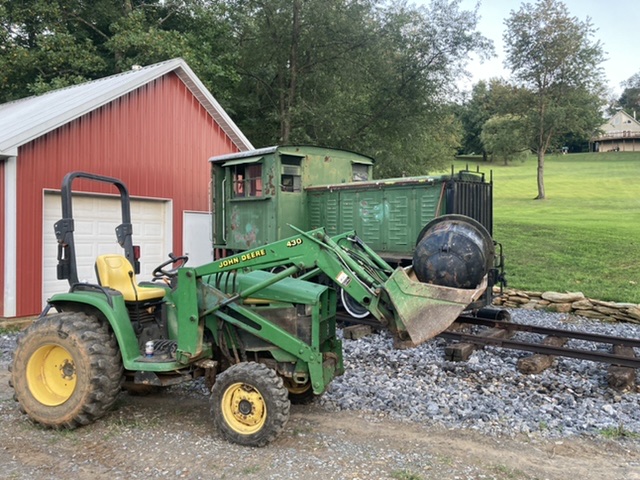

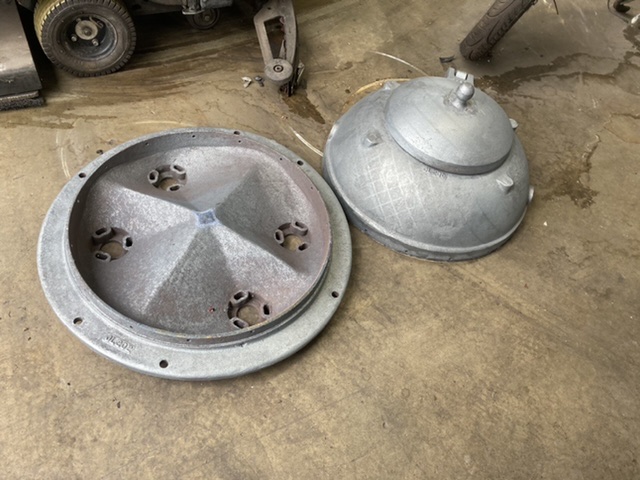

The sand dome castings are back from the blast shop. Need to fabricate a new sheet metal cylinder/barrel. The castings are in great shape, but the sheet metal is too far gone.

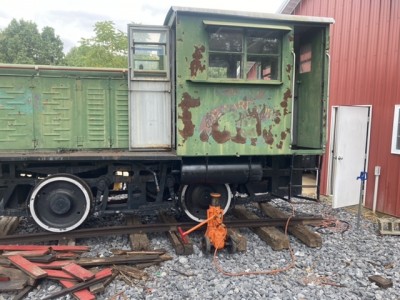

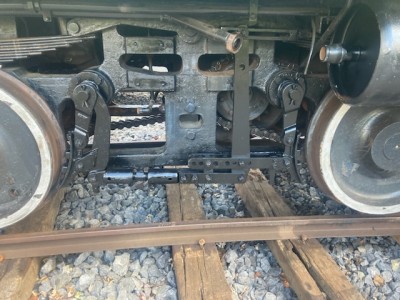

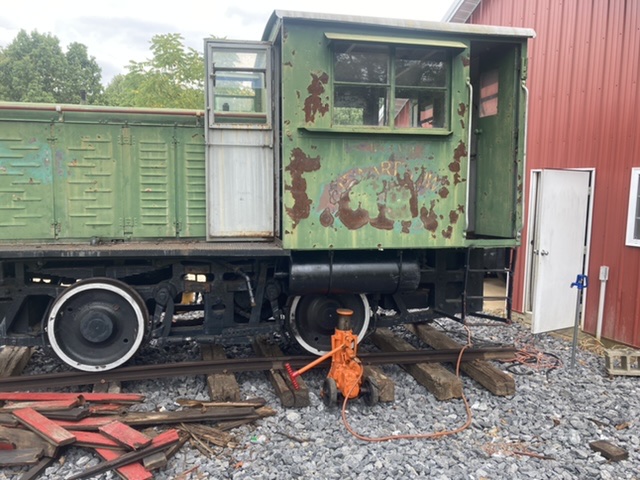

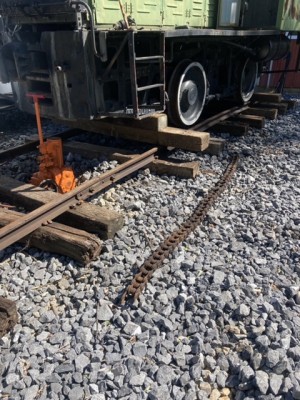

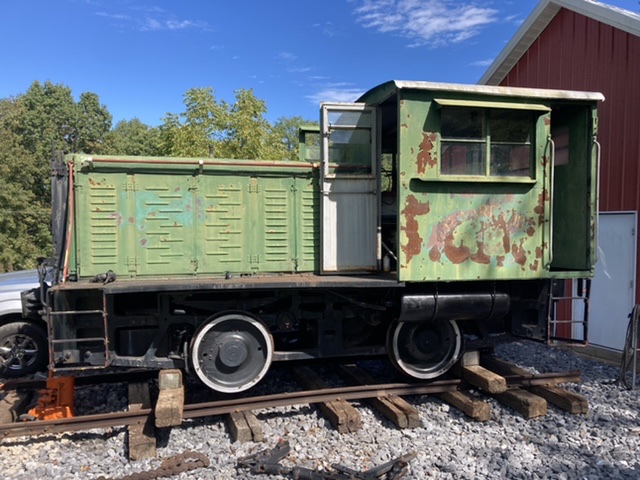

I jacked the loco up yesterday. It’s much nicer to work on the wheels, axles, sprockets, and chains with it up off the rails.

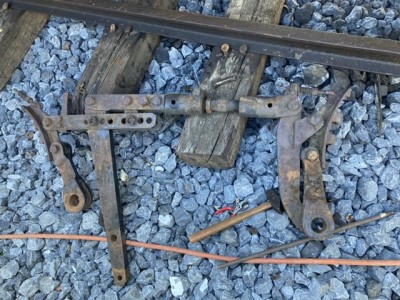

Both drive chains and both sides of the brake linkage are off and ready to rebuild.


Attachments:
D6FC1DF5-F331-437F-A300-842A5E3A45EB.jpeg [ 131.05 KiB | Viewed 1538 times ]
1538C5E9-DDEF-49A2-B8E4-9E594B2EC3A6.jpeg [ 117.62 KiB | Viewed 1538 times ]
9E8FD7D0-BC3C-4F55-B081-F3E58CBA2291.jpeg [ 177.56 KiB | Viewed 1538 times ]
80834C54-2784-4529-90CA-B39413DF22F2.jpeg [ 174.6 KiB | Viewed 1538 times ]
66174E0C-1DDF-46B7-A855-4A1CC9889759.jpeg [ 207.81 KiB | Viewed 1538 times ]
14B04435-BC77-47D7-A41D-A2A480230D75.jpeg [ 180.89 KiB | Viewed 1538 times ]
33C41CEB-719E-4D5C-AF73-24980D6D6C0A.jpeg [ 138.27 KiB | Viewed 1538 times ]
5DE06E51-56B3-4CF4-99C5-8257EBF014D7.jpeg [ 153.67 KiB | Viewed 1538 times ]
4548D750-4382-4AEB-B271-02394218E2ED.jpeg [ 153.93 KiB | Viewed 1538 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Sun Oct 16, 2022 4:15 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 21

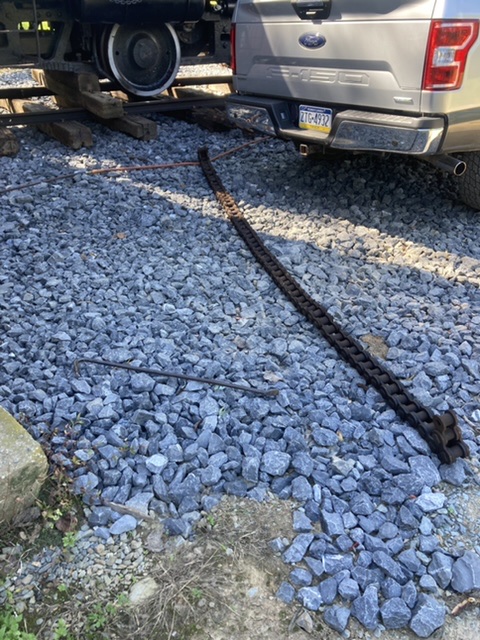

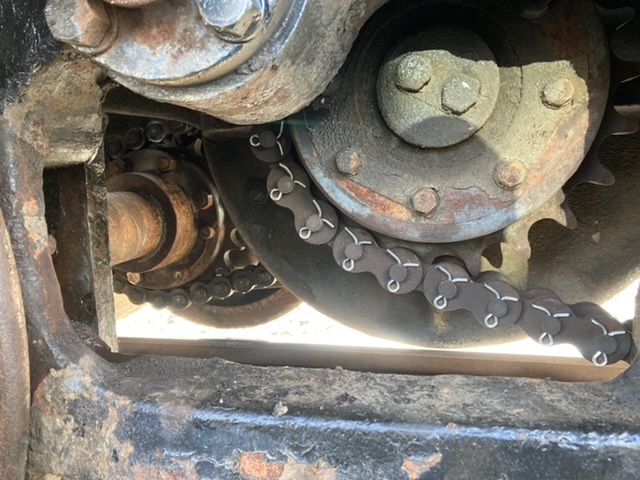

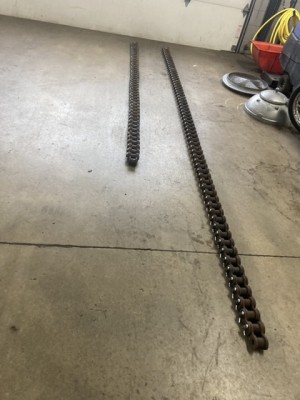

Here are some update pictures. The chains are repaired and reinstalled. I’m still working on getting the tension right. We took the linkage apart and freed up the radiator louvers one at a time. They haven’t moved in a very long time. I’m currently going though the brake linkage, piece by piece. I’ll post more pictures when they are done and reinstalled.


Attachments:
BEEDAFD0-8A1A-4B1F-85BA-2A73F7CEAF4C.jpeg [ 96.09 KiB | Viewed 1248 times ]
D80E3A9B-38D5-4FE0-85F3-4F412E8DF046.jpeg [ 159.45 KiB | Viewed 1248 times ]
778E2DFE-5207-4B05-B012-1F8E0B574028.jpeg [ 162.61 KiB | Viewed 1248 times ]
762A79C9-42CC-4B20-AE5E-765F568535AD.jpeg [ 133.41 KiB | Viewed 1248 times ]
EE34069D-24E5-4CC8-BBD7-4E4A87836A2D.jpeg [ 107.4 KiB | Viewed 1248 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Wed Nov 02, 2022 7:26 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 21

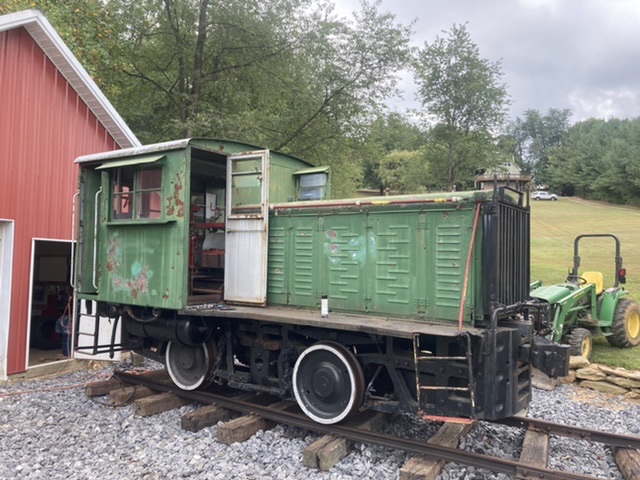

Small Halloween update.

My neighbor decided to decorate Little Mo for a party we were having over here. I think he did a nice job.

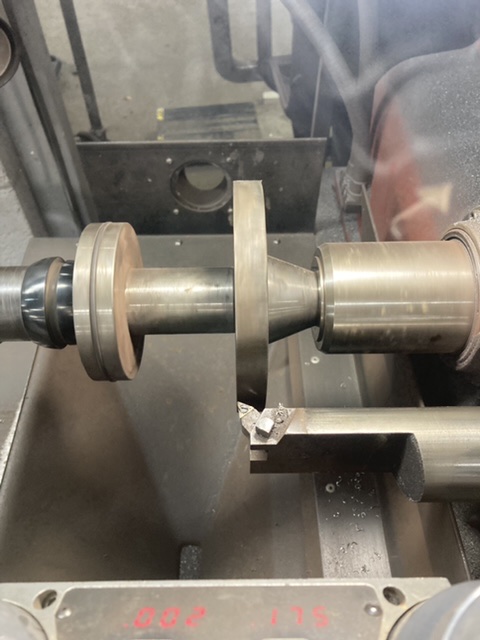

Also, I broke an air cylinder part and am working on making a new one.


Attachments:
18517648-4949-4312-AA70-DC6A1D2E95BE.jpeg [ 107.94 KiB | Viewed 976 times ]
53D6E10A-2C05-4FD9-A912-0378F3E92091.jpeg [ 157.03 KiB | Viewed 976 times ]
A2B8331B-C6EA-4BEF-B2D2-A5A6A6A8A1CA.jpeg [ 77.79 KiB | Viewed 976 times ]
804327BA-AEAF-4B52-B854-F9FB6B0ABE89.jpeg [ 96.46 KiB | Viewed 976 times ]
D6BF28D4-2858-4119-A581-4A78B8447719.jpeg [ 79.9 KiB | Viewed 976 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Wed Nov 02, 2022 9:26 pm

Joined: Sun Sep 05, 2004 9:48 am
Posts: 1102
Location: Byers, Colorado
That skeleton crew is looking good, maybe you've started a tradition. Now, if you just had some tank cars for the blood bank, embalming fluid, eyeball juice, etc...

_________________
Ask not what your locomotive can do for you,
Ask what you can do for your locomotive,

Sammy King


Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Sat Nov 12, 2022 6:30 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 21
QJdriver wrote:
That skeleton crew is looking good, maybe you've started a tradition. Now, if you just had some tank cars for the blood bank, embalming fluid, eyeball juice, etc...


Thanks Sammy. I would like to get them to help with our Halloween trains once #6 is back home at Stewartstown.

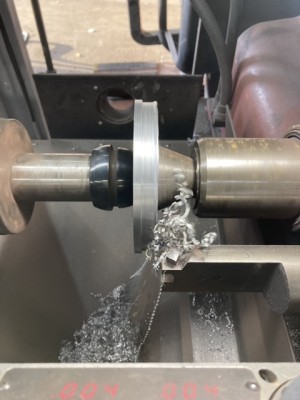

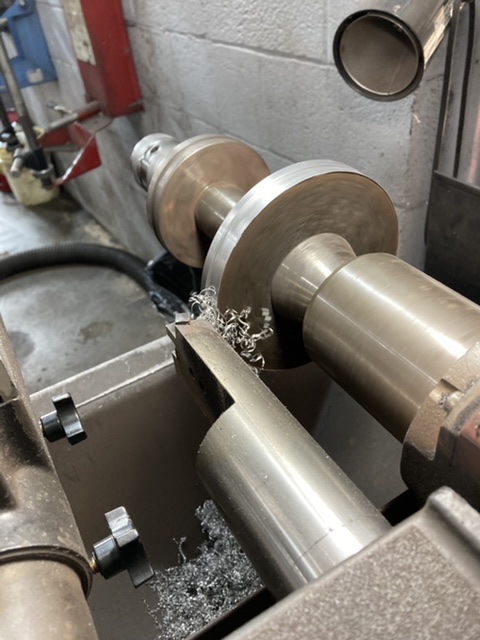

I managed to fabricate the brake part and the cylinder is reassembled. Almost done with the right side brake linkage. Will post more pics once it’s all installed.

Also got the front axle moved forward so the chain tension is correct.


Attachments:
06F3C3C9-2AC2-4160-BFC7-42555D03F477.jpeg [ 130.27 KiB | Viewed 625 times ]
FA323EF5-710F-45CD-9736-8B830F9DC381.jpeg [ 115.93 KiB | Viewed 625 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Sun Nov 13, 2022 12:05 am

Joined: Thu Oct 08, 2015 11:54 am
Posts: 1475
Location: New Franklin, OH
Kappy wrote:
Randy Gustafson wrote:
Does Plymouth 6 have a similar mechanical transmission like 9?

I got to inspect 9 and was astounded at the mechanical transmission (4 speed?) with a clutch pedal with about a 12" vertical throw and nearly took all your weight to hold down.

Other than the two-speed drive in a Climax A that's the darndest engine-to-wheels system I've personally seen in a locomotive.

The fact that 9 still runs with that LeRoi gas engine is just amazing, even if you have little respect for critters it's a pretty notable piece of equipment.


Randy.

Yep. It’s the same transmission. 4 speed with a built in reverser. There’s a secret to those clutch pedals. They are air assisted. When the engine is running, that clutch pushes in a lot easier. #6 has the same external dimensions as #9 just has less weight attached to the chassis. They both use 2.5” pitch chain to drive the axles. #6 is single width, and #9 has double width chains.

Interesting. Our 8 toner has the gigantic 4-speed that you see in a lot of Plymouths and there’s no air assist or evidence of once having it on the clutch. I have no clue when it was built as the serial number has been obliterated. It has been modified extensively and sports a Detroit 3-71 engine, Allison torque converter, different radiator and air brakes so dating it is impossible.

_________________
Eric Schlentner
Car Knocker, Gandy Dancer & Hog Jockey


Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Sun Nov 27, 2022 11:47 am

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 21
A little Sunday update.

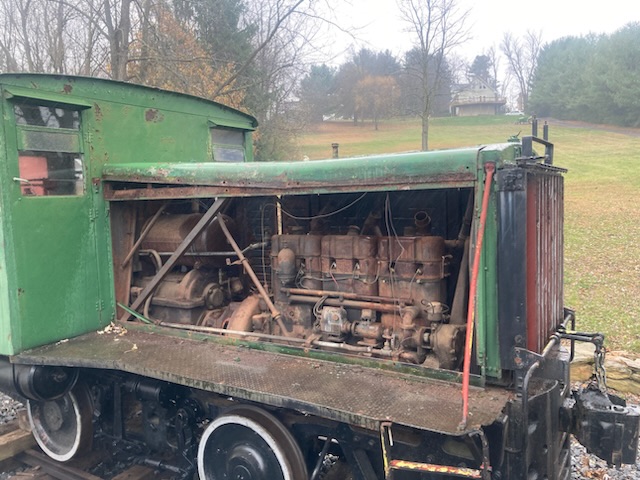

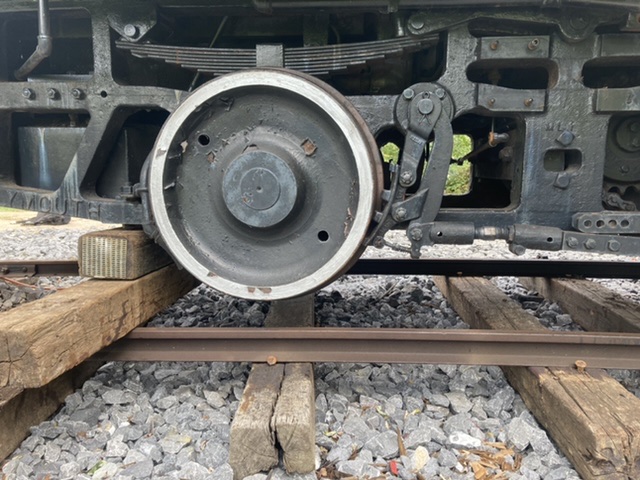

Both sides of the brake linkage are rebuilt and reinstalled. The next step is to remove the hood and get that old engine out of there. I got some of the hood disassembled before getting rained out today.


Attachments:
751AC9C6-F498-4FA2-8DC0-55C92F1D7A67.jpeg [ 133.03 KiB | Viewed 277 times ]
9319DBB9-D50D-4729-BEB5-B8101C05D85D.jpeg [ 132.31 KiB | Viewed 277 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Sun Nov 27, 2022 2:20 pm

Joined: Sun Aug 22, 2004 1:51 pm
Posts: 10897
Location: Somewhere east of Prescott, AZ along the old Santa Fe "Prescott & Eastern"
Engine being overhauled/rebuilt, or replaced?
