 Post subject: RPO Restoration
PostPosted: Tue Aug 27, 2013 10:30 am

Joined: Mon Aug 26, 2013 5:20 pm
Posts: 3
We are restoring a 1947 Railway Post Office car built by American Car Foundry and are needing some parts. Does anyone have a mail bag catcher arm that you might want to sell?
Thanks


Offline
 Profile

 Post subject: Re: RPO Restoration
PostPosted: Tue Aug 27, 2013 11:04 am

Joined: Sun Aug 22, 2004 7:58 am
Posts: 728
I can't help you, Charley, but they shouldn't be too hard to fabricate if anybody might have drawings.

We have a 1920 CNR RPO that is also missing its arms.

Would anybody have drawings of appropriate arms that they would be willing to scan or photocopy for these cars? I'm sure there lots of others out there as well.

Steve Hunter


Offline
 Profile

 Post subject: Re: RPO Restoration
PostPosted: Tue Aug 27, 2013 11:24 am

Joined: Mon Aug 26, 2013 5:20 pm
Posts: 3
Great idea Steve,
Does anyone have drawings of appropriate arms?
Thanks,
Charley


Offline
 Profile

 Post subject: Re: RPO Restoration
PostPosted: Tue Aug 27, 2013 12:10 pm

Joined: Mon May 24, 2010 10:22 am
Posts: 428
Try the Minnesota Transportation Museum, many many years ago they stripped several RPOs the were going to be scrapped.

-Hudson


Offline
 Profile

 Post subject: Re: RPO Restoration
PostPosted: Tue Aug 27, 2013 12:12 pm

Joined: Sun Aug 22, 2004 1:51 pm
Posts: 8354
Location: Baltimore, MD
The National Postal Museum in D.C. recreated the interior of an RPO about 15 years ago. I'm betting thay would have the relevant info/data if MTM doesn't have the hardware to spare.


Offline
 Profile

 Post subject: Re: RPO Restoration
PostPosted: Tue Aug 27, 2013 12:21 pm

Joined: Thu Aug 26, 2004 2:50 pm
Posts: 2094
Location: Northern Illinois
sbhunterca wrote:
I can't help you, Charley, but they shouldn't be too hard to fabricate if anybody might have drawings.

We have a 1920 CNR RPO that is also missing its arms.

Would anybody have drawings of appropriate arms that they would be willing to scan or photocopy for these cars? I'm sure there lots of others out there as well.

Steve Hunter


The Post Office Dept. specifications for the postal apartment and furnishings for a railway mail car were published in the 1922 Car Builder's Cyclopedia. It has drawings of most the equipment. This might be available on-line through Google Books, it has also been scanned and made available on CD from Raildriver for about $30:

http://www.raildriver.com/products/cyclopedias.php

These are high quality scans with a nice front end and a utility to print to scale; well worth the money.

I have no interest in Raildriver, just a satisfied customer.

ON EDIT: Whoops, I totally missed the fact that this was a Canadian restoration of a Canadian car, so the USPO spec.s aren't going to be the last word, although they may be similar. I wonder if the Canadian Gov't archives has a copy of similar Royal Canadian Mail specifications?

_________________
Dennis Storzek


Offline
 Profile

 Post subject: Re: RPO Restoration
PostPosted: Wed Aug 28, 2013 1:19 am

Joined: Fri Mar 18, 2005 1:27 pm
Posts: 362
Location: Milford,Mass
Hi

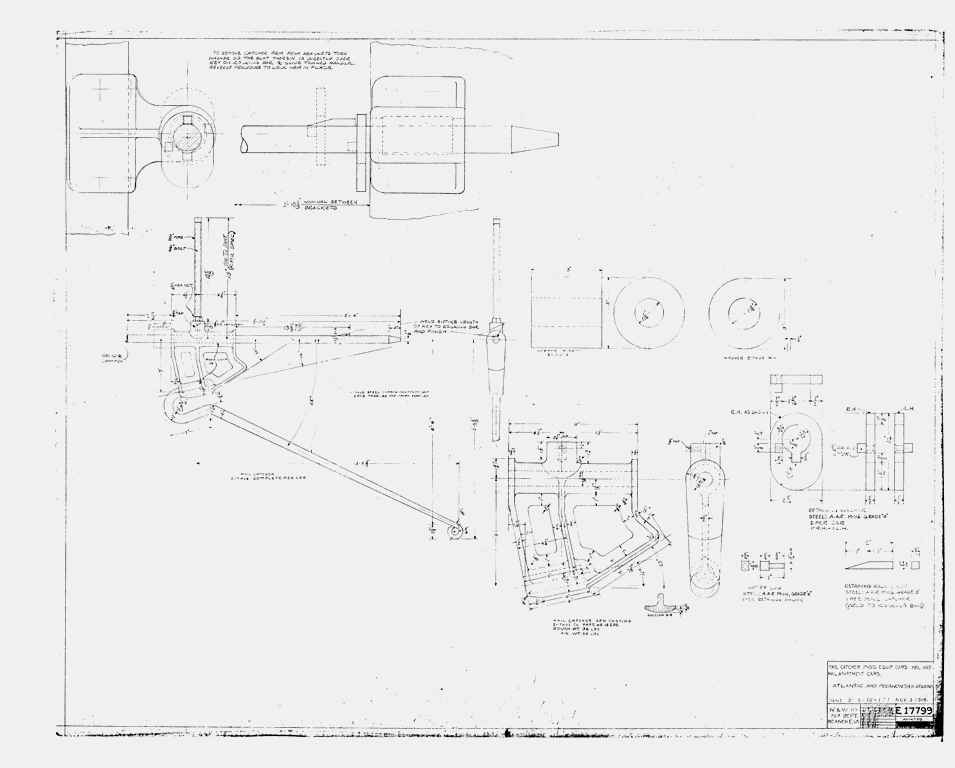

I found this drawing off the Web , from the N&W Historical society , Pat
Attachment:
NW-E17799_01-12-1967.gif [ 42.02 KiB | Viewed 1295 times ]


Offline
 Profile

 Post subject: Re: RPO Restoration
PostPosted: Wed Aug 28, 2013 9:28 am

Joined: Mon Aug 26, 2013 5:20 pm
Posts: 3
Thanks, Pat
The schematic is a great help!!
