 Post subject: Existing crosshead pumps
PostPosted: Thu Mar 06, 2014 3:18 pm

Joined: Wed Jan 28, 2009 4:30 pm
Posts: 130
Does anyone know how many locomotives in America have and use crosshead pumps and how many are vintage and how many are new or of recent manufacture?


Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Thu Mar 06, 2014 3:41 pm

Joined: Sun Aug 22, 2004 8:28 am
Posts: 2438
Location: Salt Lake City, Utah
The 4-4-0s at Golden Spike, 1970s reproductions have each at least one crosshead feadwater pump. I know the 119 also has a new manufacture Strasburg Railroad injector, based on the Sellers injector.

I don't know of Kloke's Levithian or the York have the pumps or just injectors.

_________________
--
David M. Wilkins

"They Love Him for the Enemies He Has Made!"


Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Thu Mar 06, 2014 4:05 pm

Joined: Sun Oct 19, 2008 12:58 pm
Posts: 1195
Location: Chicago USA

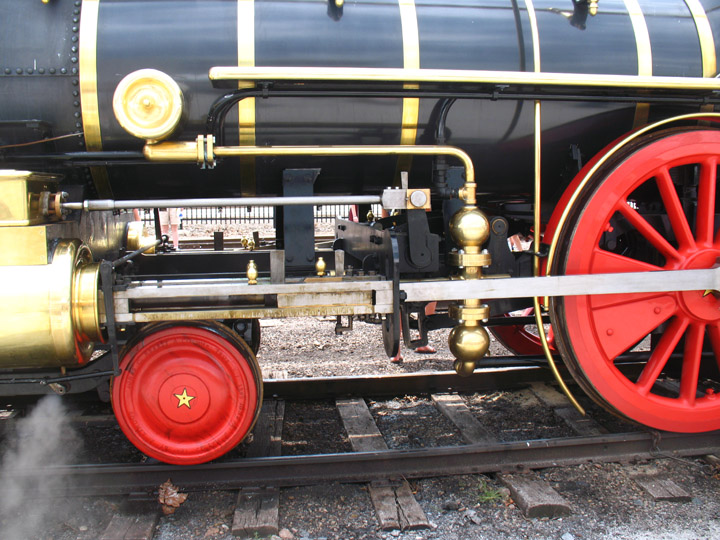

Relevant area of Leviathan. Possibly cosmetic only. If it's a working unit, I believe it is not in use. Others will know more.


Attachments:
IMG_3698m.jpg [ 153.97 KiB | Viewed 2217 times ]
Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Thu Mar 06, 2014 6:50 pm

Joined: Sun Aug 22, 2004 7:19 am
Posts: 5250
Location: southeastern USA
GENERAL still has the crosshead pumps, although an injector was added in the 1961 rebuild.

dave

_________________
"Techies never minded eating bits and jots of their work. They were grit and grease inside and out and could turn a pile of junk into a magical kingdom."

Andrea Hairston


Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Thu Mar 06, 2014 6:56 pm

Joined: Wed Jan 28, 2009 4:30 pm
Posts: 130
The pumps on Klokes engine, Leviathan, and the pumps on the York are dummys. I don't know about Promontory.


Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Thu Mar 06, 2014 7:32 pm

Joined: Fri Mar 05, 2010 3:41 am
Posts: 3030
Location: Inwood, W.Va.
The steam locomotives from Mexico at Walt Disney World are supposed to have working crosshead pumps, original to the locomotives at that. One wonders why a Mexican road would have ordered these at the late dates of construction of these engines (ca. 1900-1920).


Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Thu Mar 06, 2014 8:34 pm

Joined: Sat Jan 21, 2012 10:03 pm
Posts: 115
Location: Pennsylvania
J3a-614 wrote:
The steam locomotives from Mexico at Walt Disney World are supposed to have working crosshead pumps, original to the locomotives at that. One wonders why a Mexican road would have ordered these at the late dates of construction of these engines (ca. 1900-1920).


As far as I know the Disney locomotives were given their crosshead pumps during their rebuilds in the early 70s.


Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Thu Mar 06, 2014 8:56 pm

Joined: Sun Aug 22, 2004 2:46 pm
Posts: 537
Location: St. Louis, MO
I'll have to check but I think, after looking at some photos, that the Boston & Providence "Daniel Nason" of 1862 has one also. As this loco is inside connected it is underneath the boiler near the drive rods and not obvious. It is at the Museum of Transportation near St. Louis and is in the same state it was "restored" to for the Chicago World's Fair of 1893, a condition it was never in during its service life.

_________________
Ron Goldfeder
St. Louis


Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Thu Mar 06, 2014 9:49 pm

Joined: Sun Aug 22, 2004 9:54 am
Posts: 794
Location: NJ
With respect to the Leviathan image, it looks like there is a piece of pipe, painted black, under the running board, that sweeps down and goes into a polished brass tee. The tee is between the pump and the boiler check valve. Could this be the delivery pipe from an injector in the cab?


Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Thu Mar 06, 2014 10:57 pm

Joined: Mon Aug 23, 2004 2:14 pm
Posts: 457
Location: Essex, Connecticut, USA
Greetings:
The four former Ferrocarriles Unidos de Yucatan locomotives at Disney World (UdeY Nos. 251, 260, 274 & 275) were all equipped with crosshead pumps when I saw them in operation in Mexico in 1963 & 1964 and they were being used a good bit out on the road.
It is easy to see why UdeY stuck with them until the end: they always worked, regardless of the temperature of the water in the tender cistern and whether or not the injector was in good repair (and it gets pretty hot in Yucatan, as I recall, some of the water tanks had awnings).
For a lifting injector to function, the feed water must be cool enough to condense inside the injector when mixed with steam. If the feed water is too warm, even a brand new lifting injector won't work.
Crosshead pumps might leak at the piston packing, but they always put water in the boiler. Of course the water from the pump was cold (what ever temperature the water in the cistern was) where as water from a injector is warmed up a good bit as it mixes with the steam. So injectors are more efficient and not as hard on the boiler.
J.David


Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Thu Mar 06, 2014 11:29 pm

Joined: Mon May 24, 2010 10:22 am
Posts: 427
I believe the St. Paul & Pacific Railroad Co (GN) William Crooks #1 at the Lake Superior RR Museum still has a crosshead pump.

-Hudson


Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Fri Mar 07, 2014 3:27 pm

Joined: Sat Feb 13, 2010 8:50 pm
Posts: 148
Location: MD
Santa Cruz #3 Jupiter at the Smithsonian. Looks original, but if I remember it is just there for show now. Here is an old photo of it with the pump clearly visible.

http://spec.lib.vt.edu/imagebase/norfolksouthern/full/ns1294.jpeg


Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Fri Mar 07, 2014 5:02 pm

Joined: Tue Sep 14, 2004 7:52 am
Posts: 1235
Location: Strasburg, PA
The William Mason at the B&O Museum still has hers (or is it just one?), though they are disconnected. I'm sure others there have them as well.

_________________
"It was not easy to convince Allnutt. All his shop training had given him a profound prejudice against inexact work, experimental work, hit-or-miss work."
C. S. Forester

Strasburg Rail Road Mechanical Department


Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Fri Mar 07, 2014 6:59 pm

Joined: Fri Mar 03, 2006 1:45 am
Posts: 311
Location: Alaska
It would be interesting to study how the water circulates with the pump vs. an injector. I always wanted to know what kind of wear the Disney engines boilers received because at the time I worked there (2000-2004) the crews heavily favored running the pumps exclusively. Running the injector seemed like it was a task that was only used as a last resort.

_________________
John Hillier


Offline
 Profile

 Post subject: Re: Existing crosshead pumps
PostPosted: Sat Mar 08, 2014 12:05 am

Joined: Wed Aug 25, 2004 5:51 pm
Posts: 132
Location: Pittsburgh, PA
While waiting in line to see the cab of Leviathan at the Michigan Railfest, I asked one of the crew if that was a crosshead pump, and he confirmed it. When I asked if it worked, the answer was 'not really'. So they may be complete, but not usable/practical.


Offline
 Profile
