 Post subject: Porter Fireless records
PostPosted: Sat Mar 22, 2014 4:51 pm

Joined: Sun Sep 05, 2004 1:21 pm
Posts: 206
Location: Niagara Falls, Ontario

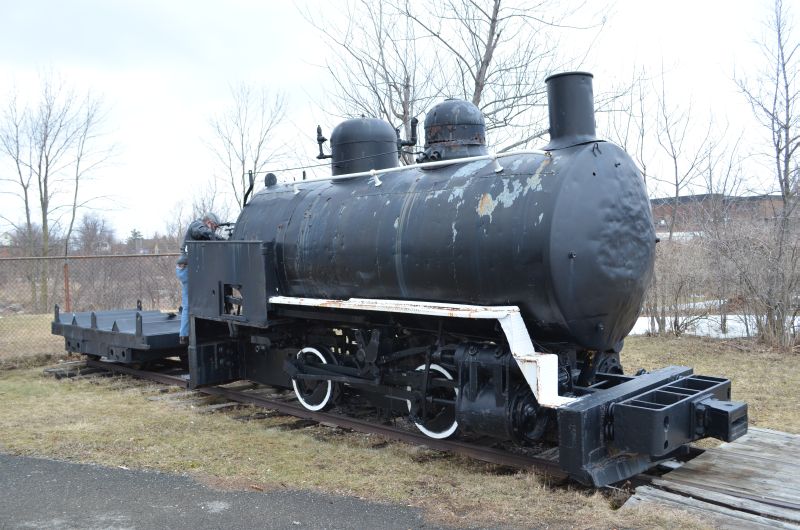

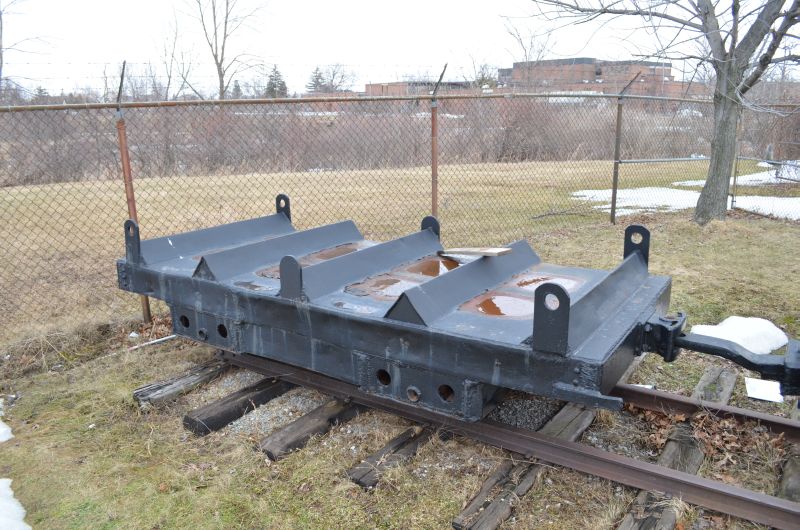

Does anyone know if there are any records on Porter Fireless Locomotives out there?? I'm looking for the weight of a specific locomotive. The locomotive in question is the one show, a 30" gauge fireless built by Porter (ser# 7441) in July 1943 and delivered to Atlas Steel in Welland, Ont. I'm looking for the weight of the unit. There is an ingot car as well, all very heavy steel, and no idea of the weight.

Any information would be very much appreciated.

Ken Jones
Niagara Railway Museum Inc.
www.nfrm.ca


Attachments:
porter.jpg [ 151.68 KiB | Viewed 1180 times ]
ingot.jpg [ 169.65 KiB | Viewed 1180 times ]
Offline
 Profile

 Post subject: Re: Porter Fireless records
PostPosted: Sat Mar 22, 2014 6:01 pm

Joined: Sun Aug 22, 2004 6:41 am
Posts: 166
Location: Stockton, New Jersey
I just checked my Porter record book and they list it at 20 tons for serial #7441. Hope that helps!!


Offline
 Profile

 Post subject: Re: Porter Fireless records
PostPosted: Sat Mar 22, 2014 6:10 pm

Joined: Sun Sep 05, 2004 1:21 pm
Posts: 206
Location: Niagara Falls, Ontario
Thanks Ron. I did end up finding out the same information on another site after I posted this, but it's very good to confirm what I found as well. She'll be an interesting move, that's for sure. Don't happen to have a picture of this unit in your book do you??

Ken


Offline
 Profile

 Post subject: Re: Porter Fireless records
PostPosted: Sat Mar 22, 2014 9:57 pm

Joined: Tue Aug 24, 2004 5:41 pm
Posts: 188
Location: Colfax,WI
Just bear in mind that "20ton" means 40,000 pounds up to the next class weight, probly 22 ton, which means up to 43999. We found out the hard way, shipping two 25 ton locos, figuring on 50,000 max and they ended up coming on at 53,900, overweight for the load.

_________________
Herb Sakalaucks
Chairman
Colfax Railroad Museum


Offline
 Profile

 Post subject: Re: Porter Fireless records
PostPosted: Sat Mar 22, 2014 10:31 pm

Joined: Sun Sep 05, 2004 1:21 pm
Posts: 206
Location: Niagara Falls, Ontario
Hmmm, ok, thanks Herb, appreciate that little tidbit of info. Hard to believe this thing even weighs in at that. Just trying to figure out what we can use to move it, looking at rolling it as opposed to lifting it.

Ken


Offline
 Profile

 Post subject: Re: Porter Fireless records
PostPosted: Sun Mar 23, 2014 2:59 am
User avatar

Joined: Fri Oct 01, 2004 2:46 pm
Posts: 1903
Location: Pac NW, via North Florida
30", huh? Odd width, I had no idea there was any track that gauge in that area...30", huh? Odd width, I had no idea there was any track that gauge in that area...

_________________
Lee Bishop


Offline
 Profile

 Post subject: Re: Porter Fireless records
PostPosted: Sun Mar 23, 2014 6:32 am

Joined: Sun Aug 22, 2004 6:41 am
Posts: 166
Location: Stockton, New Jersey
Ken - I am using Porter Steam Locomotives, a great hardcover book that was put out by the NMRA back in 2001. It appears that there were only 250 hardcover books published. It is a great book as I do a lot of builder's plate research. The book does not contain a photo of your locomotive, but there is one available. Contact the following: A. C. Kalmbach Memorial Library, 4121 Cromwell Road, Chattanooga, TN 37421. Hope that helps!


Offline
 Profile

 Post subject: Re: Porter Fireless records
PostPosted: Mon Mar 24, 2014 7:04 am

Joined: Fri Aug 27, 2004 7:57 am
Posts: 2355
Location: Faulkland, Delaware
The library at Hagley Museum has a huge amount of Porter information. Off the top of my head I think they have corporate files but I might be mistaken.

http://www.hagley.org/library

_________________
Tom Gears
Wilmington, DE

If you can't fix it with a hammer, you've got an electrical problem.


Offline
 Profile

 Post subject: Re: Porter Fireless records
PostPosted: Mon Mar 24, 2014 8:10 am

Joined: Mon Aug 23, 2004 9:18 am
Posts: 469
Location: Wall, NJ
As you look at the locomotive weight figures provided, verify if that is with or without water. Usually it includes the water and a fireless holds a lot of water versus a conventional steam locomotive. A gallon is roughly 8 pounds and my little 6 tonner (Porter #7197) held about 200 gallons or 1600 pounds. I would guess, based on the weight of this engine versus mine that you have at least three to four times the amount of water or something over 5000-6000 pounds of water so subtract this from the 20 or so tons that you feel this engine weighs in working order.

I was able to buy the Porter drawings for my little Porter from the MUSEUM OF SCIENCE & TECHNOLOGY, Ottawa, ONt., Canada.

J.R. May
Wall, NJ


Offline
 Profile
