 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Fri Sep 21, 2018 11:02 am

Joined: Sun Jan 11, 2009 5:31 pm
Posts: 267
softwerkslex wrote:
In the second picture of the smokebox front, are those air compressor mounts hinges to swing the compressor out? Why would you do that?


You mean putting the compressors on the smokebox front....?

Or the hinges in general...?


Tim W.


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Fri Sep 21, 2018 1:40 pm

Joined: Fri May 04, 2012 12:20 pm
Posts: 141
softwerkslex wrote:
In the second picture of the smokebox front, are those air compressor mounts hinges to swing the compressor out? Why would you do that?

So you can take off the whole smoke box front to access the front end.

Keith


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Fri Sep 21, 2018 7:12 pm

Joined: Thu Apr 14, 2005 9:34 pm
Posts: 2170
Location: Copenhagen, Denmark
Once you’ve disconnected all the plumbing, it seems just lifting them off would be a small job.

For that matter, why not just hinge the whole front with pumps attached.

_________________
Steven Harrod
Lektor
Danmarks Tekniske Universitet
Institut for Systemer, Produktion, og Ledelse


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Fri Sep 21, 2018 7:36 pm

Joined: Fri May 04, 2012 12:20 pm
Posts: 141
softwerkslex wrote:
Once you’ve disconnected all the plumbing, it seems just lifting them off would be a small job.

For that matter, why not just hinge the whole front with pumps attached.


Have you ever tried to lift one? :-)

Keith


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Sat Sep 22, 2018 12:35 pm

Joined: Tue Aug 22, 2017 11:27 am
Posts: 24
Ever tried to pickup about 600 pounds or so of dead weight that is above your waist and odd shaped. If you can do it then more power to you.


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Sat Sep 22, 2018 2:29 pm

Joined: Tue Aug 31, 2004 10:38 pm
Posts: 63
It looks like the bracket on the right side of the boiler swings just the compressor. The bracket on the left side is mounted to the smoke box front so that the bracket is also the hinge for the smoke box front.

My directions are as if you are in the engineers seat looking forward.

Ed


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Sat Sep 22, 2018 3:09 pm

Joined: Thu Apr 14, 2005 9:34 pm
Posts: 2170
Location: Copenhagen, Denmark
Well, we do have cranes in our shop for appliance removal. And an eye bolt screws nicely into the pump top for lifting.

_________________
Steven Harrod
Lektor
Danmarks Tekniske Universitet
Institut for Systemer, Produktion, og Ledelse


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Sat Sep 22, 2018 3:19 pm

Joined: Fri May 04, 2012 12:20 pm
Posts: 141
softwerkslex wrote:
Well, we do have cranes in our shop for appliance removal. And an eye bolt screws nicely into the pump top for lifting.

Yes....but you then have to set them down somewhere and there is a risk of damage. If they never leave the locomotive the risk is lessened.

Keith


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Sun Sep 23, 2018 9:26 am

Joined: Wed Mar 27, 2013 3:55 am
Posts: 99
Railbreaker wrote:
It looks like the bracket on the right side of the boiler swings just the compressor. The bracket on the left side is mounted to the smoke box front so that the bracket is also the hinge for the smoke box front.

Ed


This arrangement makes sense as to do smokebox/tube work without removing the pumps by crane.

Mike


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Sun Sep 23, 2018 11:21 am

Joined: Thu Aug 26, 2004 2:50 pm
Posts: 2349
Location: Northern Illinois
Few roundhouse in the US had cranes, certainly not over every stall... US steam was designed to be serviced at 'wild N woolly' facilities.

_________________
Dennis Storzek


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Sun Sep 23, 2018 6:06 pm

Joined: Sat Apr 01, 2006 5:19 pm
Posts: 428
Location: Bowie, MD
Even more so if you look at photos of the C&O 1300's on the very end branch lines they were purchased to run on. One and two stall buildings far into the hills of coal country.


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Wed Sep 26, 2018 6:58 am

Joined: Sun Aug 07, 2005 1:24 am
Posts: 72
Location: Michigan

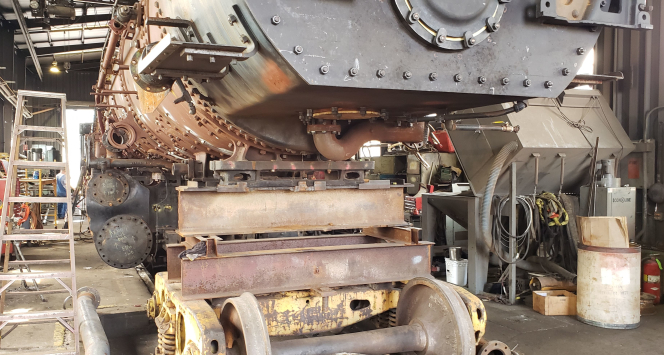

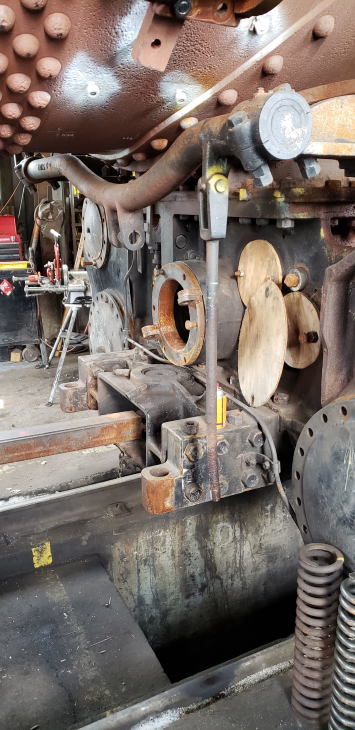

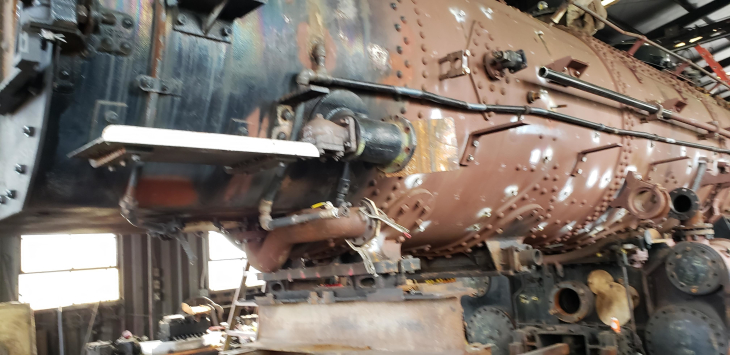

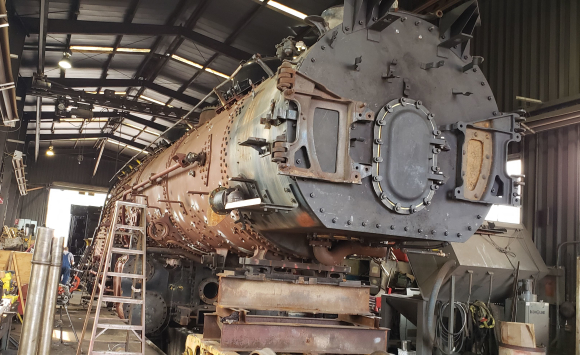

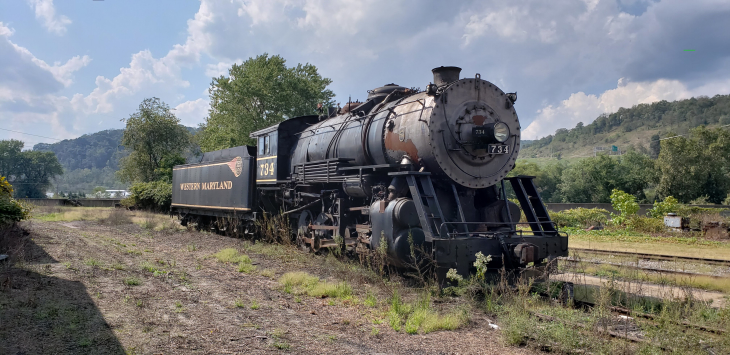

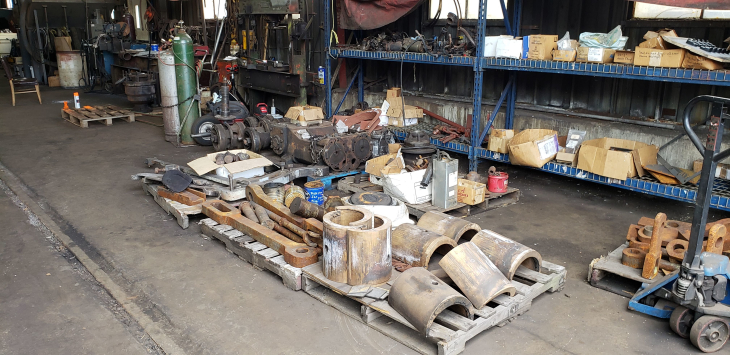

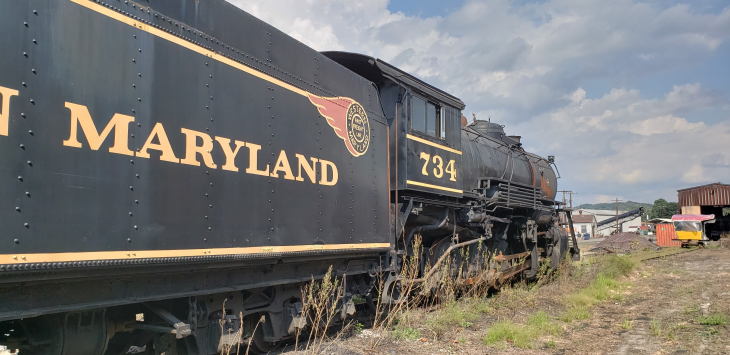

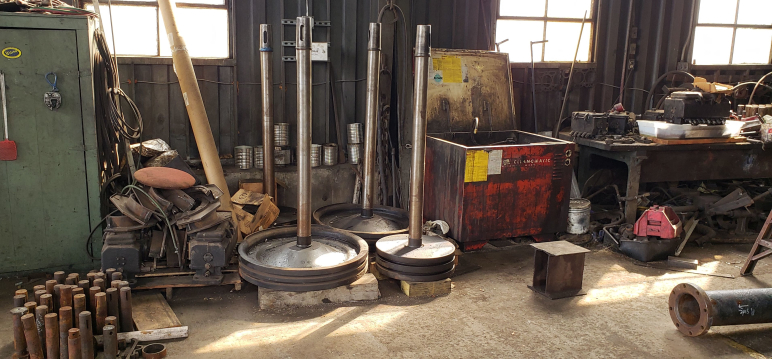

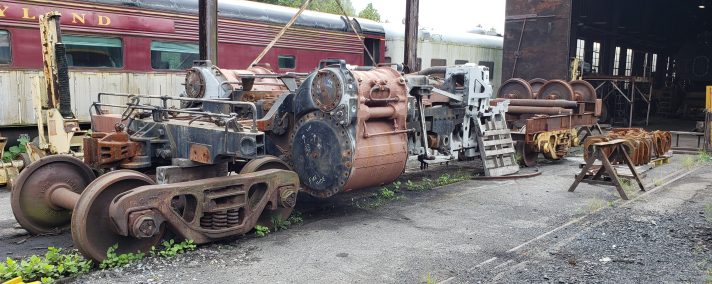

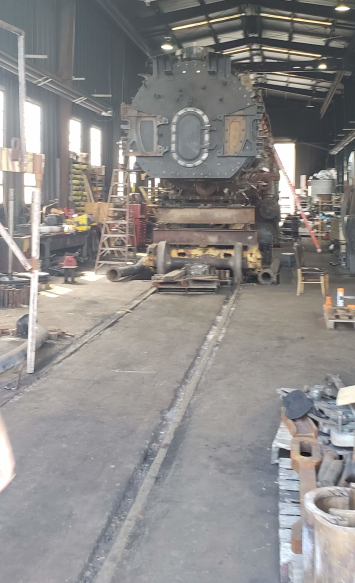

On Friday, September 21, a friend and I visited the shops of the Western Maryland Scenic RR and were quite pleased to see the continuing progress on the 1309. Here are some photos from our visit. Many thanks to the staff at WMSR for their hospitality. I was very encouraged by the progress they're making on this big locomotive and am very much looking forward to seeing it operate in the not too distant future..

Attachment:
20180921_143537.jpg [ 266.12 KiB | Viewed 1891 times ]


Attachment:
20180921_143555.jpg [ 277.93 KiB | Viewed 1891 times ]


Attachment:
20180921_143243.jpg [ 332.98 KiB | Viewed 1891 times ]


Attachment:
20180921_142657.jpg [ 205.63 KiB | Viewed 1891 times ]


Attachment:
20180921_144008.jpg [ 274.4 KiB | Viewed 1891 times ]


Attachment:
20180921_144015.jpg [ 303.88 KiB | Viewed 1891 times ]


Attachment:
20180921_144025.jpg [ 282.45 KiB | Viewed 1891 times ]


Attachment:
20180921_144028.jpg [ 277.23 KiB | Viewed 1891 times ]


Attachment:
20180921_144044.jpg [ 316.35 KiB | Viewed 1891 times ]


Attachment:
20180921_144056.jpg [ 314.46 KiB | Viewed 1891 times ]


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Wed Sep 26, 2018 7:04 am

Joined: Sun Aug 07, 2005 1:24 am
Posts: 72
Location: Michigan
Attachment:
20180921_144117.jpg [ 333.92 KiB | Viewed 1886 times ]


Attachment:
20180921_144130.jpg [ 344.59 KiB | Viewed 1886 times ]


Attachment:
20180921_144134.jpg [ 247.88 KiB | Viewed 1886 times ]


Attachment:
20180921_143251.jpg [ 293.58 KiB | Viewed 1886 times ]


Attachment:
20180921_135651.jpg [ 187.13 KiB | Viewed 1886 times ]


Attachment:
20180921_144357.jpg [ 292.64 KiB | Viewed 1886 times ]


Attachment:
20180921_144431.jpg [ 324.55 KiB | Viewed 1886 times ]


Attachment:
20180921_144635.jpg [ 275.84 KiB | Viewed 1886 times ]


Attachment:
20180921_151635.jpg [ 269.59 KiB | Viewed 1886 times ]


Attachment:
20180921_151740.jpg [ 305.67 KiB | Viewed 1886 times ]


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Tue Oct 02, 2018 2:44 pm

Joined: Thu May 24, 2012 1:37 pm
Posts: 1083
As noted in another post on RyPN: apparently 1309 has been 'first fired' -- presumably this means with appropriate water around the firebox sheets. I haven't seen any reference to a hydro test, or indication in the many photographs immediately above that the boiler is ready for pressure testing, so I look forward to a report on exactly what took place...

_________________
R.M.Ellsworth


Offline
 Profile

 Post subject: Re: WMRS former C&O 1309 Restoration / Progress
PostPosted: Tue Oct 02, 2018 2:51 pm

Joined: Sun Jan 11, 2009 5:31 pm
Posts: 267
It has been Hydro tested at least 2 times that I'm aware of. The latest was done just days before the fire was lit this morning.

Tim W.
