 Post subject: Steam Locomotive Driving Box (Care and Feeding)
PostPosted: Fri Sep 07, 2018 7:56 am

Joined: Sun Jun 17, 2007 8:03 pm
Posts: 951
Location: Warszawa, Polska
Does anyone here have experience with this type of driving box? If so, I have a few questions for you!

The plan here is to pull out the oil cellars and inspect the journals. At a cursory glance, it would seem that the oil cellar is only retained by the two large set screws, and once you back those off you should be able to pull the cellar out. Does this sound about right, or is there more to it?

Before I start taking it apart, I'd like to know what is in the cellars, and recommendations on proper lubricants.

And of course the big question is, can these cellars be removed in situ on a locomotive, or would other parts need to be removed in order to gain access?

Of course, any drawings, maintenance instructions etc. would be very welcome!


Attachments:

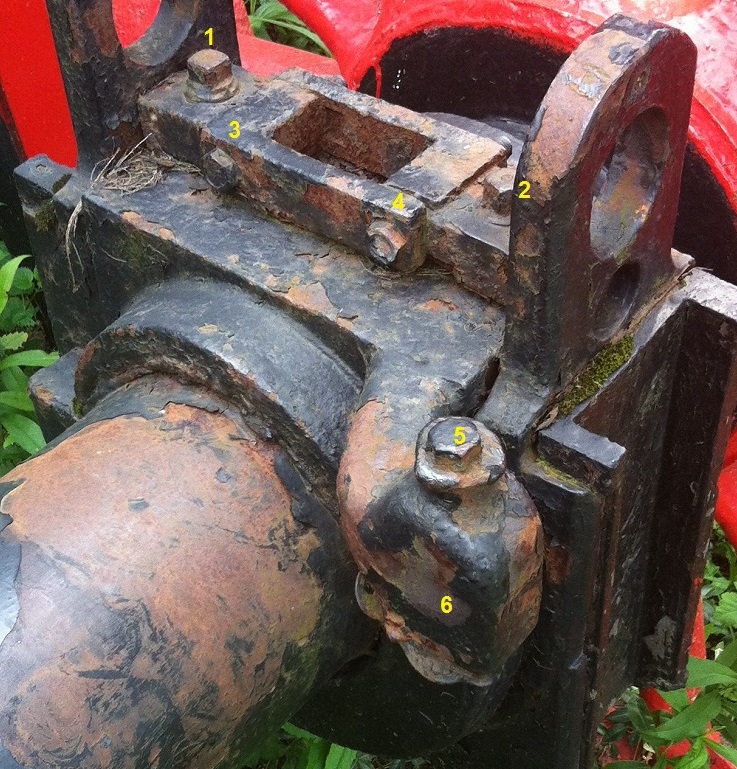

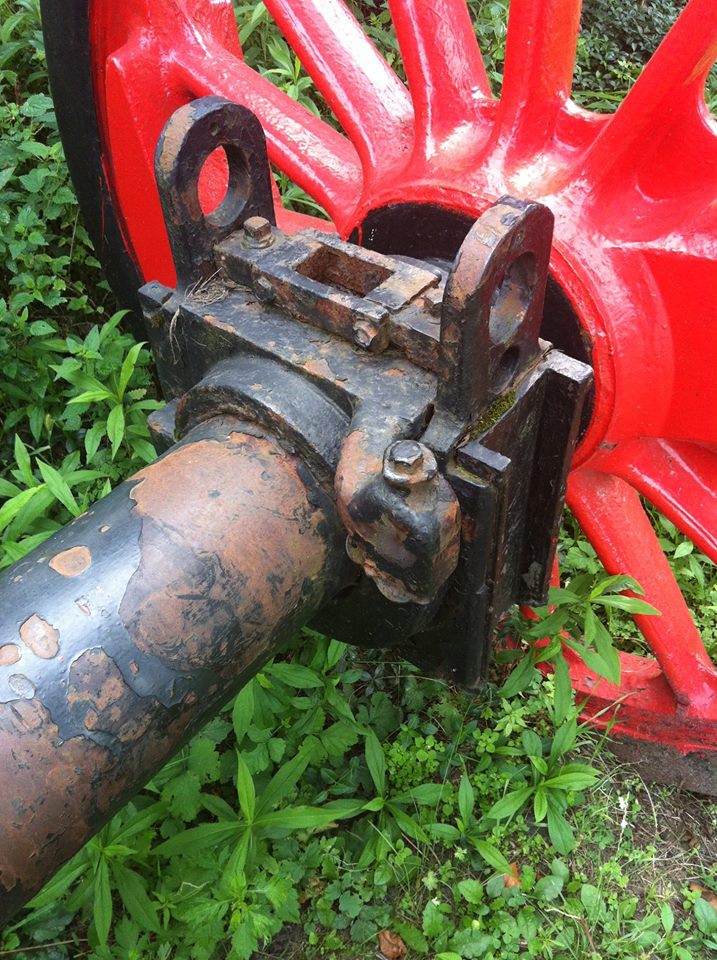

39589137_10156315583650609_6970127211487559680_n.jpg [ 167.11 KiB | Viewed 1429 times ]
39507330_10156315586210609_1509180632264081408_n.jpg [ 172.3 KiB | Viewed 1429 times ]
IMG_6134 - Copy.JPG
IMG_6134 - Copy.JPG [ 257.15 KiB | Viewed 1429 times ]

_________________
CNR 6167 in Guelph, ON or "How NOT To Restore A Steam Locomotive"
Offline
 Profile

 Post subject: Re: Steam Locomotive Driving Box (Care and Feeding)
PostPosted: Fri Sep 07, 2018 8:03 am

Joined: Sun Jun 17, 2007 8:03 pm
Posts: 951
Location: Warszawa, Polska

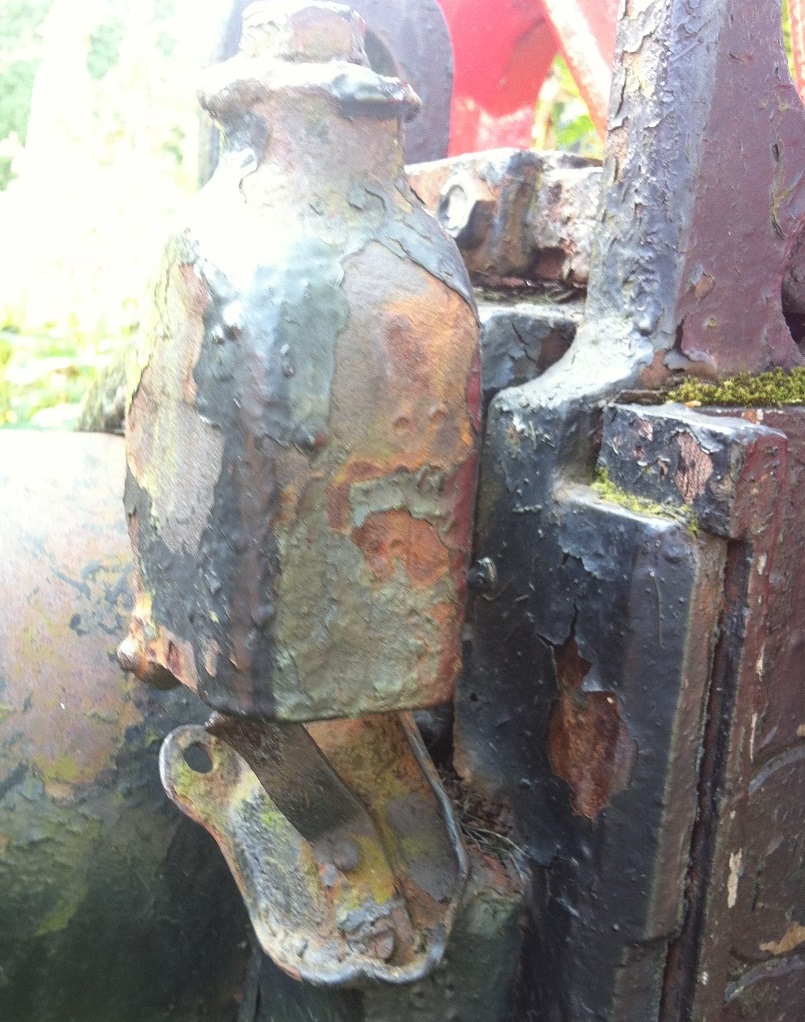

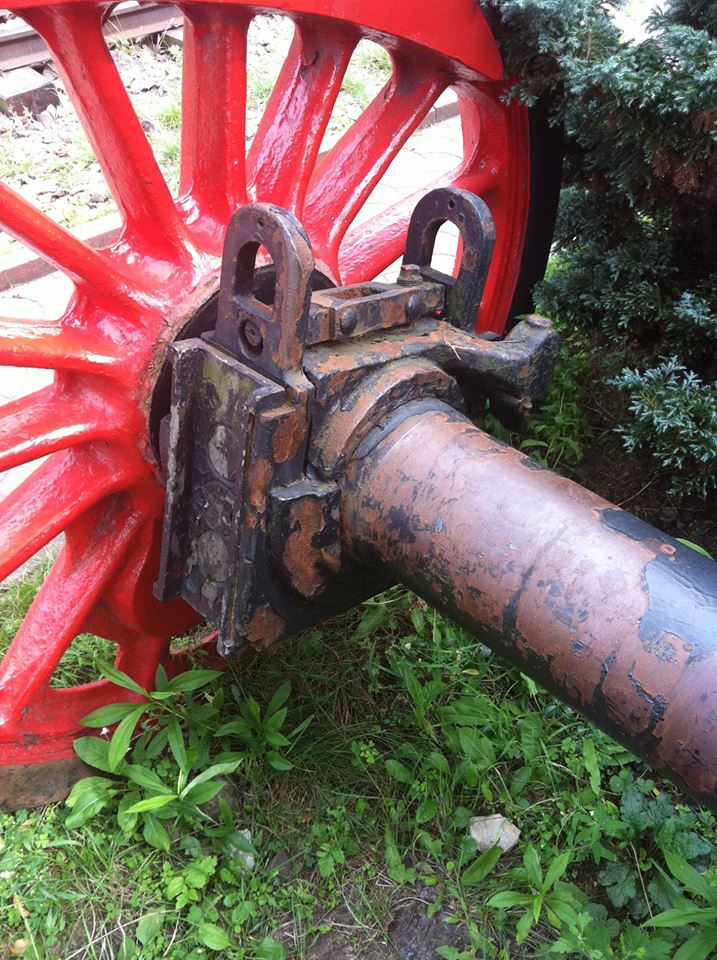

Some close-up photos.


Attachments:
copy2.JPG [ 312.8 KiB | Viewed 1425 times ]
IMG_6132 - Copy.JPG
IMG_6132 - Copy.JPG [ 216.41 KiB | Viewed 1425 times ]
IMG_6133 - Copy.JPG
IMG_6133 - Copy.JPG [ 334.82 KiB | Viewed 1425 times ]

_________________
CNR 6167 in Guelph, ON or "How NOT To Restore A Steam Locomotive"
Offline
 Profile

 Post subject: Re: Steam Locomotive Driving Box (Care and Feeding)
PostPosted: Fri Sep 07, 2018 9:36 am

Joined: Tue Sep 14, 2004 7:52 am
Posts: 1719
Location: Strasburg, PA
I'd say that you are on the right track.

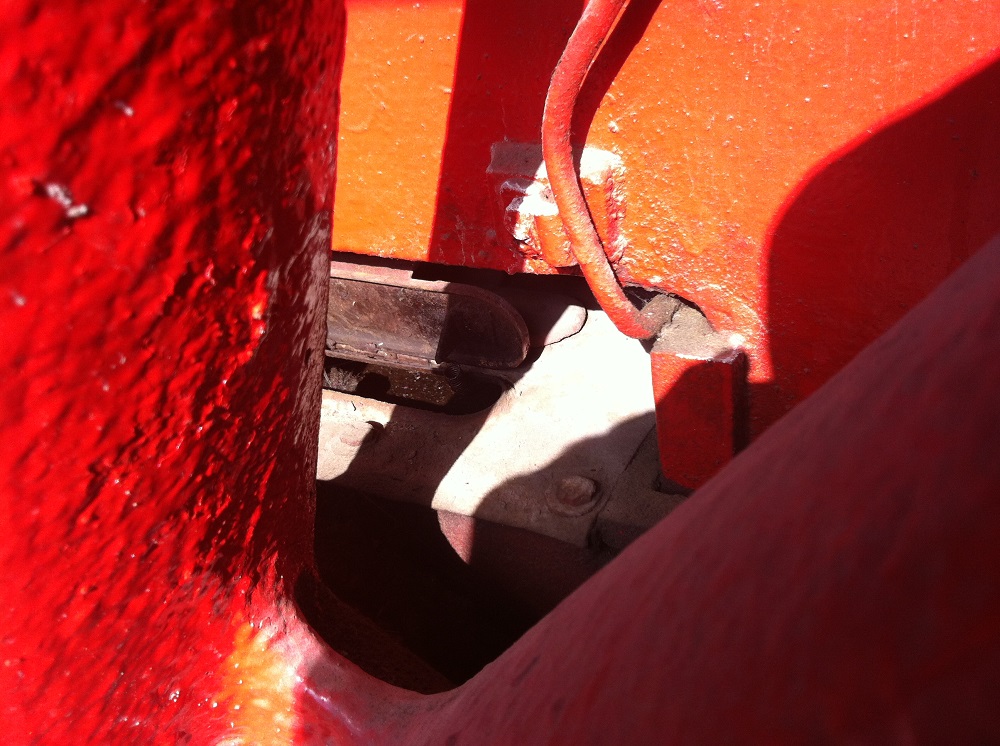

Attachment:
extrasmall20180411_140821.jpg [ 175.43 KiB | Viewed 1364 times ]

_________________
"It was not easy to convince Allnutt. All his shop training had given him a profound prejudice against inexact work, experimental work, hit-or-miss work."
C. S. Forester

Strasburg Rail Road Mechanical Department


Offline
 Profile

 Post subject: Re: Steam Locomotive Driving Box (Care and Feeding)
PostPosted: Fri Sep 07, 2018 1:59 pm

Joined: Sun Jun 17, 2007 8:03 pm
Posts: 951
Location: Warszawa, Polska
Kelly, how is that box lubricated?

_________________
CNR 6167 in Guelph, ON or "How NOT To Restore A Steam Locomotive"


Offline
 Profile

 Post subject: Re: Steam Locomotive Driving Box (Care and Feeding)
PostPosted: Fri Sep 07, 2018 4:35 pm

Joined: Tue Sep 14, 2004 7:52 am
Posts: 1719
Location: Strasburg, PA
That box now has an Armstrong oiler in the cellar.

_________________
"It was not easy to convince Allnutt. All his shop training had given him a profound prejudice against inexact work, experimental work, hit-or-miss work."
C. S. Forester

Strasburg Rail Road Mechanical Department


Offline
 Profile

 Post subject: Re: Steam Locomotive Driving Box (Care and Feeding)
PostPosted: Fri Sep 07, 2018 4:42 pm

Joined: Sun Jun 17, 2007 8:03 pm
Posts: 951
Location: Warszawa, Polska
Ok, so these bearings are much like plain bearings on rolling stock, in that they use cotton waste pushed up against the journal.

I'm guessing then that they would use the same oil as on rolling stock?

_________________
CNR 6167 in Guelph, ON or "How NOT To Restore A Steam Locomotive"


Offline
 Profile

 Post subject: Re: Steam Locomotive Driving Box (Care and Feeding)
PostPosted: Fri Sep 07, 2018 6:25 pm

Joined: Tue Sep 14, 2004 7:52 am
Posts: 1719
Location: Strasburg, PA
Yes.
