 Post subject: Diagrams of Commonwealth Tender Trucks?
PostPosted: Sat Mar 16, 2019 4:29 pm

Joined: Sun Aug 22, 2004 11:26 am
Posts: 4149
Location: Maine
Folks, we're looking for a diagram or diagrams, of two axle Commonwealth tender trucks. We are beginning to prep 470's tender trucks for disassembly, and we'd prefer to go in with a road map, so to speak.

If you have such diagrams, please contact us at newenglandsteamcorp@gmail.com .

Thanks for your continued good will and support!

Dick

_________________
"It's only impossible until it's done." -Nelson Mandela


Offline
 Profile

 Post subject: Re: Diagrams of Commonwealth Tender Trucks?
PostPosted: Mon Mar 18, 2019 12:09 pm

Joined: Fri Mar 18, 2005 1:27 pm
Posts: 457
Location: Milford,Mass
Hi Richard

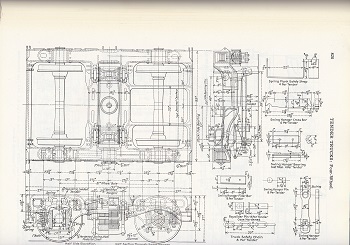

I found this in my 1930 locomotive cyclopedia, the truck diagram is the tender trucks used on the Central RR of New Jersey Tenders of their Pacifics.
The trucks are COMMONWEALTH TYPE.
I hope this helps, Pat WLS.
Attachment:
File comment: From My 1930 RR locomotive cyclopedia
IMG_20190318_0001.jpg#2.jpg [ 44.94 KiB | Viewed 1376 times ]


Offline
 Profile

 Post subject: Re: Diagrams of Commonwealth Tender Trucks?
PostPosted: Mon Mar 18, 2019 2:12 pm

Joined: Mon Aug 23, 2004 9:37 pm
Posts: 269
Location: Niles Canyon Railway, near Sunol, CA
S.P. 2472's current tender (12,000 gallons water, 4,000 gallons fuel oil, weight when full 247,000 lb) was delivered with 4-8-2 S.P. 4326 (Alco, 1924). It has Commonwealth 6-wheel trucks. We took them completely apart, using a portable A-frame we built from surplus 6" boiler tubing. We equipped the A-frame with manually operated chain hoists. We sandblasted everything to white metal. The cast-steel main truck frames clearly were not easy to cast with the technology of the early 1920s. We could see where the cores had shifted a little during casting. We checked suspicious areas for cracks by grinding smooth and using dye penetrant. We found a couple of cracks near the center plate. Cracks were fixed by carbon-arcing out the affected area, then welded by a certified pressure vessel welder.

- Doug Debs


Offline
 Profile

 Post subject: Re: Diagrams of Commonwealth Tender Trucks?
PostPosted: Mon Mar 18, 2019 5:44 pm

Joined: Wed Nov 23, 2016 7:05 pm
Posts: 204
Quote:
I found this in my 1930 locomotive cyclopedia, the truck diagram is the tender trucks used on the Central RR of New Jersey Tenders of their Pacifics.
The trucks are COMMONWEALTH TYPE.

That illustration is for the Top equalized trucks - shown in Fig. 1900 on the next page. 470 has the Drop equalized type, as in 1930's Fig. 1899. I checked the 1922, 1919 and 1912 editions and there are no Commonwealth drop drawings in any of them. I don't have the '25 or '27 editions and don't find them readily online, there may be something in those.

_________________
G.
______________________________________
Radio crackles - "What the #^(& did we just hit, over?"


Offline
 Profile

 Post subject: Re: Diagrams of Commonwealth Tender Trucks?
PostPosted: Mon Mar 18, 2019 7:59 pm

Joined: Sun Aug 22, 2004 11:26 am
Posts: 4149
Location: Maine
Pat: I am unable to enlarge the drawing which came through in your message. It appears we're looking at a different style of truck. Thanks everybody who responded. Still looking for the correct model.

_________________
"It's only impossible until it's done." -Nelson Mandela


Offline
 Profile

 Post subject: Re: Diagrams of Commonwealth Tender Trucks?
PostPosted: Tue Mar 19, 2019 8:06 am

Joined: Fri Mar 18, 2005 1:27 pm
Posts: 457
Location: Milford,Mass
Hi Richard
Please check your PM messages, Pat


Offline
 Profile

 Post subject: Re: Diagrams of Commonwealth Tender Trucks?
PostPosted: Tue Mar 19, 2019 2:23 pm

Joined: Wed Nov 23, 2016 7:05 pm
Posts: 204
Dick -

Strasburg 475 and OR&N197 both have Commonwealth drop equalized trucks like 470's. I'd contact Strasburg or the folks in Portland. 475 is in for it's 1472, so Kelly and his crew might have drawings out on the table already.

_________________
G.
______________________________________
Radio crackles - "What the #^(& did we just hit, over?"


Offline
 Profile

 Post subject: Re: Diagrams of Commonwealth Tender Trucks?
PostPosted: Sat Mar 23, 2019 8:08 am

Joined: Fri Mar 22, 2019 11:07 am
Posts: 2
Have you searched the N&WHS website? I'm not certain of exactly what you might be looking for, but it may well be there, seeing that 475 has the truck.

Ken Miller
