 Post subject: That Other Articulated - WMSR #1309 - Update photos 04/27/19
PostPosted: Sun Apr 28, 2019 6:30 am

Joined: Sun Jan 11, 2009 5:31 pm
Posts: 280
Earlier this week I asked for an opportunity to photograph the progress of Western Maryland Scenic Railroad #1309. This past Saturday morning the GM of the WMSR met me at the Ridgeley Shops to give me that opportunity.

A small crew was working Saturday on air brake plumbing for 31309.
I was told the locomotive is being readied for re-wheeling in the coming month. All of the driver's are in the shop either in front of or behind the locomotive. Pistons are in place. Noticed that a lot of the spring rigging is in place, along with all the lines coming off the lubricators. Both injectors are plumbed. Obviously missing is the air compressors on the smokebox front, but I would assume they are being kept off the locomotive until after it's lifted back on it's wheels.

I was told they are "on track" (pun) for operation in July.

Hard to take photos of such a large object in the tight confines of the old Western Maryland Carshop but here's 3 that I will offer up.

They are also working on the finishing touches to a boxcar with a large diesel generator skid unit installed that will become their new power car. The funding for Power Car came from a local business dedicated solely for that project.

Tim W.


Attachments:

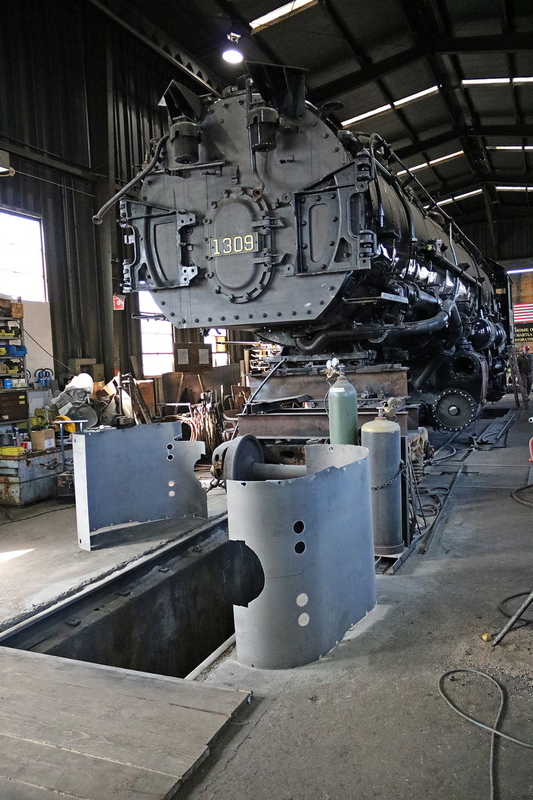

1309rypn03.JPG [ 290.2 KiB | Viewed 6679 times ]

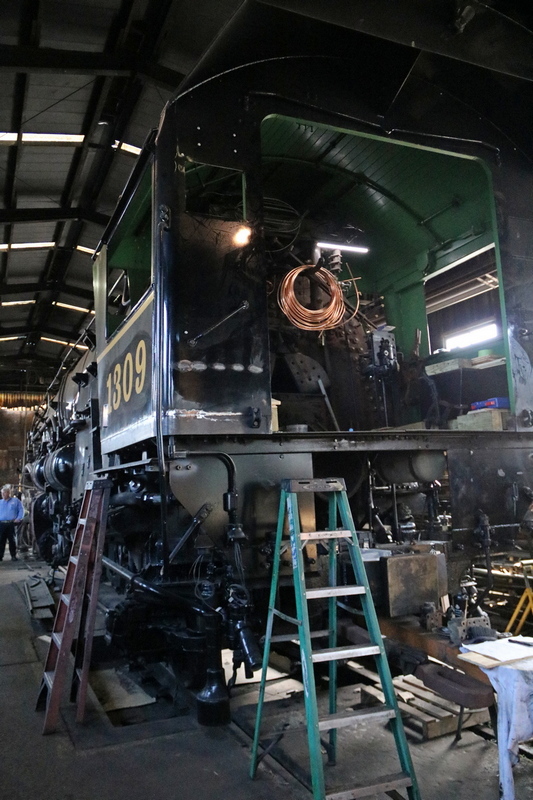

1309rypn02.JPG [ 263.46 KiB | Viewed 6679 times ]

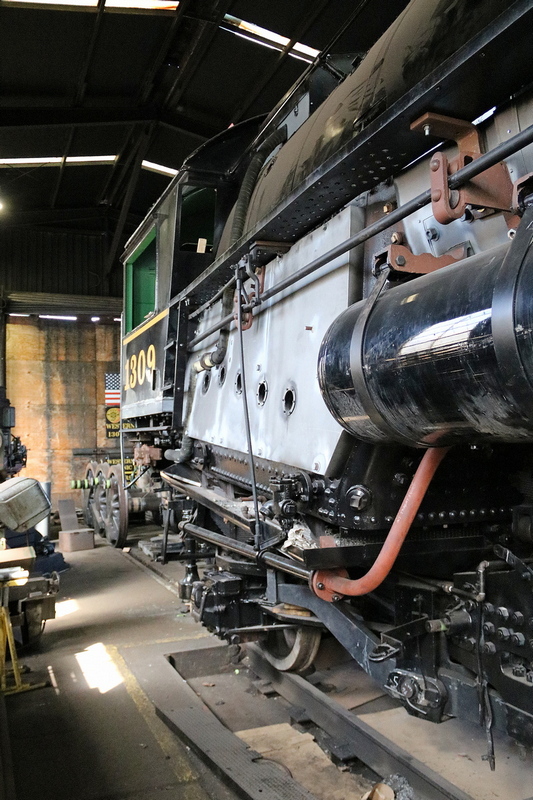

1309rypn01.JPG [ 290.72 KiB | Viewed 6679 times ]
Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Sun Apr 28, 2019 12:10 pm

Joined: Fri Mar 29, 2013 11:14 pm
Posts: 97
Were the firebox sides jacketed before, or is that new?


Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Sun Apr 28, 2019 1:23 pm

Joined: Sun Aug 22, 2004 5:58 pm
Posts: 947
thanks for sharing!


Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Sun Apr 28, 2019 2:12 pm

Joined: Wed Jun 26, 2013 7:20 pm
Posts: 193
It's great that 4014 will be rolling out soon, but 1309 is the articulated that I am really excited about and plan to go see and ride when she is ready. I just hope that they keep the ticket prices a little more reasonable that the $5K each!


Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Sun Apr 28, 2019 4:30 pm

Joined: Fri Jul 23, 2010 12:41 pm
Posts: 503
Location: Minneapolis, MN
train guy wrote:
It's great that 4014 will be rolling out soon, but 1309 is the articulated that I am really excited about and plan to go see and ride when she is ready. I just hope that they keep the ticket prices a little more reasonable that the $5K each!

I would assume that the Mississippi River will be the demarcation line between these two locomotives. Chances that BigBoy will ever cross the river or that 1309 will get off the WM line it's on are pretty small.

But stranger things have happened and we can always dream!


Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Tue Apr 30, 2019 2:56 pm

Joined: Thu May 24, 2012 1:37 pm
Posts: 1100
Quote:
"Were the firebox sides jacketed before, or is that new?"


There is a builder's photo at the end of Alfed Bruce's book on the American steam locomotive, but I can't find a Web version of it that I can post here. I recall that as built, the firebox legs were unlagged but overfire jet apparatus was provided.

There is a picture of 1309 in regular operation with unjacketed firebox here:
Image I don't know if the 'smoke consumer' system would be installed on the restored engine.

_________________
R.M.Ellsworth


Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Tue Apr 30, 2019 10:38 pm

Joined: Fri Mar 05, 2010 3:41 am
Posts: 3540
Location: Inwood, W.Va.
Another photo, from Trains magazine, with the engine looking very nice for the Chicago Railroad Fair. The firebox looks unlagged in the photo. C&O practice was to keep the firebox open, while WM lagged the boxes on much of its power.

And this engine is to be lettered for Western Maryland (Scenic) Railroad.



Last edited by J3a-614 on Wed May 01, 2019 12:33 am, edited 1 time in total.

Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Tue Apr 30, 2019 11:08 pm

Joined: Fri Mar 29, 2013 11:14 pm
Posts: 97
I'm guessing the overfire jets are going back on...judging by the holes in the firebox jacket. I'm used to narrow gauge steam....so the idea of jacketing a firebox seems a little silly. We just paint ours.

I do like that photo with the green boiler jacket. Sharp looking engine


Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Wed May 01, 2019 6:44 am

Joined: Thu Dec 01, 2011 11:23 am
Posts: 253
Location: Sheboygan County, Wisconsin
Looking at all of the work done, I feel this one is going to be well worth the wait.


Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Tue May 21, 2019 1:41 pm

Joined: Sat Nov 28, 2015 7:28 pm
Posts: 338
Location: Northern WV
Does anyone know if the July operation date is still feasible?

_________________
Roger Cole


Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Tue May 21, 2019 4:40 pm

Joined: Sun Aug 22, 2004 4:45 pm
Posts: 122
Location: Home of the Terrapins
From my understanding, it's been pushed back until September.


Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Wed May 22, 2019 12:39 am

Joined: Thu May 06, 2010 10:30 pm
Posts: 712
Location: Bucks County, PA
Dave Albright wrote:
From my understanding, it's been pushed back until September.


So the WMSR website is currently undergoing maintenance/building a new webpage. However, the ticketing link still has Saturday, July 20 as the first trip with 1309. So my question - where did you hear this information?

_________________
Big Jim Video Productions
Morrisville, PA

http://www.bigjimvideo.com/home.html
http://www.youtube.com/user/bigjim4life


Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Wed May 22, 2019 1:46 am

Joined: Fri Mar 29, 2013 11:14 pm
Posts: 97
Never set a date until till you are 99% sure you can make it. Clearly they didn't learn that Lesson, and now that they missed another date......it will haunt them for a long time.


Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Wed May 22, 2019 5:44 pm

Joined: Sun Aug 22, 2004 4:45 pm
Posts: 122
Location: Home of the Terrapins
bigjim4life wrote:
Dave Albright wrote:
From my understanding, it's been pushed back until September.


So the WMSR website is currently undergoing maintenance/building a new webpage. However, the ticketing link still has Saturday, July 20 as the first trip with 1309. So my question - where did you hear this information?


Username Borden Tunnel on the O Gauge Forum. And he seems to know about these things.


Offline
 Profile

 Post subject: Re: That Other Articulated - WMSR #1309 - Update photos 04/2
PostPosted: Fri Jun 07, 2019 10:14 am

Joined: Thu May 06, 2010 10:30 pm
Posts: 712
Location: Bucks County, PA
Guess what? Guess, go ahead, I'll wait:

https://www.times-news.com/news/local_n ... ZftHT3kJGA

Now, they find that not only do they need to postpone the July debut - they now need an extra $150K for tie replacement and trackwork in order to accommodate the engine.

Can't make this stuff up, folks...

_________________
Big Jim Video Productions
Morrisville, PA

http://www.bigjimvideo.com/home.html
http://www.youtube.com/user/bigjim4life
