 Post subject: Bet you never saw a water turbine speedometer before
PostPosted: Sat Jun 27, 2020 9:08 pm

Joined: Thu Apr 14, 2005 9:34 pm
Posts: 2386
Location: Copenhagen, Denmark
We are approaching the end of restoration of Helsingør Hornbækbanen number 4 https://veterantoget.dk/materiel/damplokomotiver/hhb4/. One of those pesky modern requirements is that we have a speedometer. HHB 4 did not originally have one, but the Danish railways did from the turn of the 20th century. We had parts from a Danish railways G locomotive for a water speedometer. These are being installed to satisfy our requirement for a speedometer. The speedometer consists of a turbine, belt driven from a drive axle, and a water column in the cab.


Attachments:

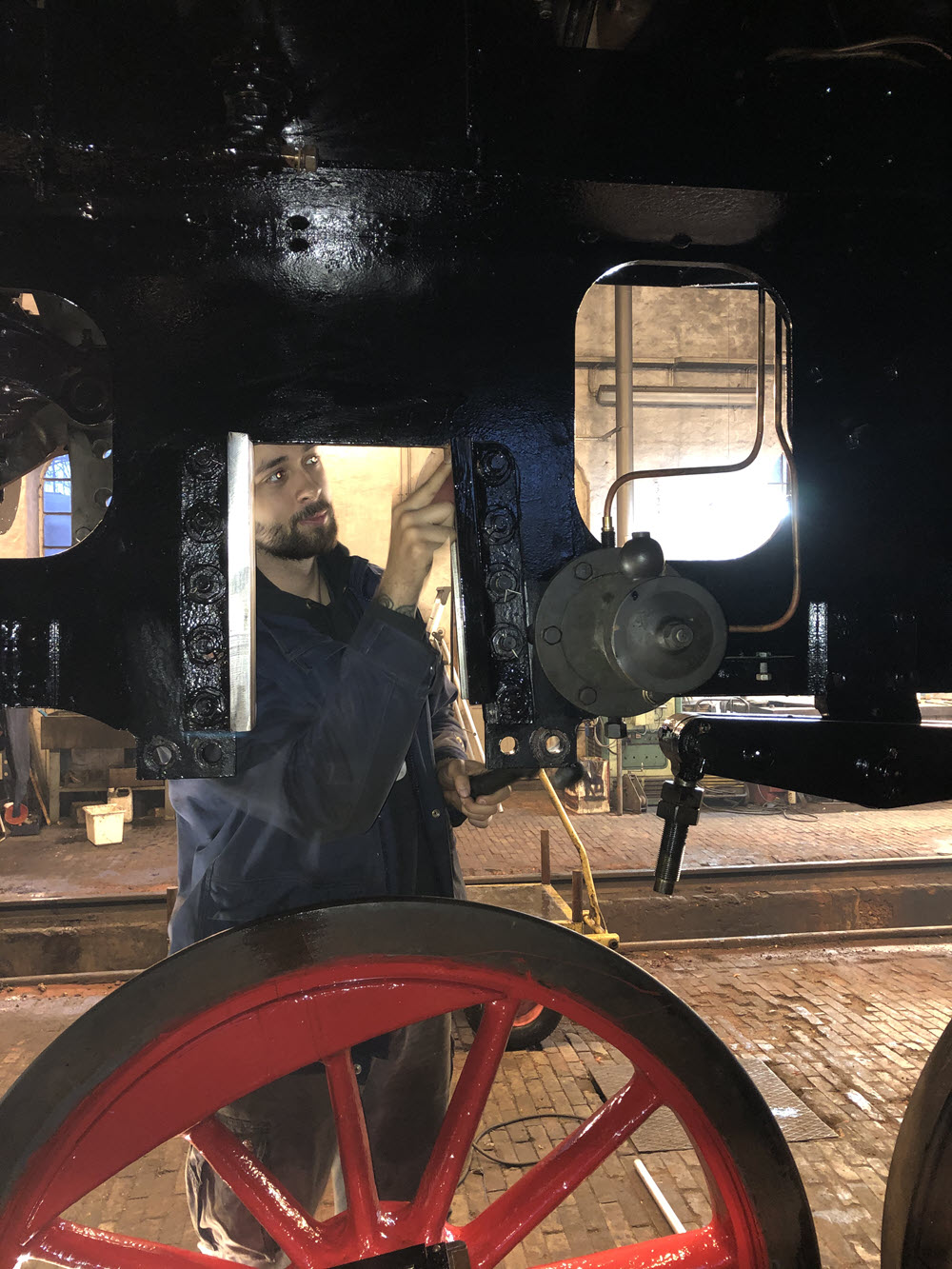

File comment: Water turbine mounted inside frames for belt drive from driving axle for supply to speedometer
HHB 4 water turbine.jpg
HHB 4 water turbine.jpg [ 264.76 KiB | Viewed 829 times ]

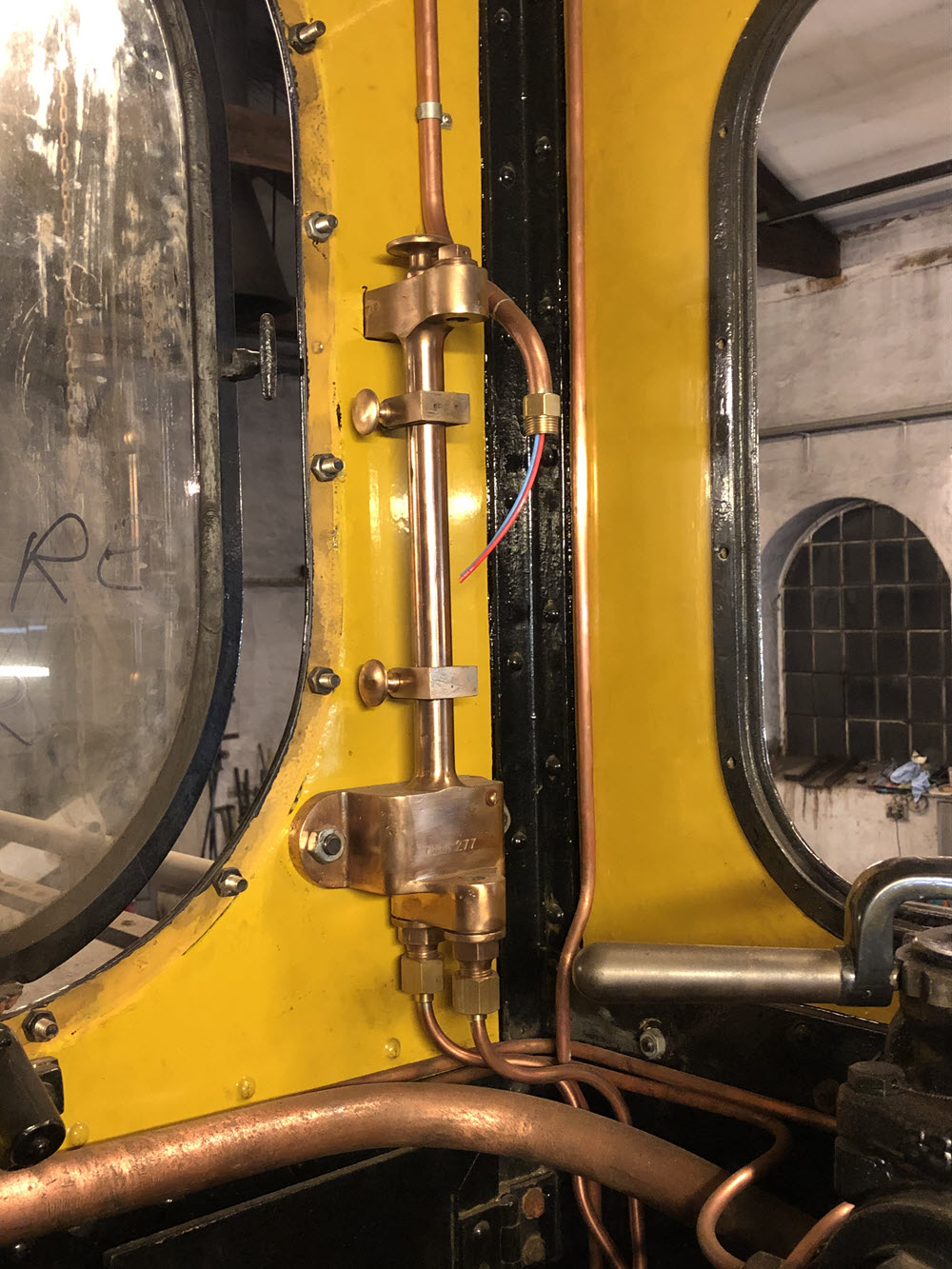

File comment: In cab water column for speedometer
Speedometer cab water column.jpg
Speedometer cab water column.jpg [ 256.3 KiB | Viewed 829 times ]

_________________
Steven Harrod
Lektor
Danmarks Tekniske Universitet
Offline
 Profile

 Post subject: Re: Bet you never saw a water turbine speedometer before
PostPosted: Sat Jun 27, 2020 10:55 pm

Joined: Sun Apr 02, 2017 3:13 am
Posts: 64
GPS speedos unacceptable?


Offline
 Profile

 Post subject: Re: Bet you never saw a water turbine speedometer before
PostPosted: Mon Jun 29, 2020 6:50 pm

Joined: Wed Jun 13, 2012 10:38 pm
Posts: 303
Location: Copenhagen, Denmark
Oh they definitely are, but they just dont fit into the interior of a 1910's steam locomotive that well. The parts are approved under the government body that regulates us, and they would have continued to sit on a shelf if we didnt decide to use them, so the decision was taken of "why not!?".

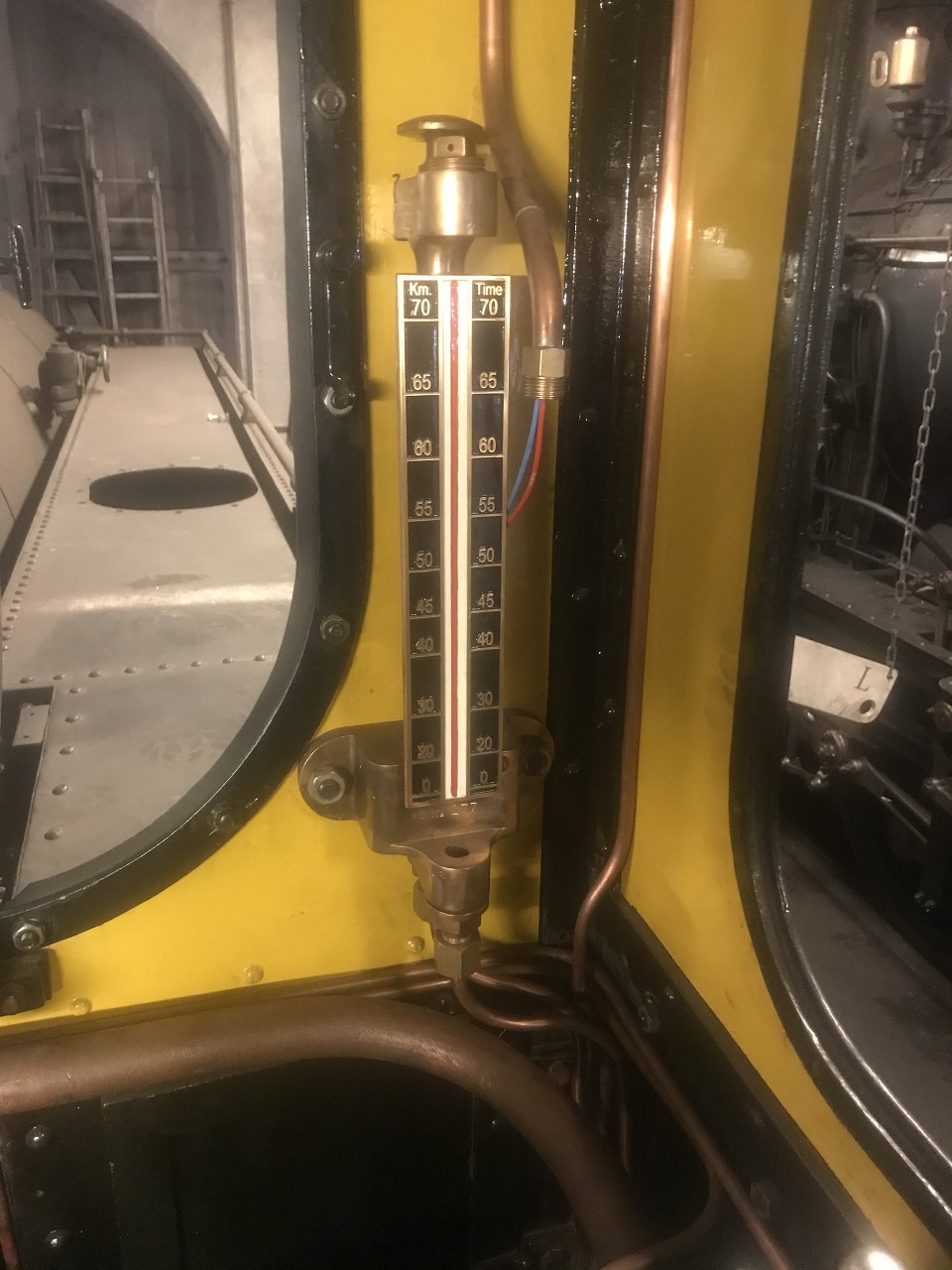

The choice was made before I became the project leader, but I will admit to being an enabler after the fact. We didn't have a speed-o plate with the right speed range on it, so I copied drawings for the right one in cad and then cast the new plate off of a 3d print.


Attachments:
IMG_7667.jpg [ 309.73 KiB | Viewed 328 times ]

_________________
Stuart Harrod
Steam shop machinist
Nordsjællands Veterantog
Veterantoget.dk
