 Post subject: Eagle Lake Locos, Maine
PostPosted: Sat Jul 02, 2022 1:06 pm

Joined: Sun Aug 22, 2004 11:26 am
Posts: 4547
Location: Maine

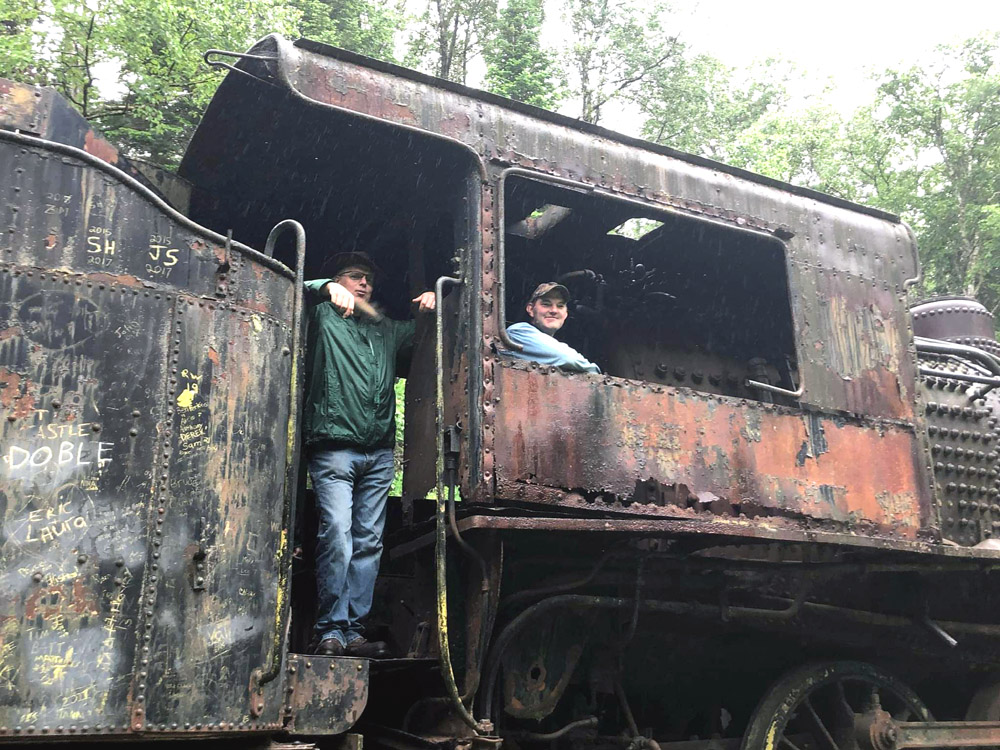

This is a short photo update on the Eagle Lake locos in the Allagash of Maine. All the images are courtesy of my "adopted son", Jeremy, seen sitting in the cab with brother, John (John is not an adopted son).

The guys went up in early spring, just after most ice was out. It is a wet area. You can drive in, almost up to the locomotives, but hiking the old lumber railway is wet and hazardous. Jeremy reported the mosquitoes "could carry away a small child". He and John were almost entirely clothed, including around the wrists, and soaked in "Ben's 100".

In recent years, this place has become far more accessible, however it is miles from the nearest phone, wrecker service, and convenience store. Get it?


Attachments:
File comment: John treks in on the volunteer built boardwalk. Tough soled waterproof boots are really needed here.
0618221422.jpg [ 353.23 KiB | Viewed 3429 times ]

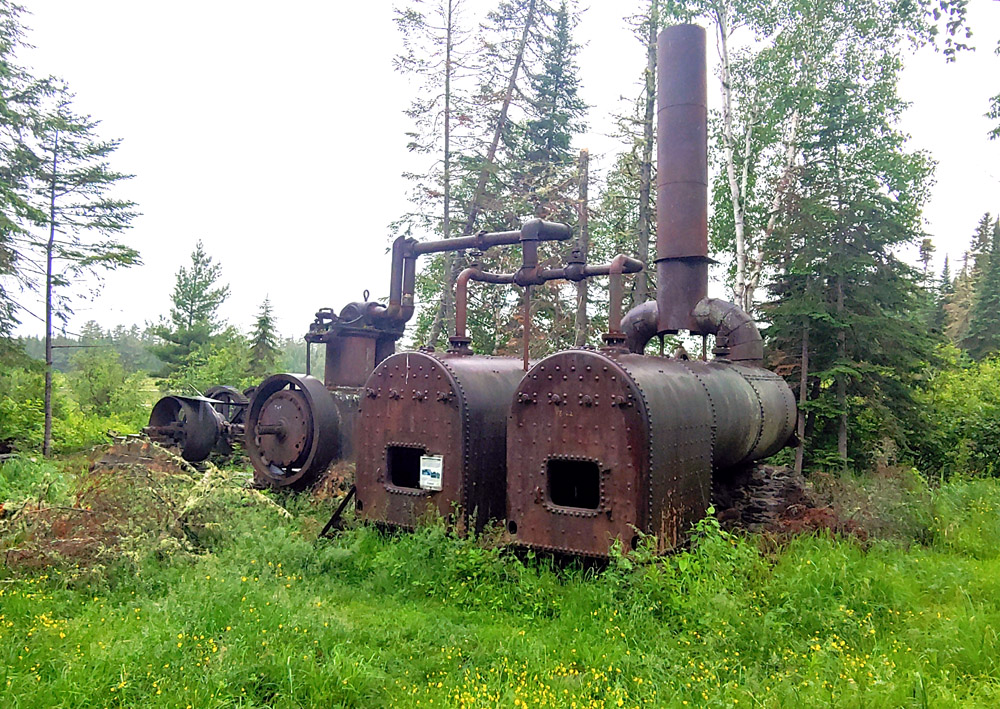

File comment: When this was an active lumbering site, these static boilers provided winch power and pumps.
0618221352_HDR.jpg [ 366.46 KiB | Viewed 3429 times ]

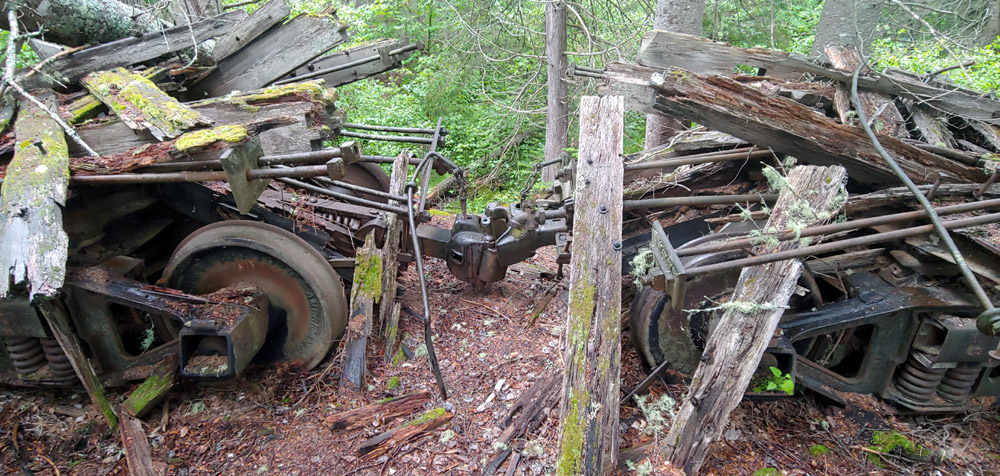

File comment: All manner of trucks and pulp wood cars remain scattered throughout the woods, as well as switch stands and similar hardware. This is a state protected historical site, so nothing may be removed.
0618221328.jpg [ 277.57 KiB | Viewed 3429 times ]

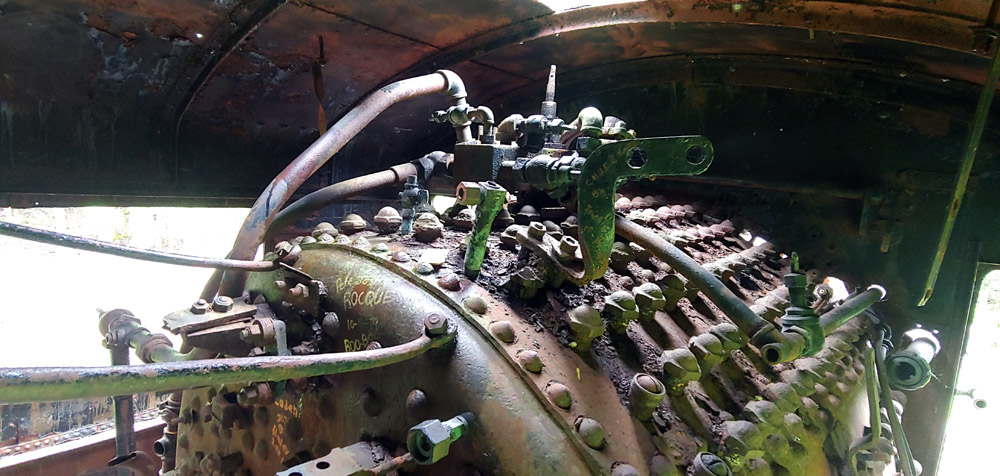

File comment: Staybolts look good!
0618221337.jpg [ 185.17 KiB | Viewed 3429 times ]

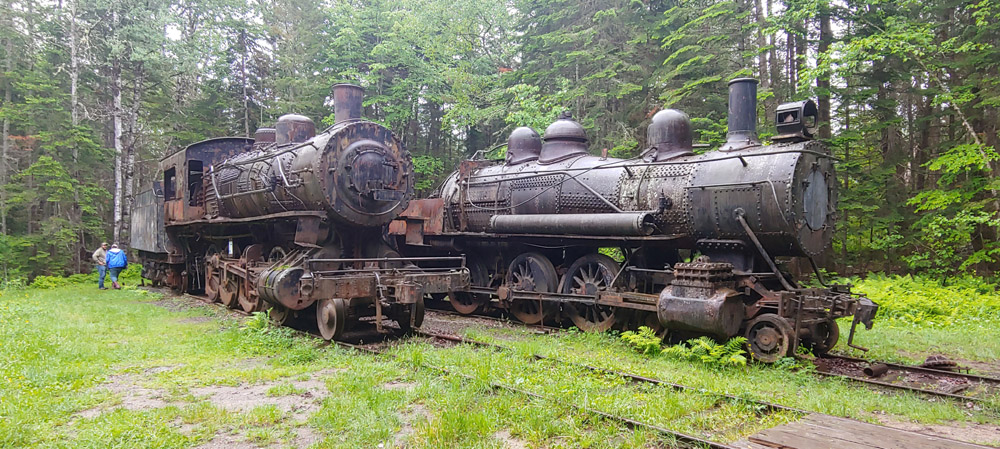

File comment: Credit a group of dedicated railfans who jacked up the engines and re-railed them. The state has been promising a shelter for several decades now.
0618221323B.jpg [ 270.38 KiB | Viewed 3429 times ]
File comment: These are both ten-wheelers.
Engine cab.jpg
Engine cab.jpg [ 290.97 KiB | Viewed 3429 times ]

_________________
"It's only impossible until it's done." -Nelson Mandela
Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Sat Jul 02, 2022 3:39 pm

Joined: Tue Aug 02, 2005 1:25 pm
Posts: 6322
Richard -

The one with the cab is a Consolidation. The other is a Ten-Wheeler.


Les


Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Sat Jul 02, 2022 4:22 pm

Joined: Sun Aug 22, 2004 11:26 am
Posts: 4547
Location: Maine
Old eyes, Les.

_________________
"It's only impossible until it's done." -Nelson Mandela


Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Sat Jul 02, 2022 7:23 pm

Joined: Thu Oct 08, 2015 11:54 am
Posts: 1532
Location: New Franklin, OH
For those interested, here’s a YouTube video of a walking tour of part of the railroad and tramway. It’s a long one but interesting to watch.

https://youtu.be/UyUUThoALKM

_________________
Eric Schlentner
Car Knocker, Gandy Dancer & Hog Jockey


Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Sat Jul 02, 2022 7:34 pm

Joined: Tue Aug 02, 2005 1:25 pm
Posts: 6322
Richard Glueck wrote:
Old eyes, Les.


Richard -

I have that problem too. The 4-6-0 is interesting as it is the only surviving Indiana Harbor Belt steam locomotive. Built in 1897 for the Chicago, Hammond & Western, through mergers/consolidations she became IHB #109 in 1907, later #115, then IHB #15, before being sold in 1918. Long gone from Indiana!

Les


Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Sat Jul 02, 2022 10:01 pm

Joined: Thu Sep 22, 2011 4:29 pm
Posts: 1899
Location: Youngstown, OH
IHB 765 sits derelict in Gary, Indiana.

_________________
From the desk of Rick Rowlands
inside Conrail caboose 21747


Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Sun Jul 03, 2022 12:42 am

Joined: Tue Aug 02, 2005 1:25 pm
Posts: 6322
Rick Rowlands wrote:
IHB 765 sits derelict in Gary, Indiana.


Rick -

Mikado #765 in Gary, Indiana is an Elgin, Joliet & Eastern locomotive. Also did some time working for the Duluth, Missabe & Iron Range as their #1330. Never an IHB engine. Maybe the folks in Gary might one day consider donating her to one of the Indiana railroad museums where she could be properly cared for.

Les


Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Sun Jul 03, 2022 1:46 pm
User avatar

Joined: Sat Oct 10, 2015 11:05 am
Posts: 127
Location: Shawinigan, Quebec, Canada
I think the 2-8-0 is former New York Central 5780

_________________
New York Central is the Best....Union Pacific is the First....


Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Sun Jul 03, 2022 2:47 pm

Joined: Tue Sep 14, 2004 7:52 am
Posts: 2336
Location: Strasburg, PA
Richard Glueck wrote:
The state has been promising a shelter for several decades now
If I recall my hearsay, the engines were in an engine house that was burned by the forest service to prevent someone else from randomly burning it down and starting a forest fire.

That whole place is very intriguing. I would like to see it sometime.


Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Sun Jul 03, 2022 4:15 pm

Joined: Sun Aug 22, 2004 11:26 am
Posts: 4547
Location: Maine
Kelly: The area was being cleaned up by Inland Fish and Game. The locomotives were under a soggy, collapsing shed. Part of the clean up was to remove debris and potential fuel for a rampaging fire. A younger or newer Forester got a bit carried away, and torched the shed. The only real casualty of that fire was the remains of a wooden cab. For years afterward, the locomotives were inhabited by porcupines and raccoons. The ties rotted out and the locomotives began to roll over.
A very dedicated group of railfans used snowmobiles and other vehicles to lug buckets of ballast and replacement ties to the site. They jacked up the engines and built new track under them! That's railroad preservation worthy of the Strasburg, in my opinion.
I've yet to see them myself.

By the way, the locomotives were dragged across the ice back in the early 20th century, in pieces, then reassembled.

I believe both came via NYC Lines.

_________________
"It's only impossible until it's done." -Nelson Mandela


Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Sun Jul 03, 2022 8:58 pm
User avatar

Joined: Sat Oct 10, 2015 11:05 am
Posts: 127
Location: Shawinigan, Quebec, Canada
Richard Glueck wrote:
I believe both came via NYC Lines.


Indiana Harbor Belt Railroad was not a Subsidiary of NYC??

_________________
New York Central is the Best....Union Pacific is the First....


Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Tue Oct 04, 2022 3:18 pm

Joined: Tue May 08, 2007 4:59 pm
Posts: 148
Unfortunately they are now too accessible and have become a selfie magnet and place to scratch or paint your name.


EL&WB No. 1
June 1897
Chicago Hammond & Western No. 110 (c/n 4553) built by the Schenectady Locomotive Works , Schenectady, NY.

April 1898:
Chicago Junction No. 116

1911:
Indiana Harbor Belt No. 16 (class F-53)

1912:
No. 8 Potato Creek Railroad, Keating Summit, PA.

1923:
No. 63 Grasse River Railroad Conifer, NY.

1927:
Sold by the General Equipment Company, New York, NY. to the Madawaska Co. (Lacroix).

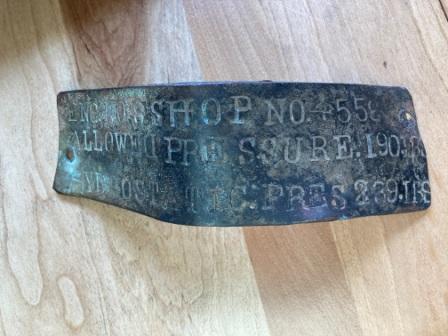

Here is the plate No. 1 had been carrying since its time on the Potato Creek. Note that the '3' was stamped backwards. The flag holders are marked NYC&H R R

Attachment:
IMG_0268-a.jpg [ 35.29 KiB | Viewed 1789 times ]



EL&WB No. 2:
December 1901:
Lake Shore & Michigan Southern No. 780 (c/n 4062) built by the Brooks Locomotive Works , Dunkirk, NY.

1914:
New York Central 5780 (class G-43a)

January 31, 1928:
Ferguson & Allen, Batavia, NY.

March 1928:
Purchased by the Madawaska Co. (Lacroix) and moved to Tramway

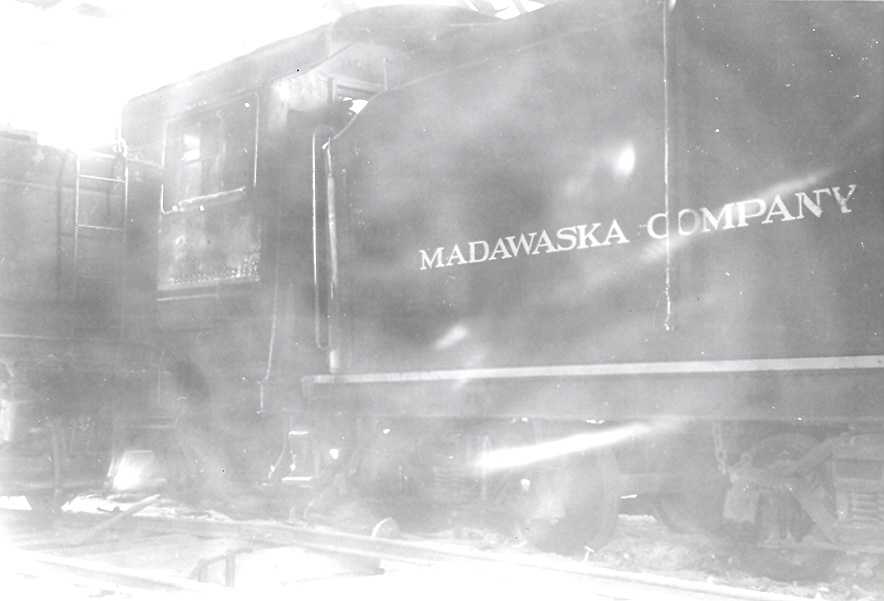

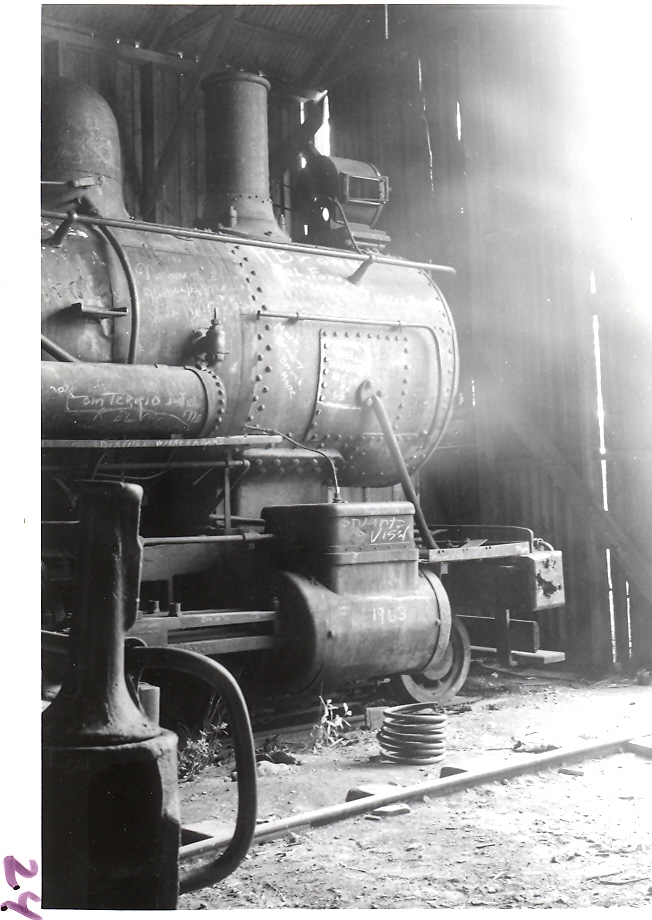

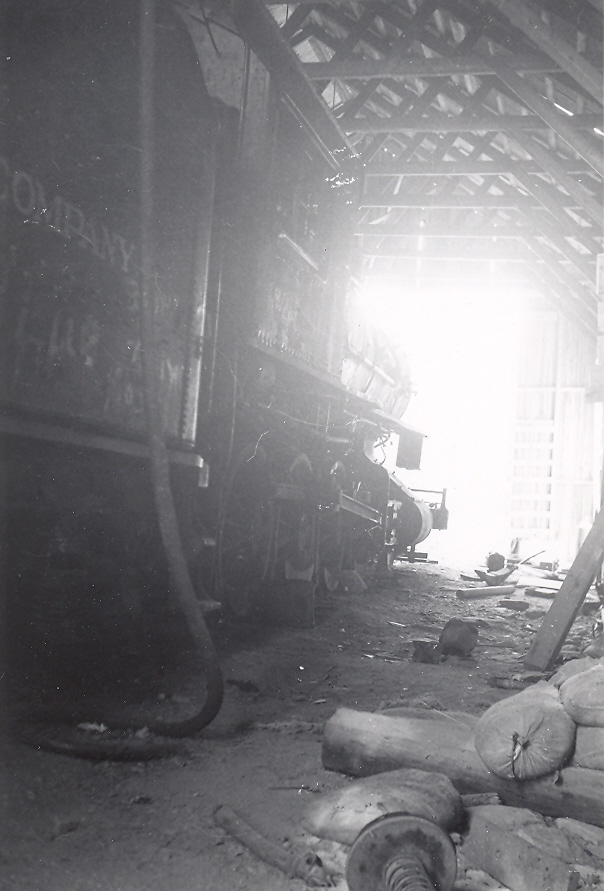

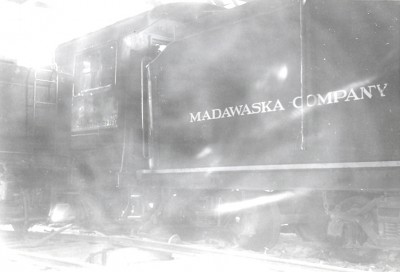

Here is a view inside the shed before it was burned by the State of Maine who at the time seemed to have a fetish with starting fires and destroying historic structures.

Attachment:
scan0004.jpg [ 181.02 KiB | Viewed 1754 times ]


Attachment:
scan0008.jpg [ 242.32 KiB | Viewed 1754 times ]


Attachment:
scan0014.jpg [ 156.21 KiB | Viewed 1747 times ]

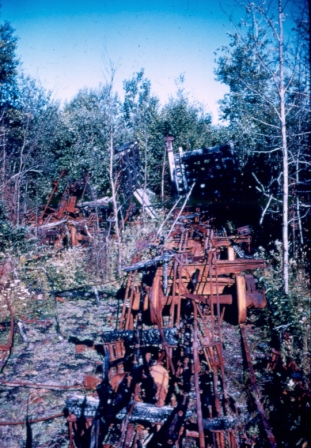

In their burning mode they also torched the pulp cars
Attachment:
scan0035-a.jpg [ 136.69 KiB | Viewed 1749 times ]


Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Tue Oct 04, 2022 4:04 pm

Joined: Thu Oct 08, 2015 11:54 am
Posts: 1532
Location: New Franklin, OH
Li’l bit o’ info: CH&W and CJ were predecessors of IHB. NYC was the majority owner of IHB.

_________________
Eric Schlentner
Car Knocker, Gandy Dancer & Hog Jockey


Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Thu Oct 06, 2022 8:30 am

Joined: Sun Aug 22, 2004 5:55 pm
Posts: 919
Location: Warren, PA
I was only marginally amused until I noted the tilted cylinders on the Brooks NYC 2-8-0, and recognized that as a relatively common class in this region, with no survivors that I knew of.

The wildly tilted piston valve cylinders with the inside valve gear (presumed Stevenson) seemed to be a rather unique design to Brooks and NYC.

I have a shot of one of those classes going down the street trackage about a block away from my house.

G43d instead of G43a, but just further north on that DAV&P at it's birthplace in Dunkirk, NY.
https://nycshs.omeka.net/items/show/160304


Offline
 Profile

 Post subject: Re: Eagle Lake Locos, Maine
PostPosted: Thu Oct 06, 2022 10:29 am

Joined: Wed Jan 16, 2019 8:47 pm
Posts: 201
Randy Gustafson wrote:
The wildly tilted piston valve cylinders with the inside valve gear (presumed Stevenson) seemed to be a rather unique design to Brooks and NYC.


C&NW had quite a few slanted cylinder engines as well, with examples in their D-class Atlantics (One 'surviving' in St. Louis) and many of their 10-wheelers. All these examples, the 1015, 1385, and 444 were Schenectady products. Virginia #4 at VMT also has slanted cylinders, and was a Baldwin product- so this style was more widespread than one might think. All the surviving engines with slanted cylinders I've seen were built around 1900~1910. I'd guess the design at least in part fell out of favor because of difficulty accessing the piston valves.


Offline
