 Post subject: Re: Lift Me Up
PostPosted: Fri Jan 08, 2016 12:56 pm

Joined: Wed Oct 23, 2013 6:54 pm
Posts: 4
I have serviced similar with timber or decent tie blocking and a pair or air over hydraulic jacks. I will be in nearby germany for most of this year if you need help from a wreck master of sorts....


Offline
 Profile

 Post subject: Re: Lift Me Up
PostPosted: Fri Jan 08, 2016 4:14 pm

Joined: Sun May 12, 2013 2:46 pm
Posts: 245
I agree with Dennis Storzek about the dangers of jacking one end only. 4 jacking points for the best stability. Or take it outside the shop and use a crane. What's most important is lessening or eliminating death and injury . After that what's next ,damage to equipment , costs , timeliness , convenience ?
Other than that I can't give suggestions without being there. Hope it turns out well for you.


Offline
 Profile

 Post subject: Re: Lift Me Up
PostPosted: Fri Jan 08, 2016 5:29 pm

Joined: Sun Aug 22, 2004 7:19 am
Posts: 6464
Location: southeastern USA
I've been watching and thinking...... we don't use plate frames over here. Plate frames are more rigid than our bar frames, but less forgiving. The strongest points at which to make the lift are where the side plates join the end plates. if you can use needle beams to stretch from one side to another and support it at those 4 points, I think you will eliminate the possibility of deforming the thin ends of the end plates, especially as no lift with multiple jacks is entirely equalized - all will lift a little differently than the others. It may be possible to place the beam on the rails so the jacks sit on the beam to get them where they need to be - we aren't there to see the geometry. I presume the side frames are inside the drivers as is common practice for inside plate frame construction. You will of course need to use a raised beam at the front to clear the truck being rolled out from under. the narrow jacks somewhat concern me - if cribbing can be raised to support the beam ends in case the jacks should start to lean or wobble, it would be a very good thing.

_________________
“God, the beautiful racket of it all: the sighing and hissing, the rattle and clack of the cars over the rails. These were the sounds that made America the greatest country on earth." Jonathan Evison


Offline
 Profile

 Post subject: Re: Lift Me Up
PostPosted: Sun Jan 10, 2016 2:06 pm

Joined: Thu Apr 14, 2005 9:34 pm
Posts: 2825
Location: Copenhagen, Denmark
Status update:

The plan is to remove the pilot and jack from front only, keeping the lift a minimum.

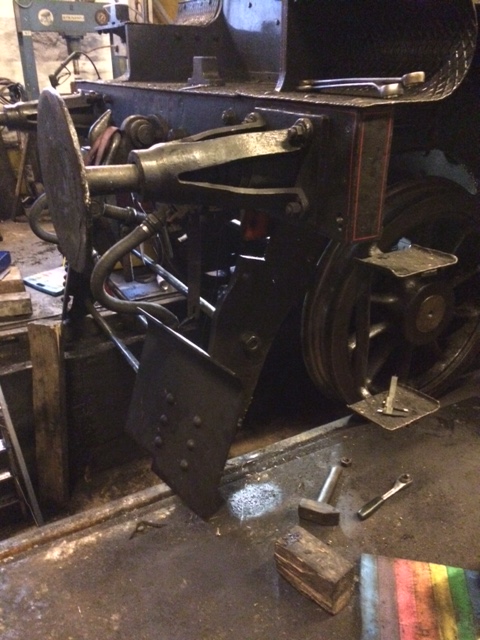

Note the photo showing preparations for removing the cylinder head. We want to inspect the bores and maybe change the rings. These cylinder heads do not clear the truck. The truck either must be removed, or it can be derailed and shifted over to the side a few inches.


Attachments:

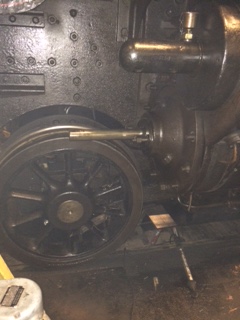

File comment: Cylinder head prepared for removal once truck is out.
IMG_2853.JPG [ 46.74 KiB | Viewed 5344 times ]
File comment: Pilot unbolted from frame.
IMG_2851.JPG [ 136.77 KiB | Viewed 5344 times ]

_________________
Steven Harrod
Lektor
Danmarks Tekniske Universitet
Offline
 Profile

 Post subject: Re: Lift Me Up
PostPosted: Mon Jan 11, 2016 11:45 am

Joined: Tue Sep 14, 2004 7:52 am
Posts: 2477
.


Last edited by Kelly Anderson on Fri Nov 29, 2024 5:33 pm, edited 1 time in total.

Offline
 Profile

 Post subject: Re: Lift Me Up
PostPosted: Mon Jan 11, 2016 1:37 pm

Joined: Thu Apr 14, 2005 9:34 pm
Posts: 2825
Location: Copenhagen, Denmark
Yup. I believe we are going to do inspection on the truck this time. Maybe some bearing work. Revise lubrication fittings.

_________________
Steven Harrod
Lektor
Danmarks Tekniske Universitet


Offline
 Profile

 Post subject: Re: Lift Me Up
PostPosted: Wed Feb 17, 2016 5:52 am

Joined: Thu Apr 14, 2005 9:34 pm
Posts: 2825
Location: Copenhagen, Denmark
Update. Hold on to your hats. The truck is out and the front end is on blocks. Again, I was not there (peak work cycle is semester start). The engine was jacked from the front only.


Attachments:
File comment: Swing bolster on k582 engine truck

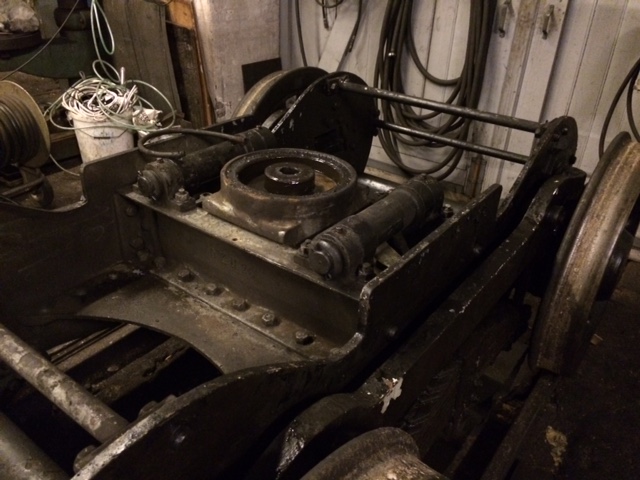

IMG_2876.JPG [ 111.47 KiB | Viewed 4969 times ]
File comment: k582 engine truck. Truck has been power washed.

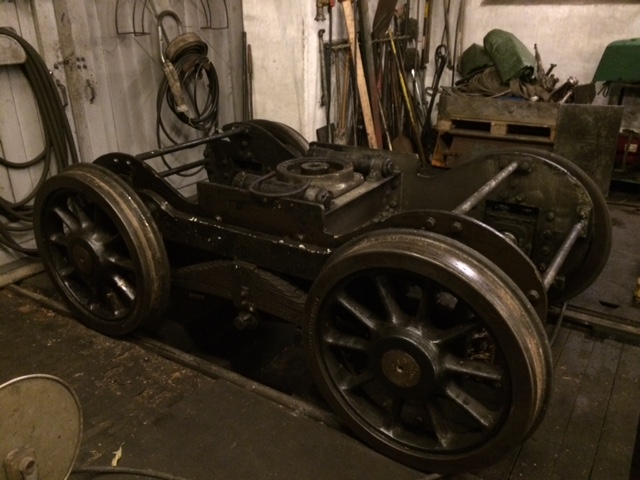

IMG_2875.JPG [ 107.16 KiB | Viewed 4969 times ]
File comment: K582 on blocks on shop truck.

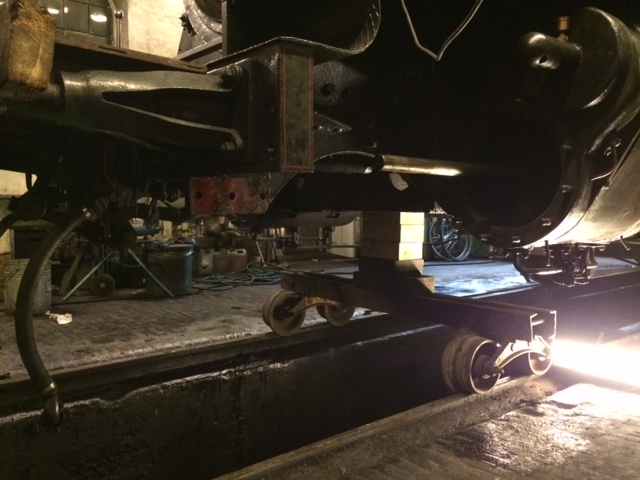

IMG_2874.JPG [ 104.13 KiB | Viewed 4969 times ]

_________________
Steven Harrod
Lektor
Danmarks Tekniske Universitet
Offline
 Profile

 Post subject: Re: Lift Me Up
PostPosted: Wed Feb 17, 2016 8:18 am

Joined: Fri Mar 26, 2010 11:43 am
Posts: 777
That looks--terrifying. I wouldn't have any part of my anatomy I was particularly attached to anywhere under that setup. I wouldn't even stare at that trigger...I mean blocking point, too hard, for fear it might move. Best of luck to you, and always watch out for #1 ;)


Offline
 Profile

 Post subject: Re: Lift Me Up
PostPosted: Wed Feb 17, 2016 1:21 pm

Joined: Fri Dec 03, 2004 9:42 pm
Posts: 2950
I wouldn't even crawl under there if it was a pickup truck.

Please put some additional blocking/cribbing under there before you work on it, breathe on it, or even give it harsh glance. Even just stacking some ties under it would be something.


Offline
 Profile

 Post subject: Re: Lift Me Up
PostPosted: Wed Feb 17, 2016 4:27 pm

Joined: Thu Nov 22, 2007 5:46 am
Posts: 2611
Location: S.F. Bay Area
Well, keep in mind we can't see what's immediately behind it. It may be well balanced on its drivers.


Offline
 Profile

 Post subject: Re: Lift Me Up
PostPosted: Wed Feb 17, 2016 9:47 pm

Joined: Wed Oct 22, 2008 8:18 pm
Posts: 2226
if those are concrete blocks on those rollers, one good crack the whole thing slips/rolls.

get some ties under there, block those rollers. Put ties on either side of those rollers, block them secure them.


Offline
 Profile
