WESIII
 Post subject: Re: Climax Drawings
PostPosted: Sat Feb 27, 2021 7:46 pm

Joined: Wed Dec 02, 2015 10:38 am
Posts: 172
Location: Vienna, VA

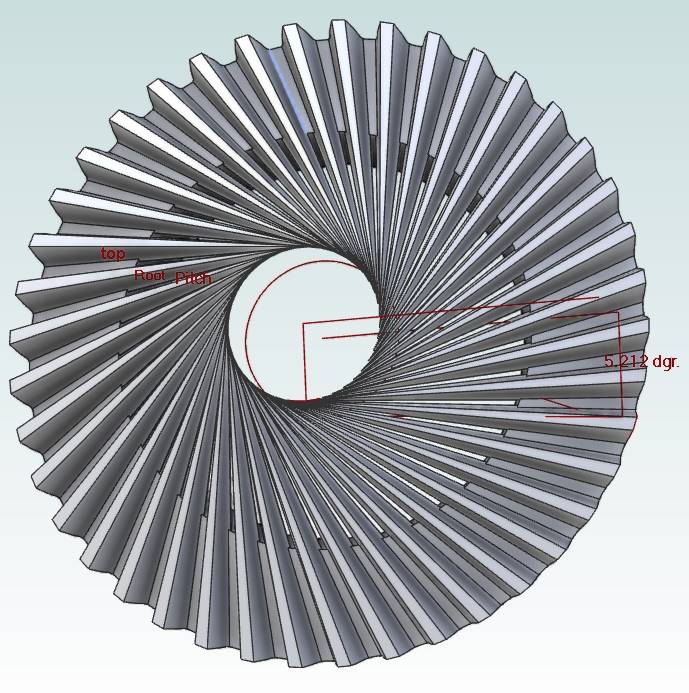

For those interested CADD and how the gear is constructed. This jpg illustrates the process of creating the gear teeth and also illustrates the reason/use of the Skew Circle.

Attachment:
Climax F509 Gear Construction-r.JPG
Climax F509 Gear Construction-r.JPG [ 96.03 KiB | Viewed 1284 times ]
