 Post subject: Lap Joint Math
PostPosted: Sun May 02, 2010 8:50 pm

Joined: Sat Feb 05, 2005 1:05 am
Posts: 488

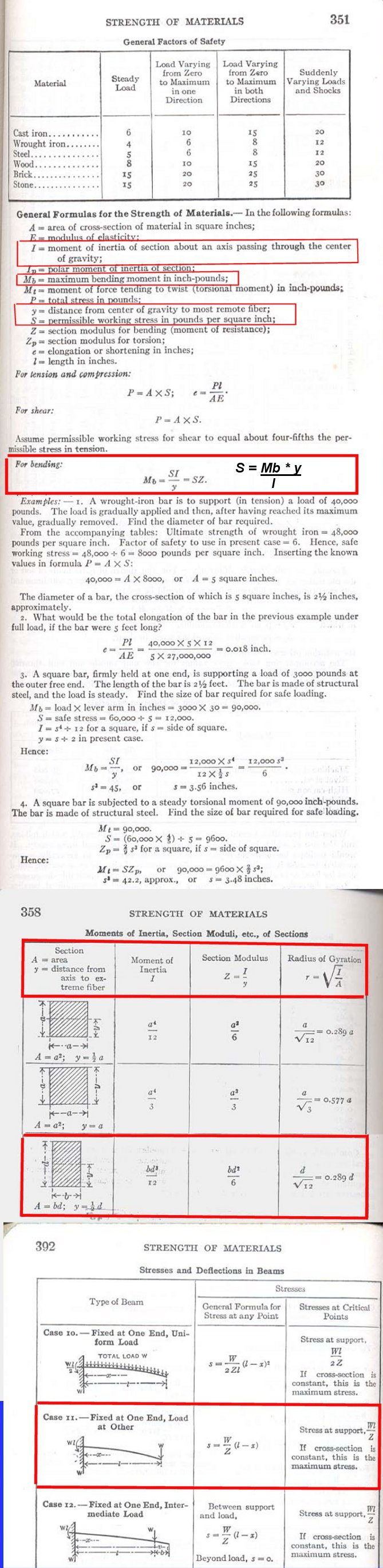

From Machinery's Handbook:

Moment of Inertia is equivalent to inertia in motion equations. Inertia is resistance to change in motion. Moment of Inertia is the property of resistance to a bending moment.

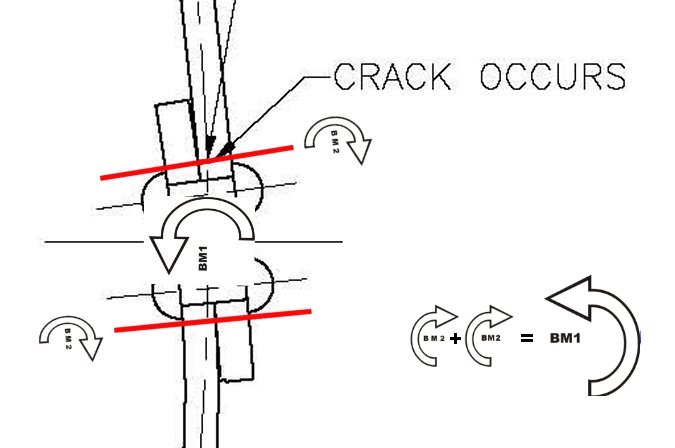

BM1 is the bending moment created by the lap.
BM2 is the bending moment created in each plate to resist BM1.
