ALCo RS3 and RSX-4 MRS Engine coolant temperature ct panel

Moderators: Rick Rowlands, tomgears, Randy Hees

Page 1 of 1

[ 1 post ]

Print view

Previous topic | Next topic

Author

Message

Owen S. Paulsen

Post subject: ALCo RS3 and RSX-4 MRS Engine coolant temperature ct panel

Posted: Fri Oct 30, 2009 10:55 pm

Joined: Sun Aug 22, 2004 11:34 am
Posts: 107
Location: San Pedro CA

I need a drawing fix the part in side of the Engine cooling water water temp control
box (#145 on the Electrical page)
I know the value of the electrical except the watts an length on one resistance and mechanic like Reducing valve an Relief valve.
The ALCo or GE provide the #145 an Drawing.
Smile

Stan

Attachments:

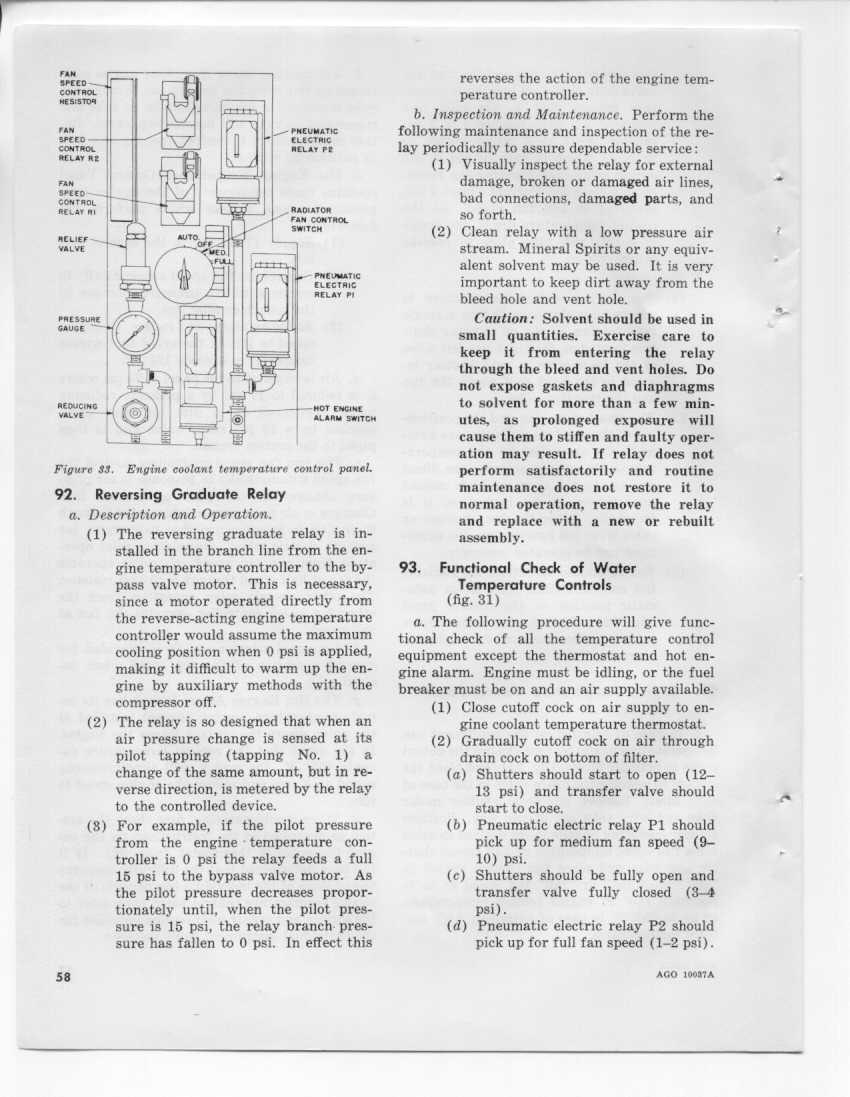

File comment: The is a lay out in the inside #145

Page 58.jpg [ 94.22 KiB | Viewed 1980 times ]

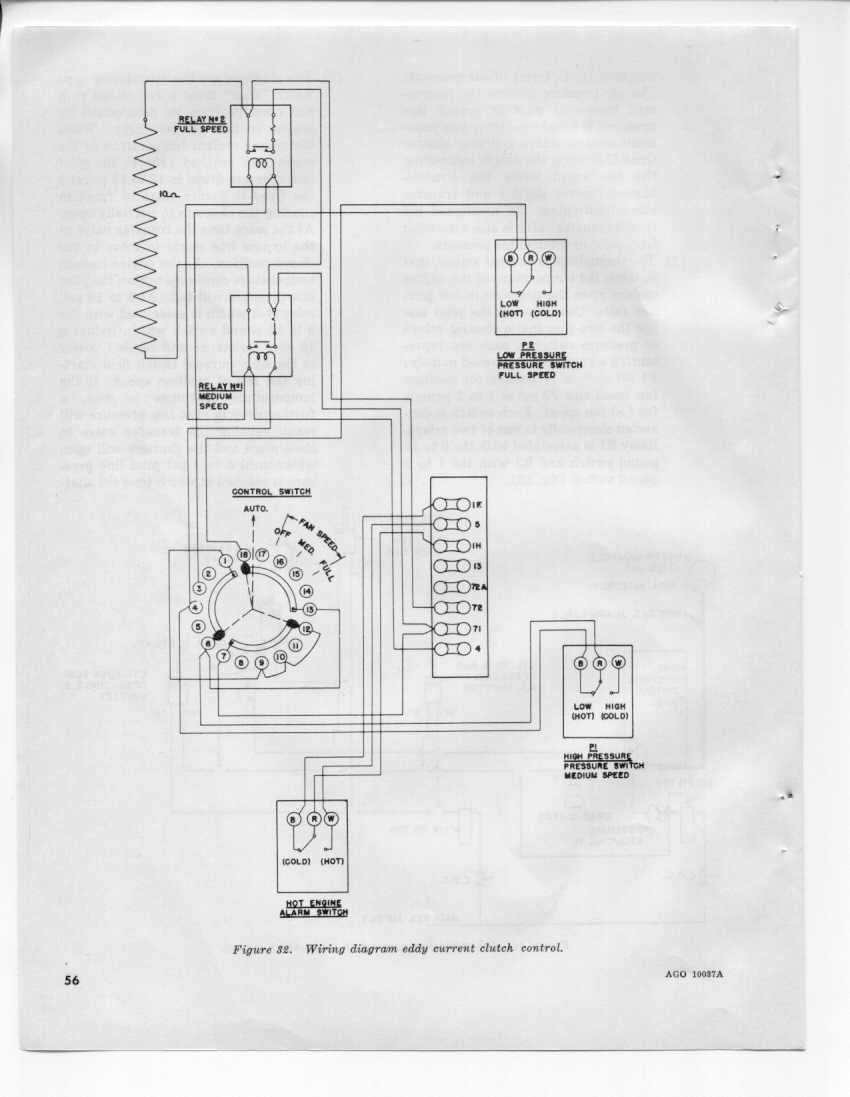

File comment: The is electrical drawing of the inside #145 .

Page 56.jpg [ 47.36 KiB | Viewed 1980 times ]

File comment: This is electrical is tie threw.
The only that #145 .

Doc1.doc [95 KiB]
Downloaded 304 times
