Triple Valve Schematic Required

k5ahudson · **Joined:** Tue Aug 24, 2004 6:30 am **Posts:** 773

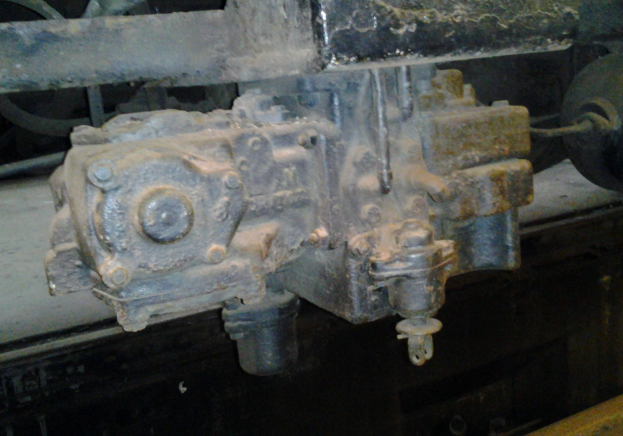

I'm looking for a schematic for the triple valve pictured below. I do not know the model number, but it is off a 2800 series ex-Long Island Railroad coach. If anyone could help me out it would be appreciated.

Adam Phillips · **Posted:** Thu Feb 14, 2013 3:58 am

Looks to me to be NYAB 26-C. Not sure if I have any prints but I'm sure I don't have them scanned. They still have some parts for those if I'm not mistaken.

Mike Tillger · **Posted:** Thu Feb 14, 2013 6:27 am

Check out the top link on the RPCA Library page:http://www.rpca.com/resourcelibrary.htm
Mike Tillger

Loco112 · **Posted:** Tue Mar 18, 2014 3:55 pm

Does anyone have a photo or a line drawings sketch of the modernized K1 (quick action, quick release, quick everything) triple valves (the ones with diaphrams and/or poppet valves, but not piston rings)?

I am hoping that WABCO made a K1 triple valve with poppet valves, like the 6K Distribution valve uses.

Thanks

nevans1133 · **Joined:** Fri Dec 28, 2012 12:17 pm **Posts:** 37

Check this link, hope it helps:

http://techinfo.wabtec.com/DataFiles/O& ... 5,S.24.pdf

Loco112 · **Posted:** Wed Mar 19, 2014 12:11 am

After reading it, thats not it, but being into the old small brakes, I'm not sure what that part is, so it had a chance to be the right one.

Thanks for posting!

What I need is a modernized K1 triple valve that will still bolt onto the 8" x 12" KC or KD freight brakes. Maybe it was China or one of the WABCO Austral-Asia countries that was using that "unicorn" of a triple valve.

I call it a "unicorn" becasue it probably doesn't exist!
