Owen S. Paulsen
 Post subject: ALCo If you drawing for the Reverse a the Controller
PostPosted: Thu Oct 09, 2014 1:52 am

Joined: Sun Aug 22, 2004 11:34 am
Posts: 107
Location: San Pedro CA
I did to the 12 year ago I see not finish handle by mcmaster-carr.

This the part a complete.


Owen Paulsen


Attachments:

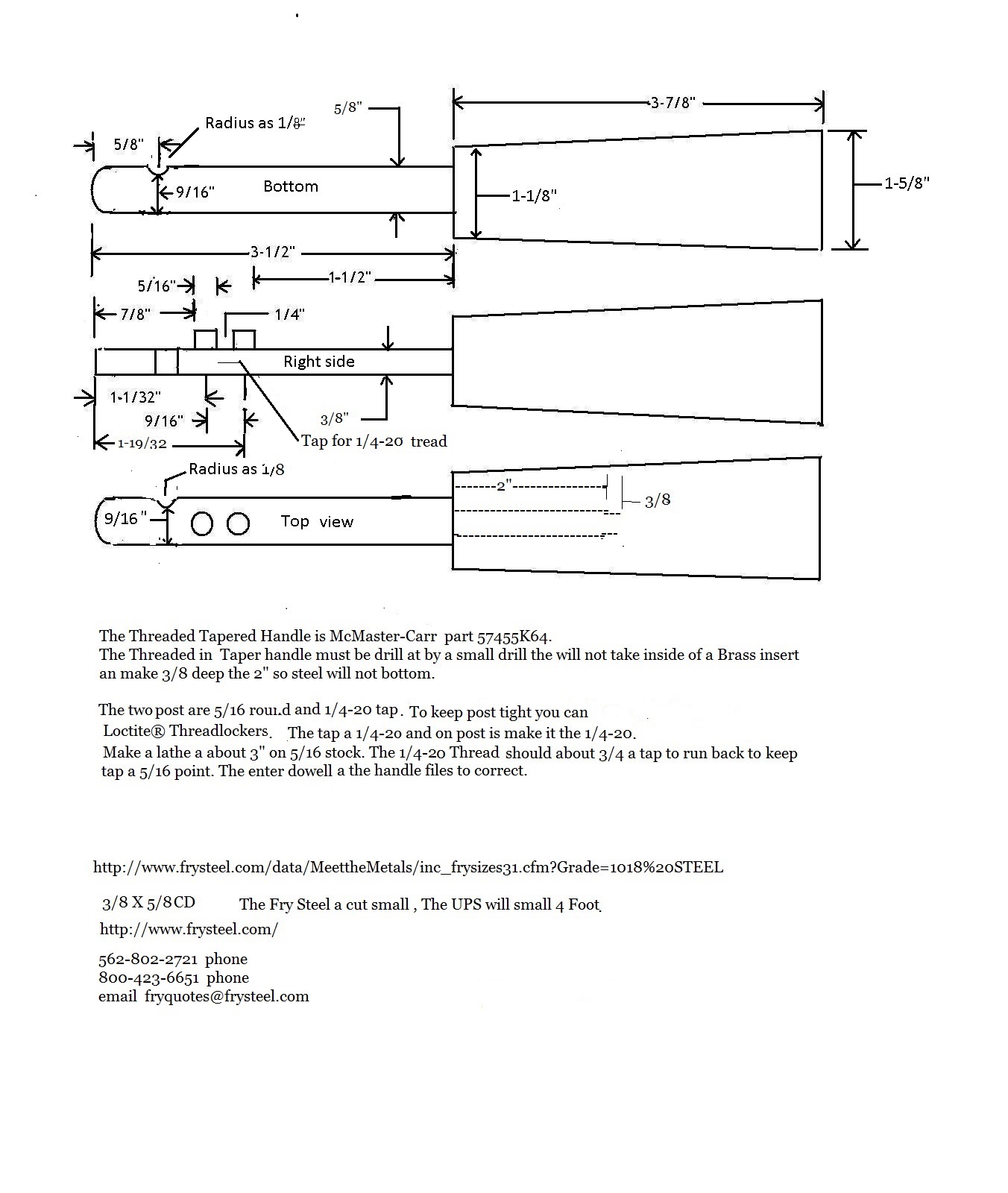

ALCo Reverse skt 2aaa.jpg
ALCo Reverse skt 2aaa.jpg [ 268.09 KiB | Viewed 4802 times ]
Offline
 Profile

Steve DeGaetano
 Post subject: Re: ALCo If you drawing for the Reverse a the Controller
PostPosted: Thu Oct 09, 2014 9:04 am

Joined: Mon Feb 22, 2010 5:06 pm
Posts: 174
What?

_________________
Steve DeGaetano
Fireman, New Hope Valley Railway

Offline
 Profile

Pegasuspinto
 Post subject: Re: ALCo If you drawing for the Reverse a the Controller
PostPosted: Thu Oct 09, 2014 10:45 am

Joined: Fri Mar 26, 2010 11:43 am
Posts: 777
How to make an Alco reverser handle with only standard cut stock and basic hand tools.

He's posted here before, he has trouble communicating through the keyboard but he seems to have a pretty good grasp on the mechanical world. I'd be inclined to cut him some slack...

I see there is need to use a lathe to make the pins, you could order 2 of these:
https://www.boltdepot.com/Product-Details.aspx?product=14054
and cut the heads off. I think that would eliminate the need for anything more high tech then a drill.
Offline
 Profile

NH0401
 Post subject: Re: ALCo If you drawing for the Reverse a the Controller
PostPosted: Thu Oct 09, 2014 2:23 pm

Joined: Thu Jan 12, 2006 10:10 pm
Posts: 670
Location: Iron City
FYI-Power Rail re-pops this part.

DPK

_________________
"Two wrongs don't make a right, but they make a good excuse."-Thomas Szasz
