Granite Rock No. 10 -- Cal. State RR Museum

rock island lines · **Joined:** Mon Feb 17, 2014 4:20 pm **Posts:** 487

As reported on Trainorders.

http://sacramento.news10.net/news/arts- ... ilroad-411

Quote:

Granite Rock No. 10 will return to service on April 11, 2015. First introduced in May 1997 by the California State Railroad Museum, Granite Rock No. 10 was taken out of service in 2011 for extensive boiler repairs during which time diesel locomotives pulled the excursion trains. Granite Rock No. 10 is an oil-fired steam engine built by the H.K. Porter Co. for the U.S. Army in 1942.

Granite Rock #10...yet again by El Cobrador, on Flickr

Edit: And here's one still running in Europe. Nice.

4389 by Kees Wielemaker, on Flickr
Netherlands

Richard Glueck · **Posted:** Sat Mar 28, 2015 7:32 am

Big, blocky, tank locomotives! Gotta love 'em.

M Austin · **Joined:** Sat Feb 05, 2005 1:05 am **Posts:** 488

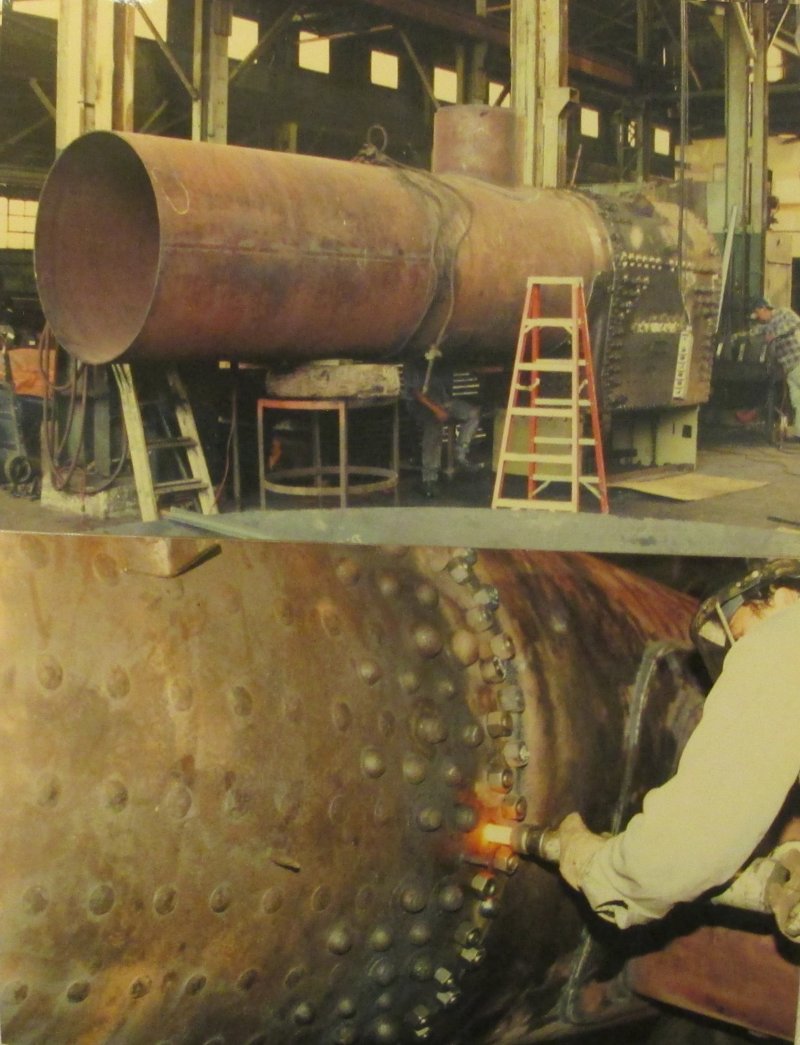

Photos from 1996 when GR 10 got a new barrel at Dixon Boiler Works in LA.

Attachment:

GR10a.jpg [ 129.32 KiB | Viewed 9739 times ]

wilkinsd · **Posted:** Fri Apr 03, 2015 9:56 pm

Are they riveting a new boiler barrel to the original firebox?

If so, was that the 10s firebox, or the firebox that came from one of the Tombstone Junction 0-6-0Ts that CSRM purchased at auction to be a parts source for the 10?

M Austin · **Joined:** Sat Feb 05, 2005 1:05 am **Posts:** 488

wilkinsd wrote:

Are they riveting a new boiler barrel to the original firebox?

Yes. The original boiler was in excellent condition except for severe external corrosion on the second course, mostly in the area of the longitudinal butt strap. I designed the barrel for the CSRM. Dixon got the contract to build it and install it. By 1996, there was no one in the front office that knew about riveting, so I consulted to shepherd them through the process. The rear tube sheet was replaced also.

wilkinsd · **Posted:** Mon Apr 06, 2015 11:12 pm

M Austin wrote:

wilkinsd wrote:

Are they riveting a new boiler barrel to the original firebox?

Yes. The original boiler was in excellent condition except for severe external corrosion on the second course, mostly in the area of the longitudinal butt strap. I designed the barrel for the CSRM. Dixon got the contract to build it and install it. By 1996, there was no one in the front office that knew about riveting, so I consulted to shepherd them through the process. The rear tube sheet was replaced also.

Very interesting, thanks for sharing the photos.

Finderskeepers · **Posted:** Tue Apr 07, 2015 7:08 pm

If you want one of your own, Rivarossi has just
Brought out an HO scale version in a number of
Different road names
http://www.amazon.com/Rivarossi-HO-Scal ... B00JTJPK76
