The Brookville from the RRMPA Lives Again!

Rick Rowlands · **Posted:** Wed Jan 24, 2018 4:00 pm

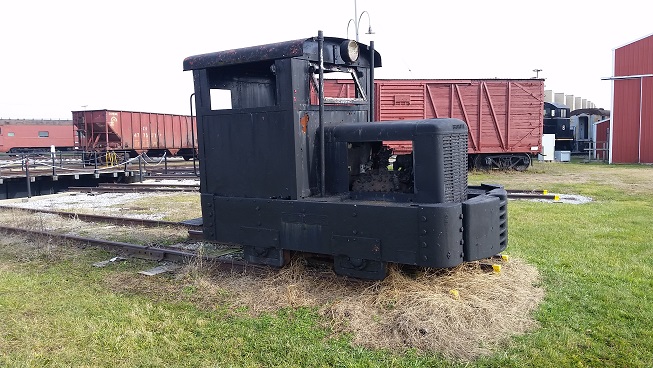

The little 5 ton Brookville that sat on a radius track at the Railroad Museum of Pennsylvania, transferred to Youngstown Steel Heritage last year has been brought back to life.

Take a look:
https://youtu.be/hLmKJUxyoTQ

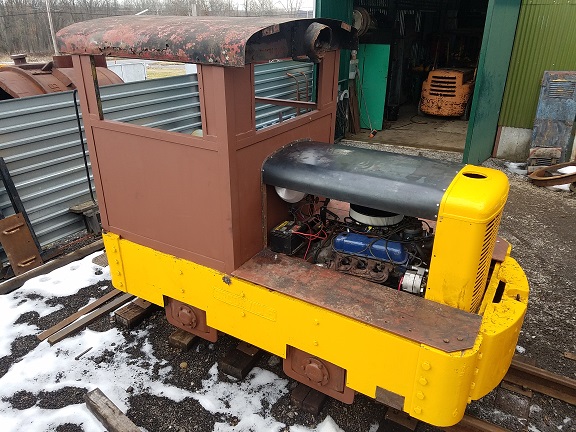

We completely disassembled the locomotive, regauged the wheelsets to 24" gauge and reassembled it with a new engine and transmission to replace the heavily damaged originals. It is getting new cab side sheets, new hood and next year will get a new cab roof. The locomotive is of course not fully finished. Much more work needs to be done but mechanically it is complete.

The locomotive is now the J&L Narrow Gauge Railroad 64 and will be in weekly operation starting this summer at the Youngstown Steel Heritage Museum.

Scranton Yard · **Joined:** Thu Feb 27, 2014 10:08 am **Posts:** 733

Looks great. Nice work. A lot of progress since September. What is the new setup - engine, trans, carb?

Dave Lewandoski · **Joined:** Sun Aug 22, 2004 5:58 pm **Posts:** 1083

great work as always Rick

Rick Rowlands · **Posted:** Wed Jan 24, 2018 5:25 pm

A ford 302 and C6 automatic transmission replaces the Ford flathead and manual gearbox. Basically three lever operation. Brake, shifter and throttle. No foot pedals anymore.

Kelly Anderson · **Joined:** Tue Sep 14, 2004 7:52 am **Posts:** 2477

Rick Rowlands · **Posted:** Thu Jan 25, 2018 10:22 am

There was a hole in the hood directly over the carburetor, which allowed the intake passages to fill with water. Those cylinders that did not fill with water were found to be full of nuts and mouse droppings. The block may still be salvageable, depending on the depth of the corrosion of the cylinder walls. Attempting to rebuild the engine was beyond our means so it was replaced along with the transmission that was full of rocks, sand and moisture.

JayZee · **Joined:** Sat May 07, 2016 1:12 am **Posts:** 140

Water in a engine+freezing temps=cracked block usually. Certain parts might be salvageable, but unlikely the block is. You can part out the motor on eBay and get some cash for your other projects.

Mr. Ed · **Posted:** Thu Jan 25, 2018 1:25 pm

Love the air cleaner!

Later!
Mr. Ed

Richard Glueck · **Posted:** Thu Jan 25, 2018 5:30 pm

Well done, Rick!

train guy · **Joined:** Wed Jun 26, 2013 7:20 pm **Posts:** 211

Great work! You guys sure seem to get a lot done in a short time! So....will you be doing an Engineer For An Hour program with the Brookville?

Rick Rowlands · **Posted:** Thu Jan 25, 2018 8:09 pm

Sure, if anyone would want to run it! Definitely will be doing something like that with the 58.

Ed Kapuscinski · **Posted:** Thu Jan 25, 2018 11:58 pm

Damn Rick, very awesome.

You're clearly a machine yourself, which explains how you're so good with them.

CREEPING DEATH · **Joined:** Sun Oct 24, 2010 6:22 pm **Posts:** 275

Looks good! I actually have an oil bath air filter off a '78 F-150 that had a 302/C-6, PM me if y'all are interested.

CD

Earl Knoob · **Posted:** Fri Jan 26, 2018 12:06 pm

.....needs a pair "Cobra - Powered by Ford" valve covers.

J3a-614 · **Posted:** Fri Jan 26, 2018 12:29 pm

Earl Knoob wrote:

.....needs a pair "Cobra - Powered by Ford" valve covers.

Heh, heh, heh, and flames on the hood, or perhaps Cobra side decals!
