Westinghouse Air Compressor Oversize Information

jcbryant · **Joined:** Sat Jun 18, 2011 11:26 pm **Posts:** 27

Our group is current rebuilding an 8.5" Westinghouse CC air compressor. Can anybody point me to information on the oversize steps for the cylinders? Happily they appear to be in serviceable shape, but it would be nice to know where this compressor has or has not had in cylinders bored out in the past. Years ago our group worked on an 11" compressor and at the time this kind of information was available on-line somewhere (Bernie Watts?) but I can't find anything now.

Thanks.

Russ Fischer · **Posted:** Sat Mar 31, 2018 9:26 pm

Here are the pages from the WABCO repair parts book. They recommend boring cylinders in 1/16" steps. To my knowledge, Bernie is still using the same part numbers.

Attachment:

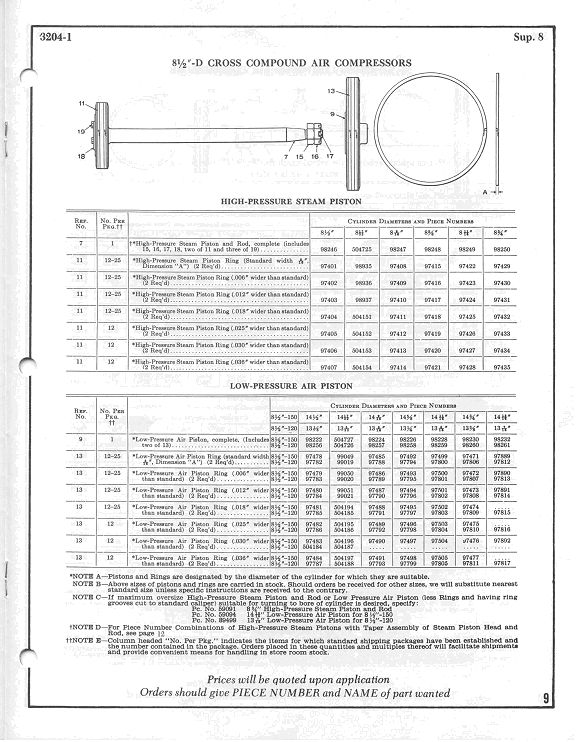

Wabco Ring 1.jpg [ 96.2 KiB | Viewed 7939 times ]

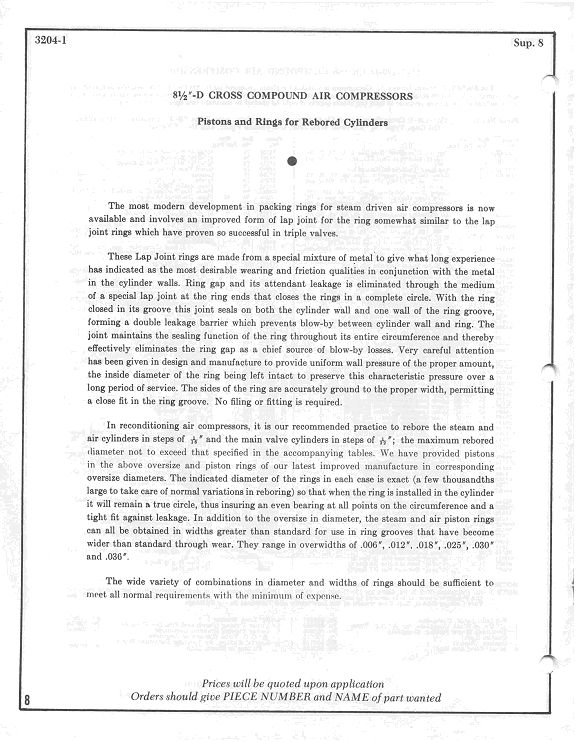

Attachment:

Wabco Ring 2.jpg [ 105.04 KiB | Viewed 7939 times ]

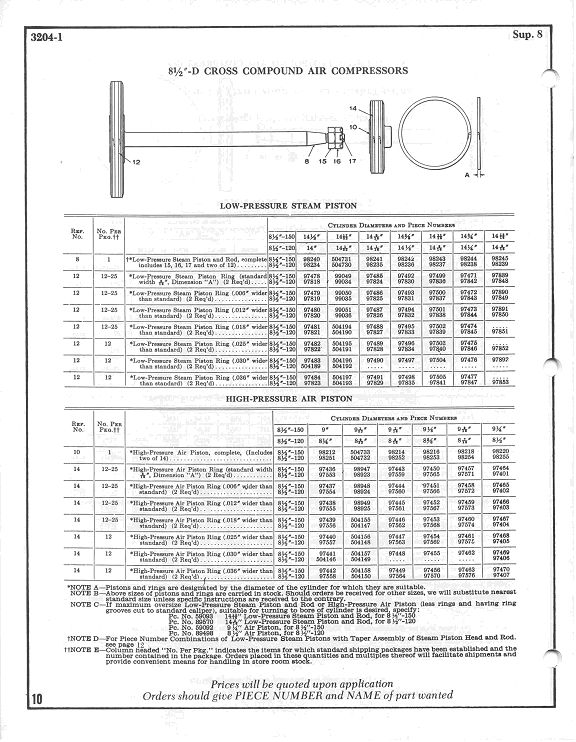

Attachment:

Wabco Ring 3.jpg [ 107.09 KiB | Viewed 7939 times ]

jcbryant · **Joined:** Sat Jun 18, 2011 11:26 pm **Posts:** 27

Russ,

Thank you very much for this. It's exactly what I remember and what I was looking for.

The only catch is that the resolution is a bit low, and it would be nice to also have the corresponding information for the main valve cylinder. This is an "old style" compressor with a slide control valve.

In an ideal world the whole document would be out there somewhere as a .pdf ... :).

Thanks again.

Richard Glueck · **Posted:** Sun Apr 01, 2018 10:39 am

We would like a copy of all technical information for rebuilding a similar unit in Maine.

newenglandsteamcorp@gmail.com

Russ Fischer · **Posted:** Sun Apr 01, 2018 3:05 pm

I have the complete parts book for both the 8 1/2" CC and the AD governor. PM me with an email address and I can send you PDF files. They may be posted somewhere but I am not aware of it if they are.

Russ

Richard Glueck · **Posted:** Mon Apr 02, 2018 8:33 am

Thank you, Russ. Sharing documents like this one makes RYPN only that much more valuable. Much appreciated.

Kelly Anderson · **Joined:** Tue Sep 14, 2004 7:52 am **Posts:** 2477

Kelly Anderson · **Joined:** Tue Sep 14, 2004 7:52 am **Posts:** 2477

Richard Glueck · **Posted:** Mon Apr 02, 2018 10:43 am

Thank you as well, Kelly. Much appreciated.

jcbryant · **Joined:** Sat Jun 18, 2011 11:26 pm **Posts:** 27

Kelly,

Thank you very much for all of this. Perhaps the reason that the pages don't cover the slide reversing valve is that they're concerned largely with cylinder and ring diameters, and these concepts obviously don't apply. As you say, the pages do cover the "old" built-up style of main valve and, as I understand things, it and the slide reversing valve go hand in hand (if you've got one, you must also have the other).

In any case there's plenty of interesting and helpful material on the reversing slide valve in the RR documents. If we can't work out whether our valve and its associated pieces are in acceptable condition it won't be for lack of information.

Thanks again - John
