Roof Detail Climax SN A-313
https://www.rypn.org/forums/viewtopic.php?f=1&t=46833		 Page 1 of 1
Author:  WESIII [ Wed Aug 17, 2022 1:16 pm ]
Post subject:  Roof Detail Climax SN A-313
Further investigation of the way Climax Mfg. Co. secured the roof arches has revealed that they used a simple 1/2" Square Nut dropped into a 7/8" drilled hole to secure the 1/2" bolts securing the Side Facia to the Roof Arches - Not a 7/8" rod drilled and tapped for a 1/2" bolt as I initially thought. Just goes to show two things. Just because something appears to be the way things were done a 120 years ago, one (me) maybe wrong. And the second is that Climax Mfg. Co. did things the simple, easiest and cheapest way.

See illustrations below:

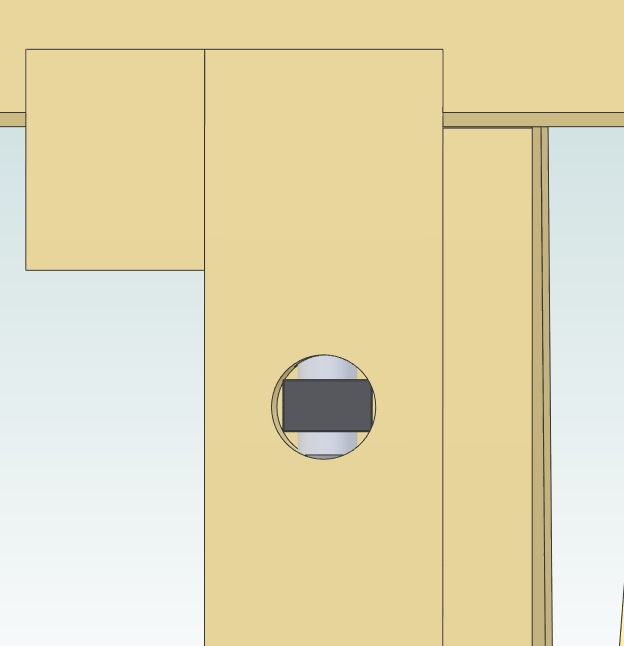

Attachment:
Roof Bolt Overhead Detail.JPG
Roof Bolt Overhead Detail.JPG [ 39.45 KiB | Viewed 1703 times ]

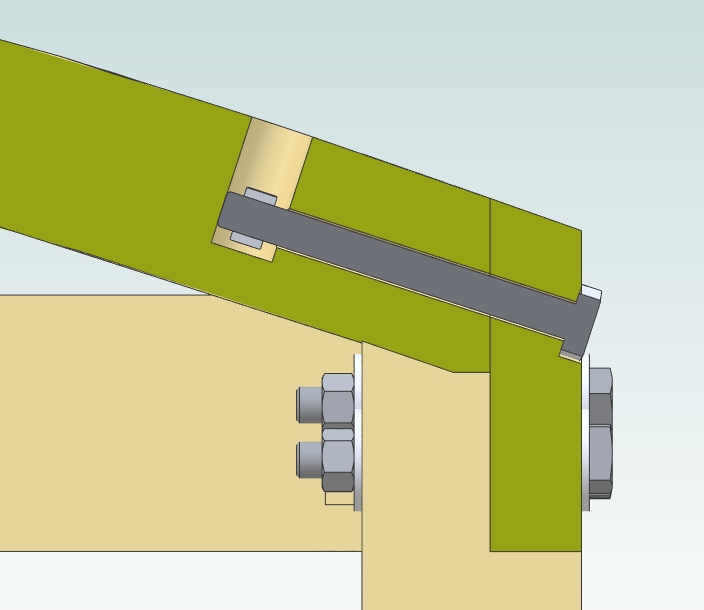

Attachment:
Roof Bolt Section Detail.JPG
Roof Bolt Section Detail.JPG [ 68.77 KiB | Viewed 1703 times ]
Author:  daylight4449 [ Wed Aug 17, 2022 2:19 pm ]
Post subject:  Re: Roof Detail Climax SN A-313
WESIII wrote:
Further investigation of the way Climax Mfg. Co. secured the roof arches has revealed that they used a simple 1/2" Square Nut dropped into a 7/8" drilled hole to secured the 1/2" bolts securing the Side Facia to the Roof Arches - Not a 7/8" rod drilled and tapped for a 1/2" bolt as I initially thought. Just goes to show two things. Just because something appears to be the way things were done a 120 years ago, one (me) maybe wrong. And the second is that Climax Mfg. Co. did the the simplest, easiest. cheapest way.

See illustrations below:

Attachment:
Roof Bolt Overhead Detail.JPG



Attachment:
Roof Bolt Section Detail.JPG


This is fascinating. It's essentially the epitome of the KISS method.
