 Post subject: Re: Stewartstown RR #6
PostPosted: Mon Sep 25, 2023 10:19 am

Joined: Mon Aug 23, 2004 3:01 pm
Posts: 1726
Location: SouthEast Pennsylvania
bigjim4life wrote:
Now with all that rolling stock, time to put more resources towards track extensions! ;)
Kappy wrote:
We, also, work on that consistently.
I’m on the track crew as well. We split our time between maintaining our class 1 track and extending it.
We can always use more volunteers to help install those surplus ties;) Will help extend that line!
Mark
Do you mean extending along the New Park & Fawn Grove?


Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Mon Sep 25, 2023 1:22 pm

Joined: Wed Jul 26, 2017 4:24 pm
Posts: 110
I would assume getting the line somewhat passable between stewartstown and new freedom, I think the track is just barely class one to just past the iron bridge, and just short of the crossings by the township buildings. The rest of track is pretty bad, not even excepted track


Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Tue Sep 26, 2023 4:54 pm

Joined: Sat Oct 17, 2015 5:55 pm
Posts: 2250
I know is is tiresome to hear "if you want more progress, donate money," but that's about the size of it. I am a member of the "Friends of the Stewartstown Railroad" group (they are on facebook) even though I live over 3K miles away, just because what they are doing is so interesting. They don't bite off more than they can chew, and have been pragmatically repairing track and equipment untouched during the Hart years: two former mu passenger cars (one repaired quickly several years ago is getting a bit of work this summer, another is nearing a return to service), the roof of their station, a bad washout (repaired using Gabion baskets, an ancient Roman technique that they use here in Oregon on highways), and have acquired track machinery to help out the volunteers. One issue they have faced is that apparently no ties at all were replaced for decades, and the ties are smaller than modern relay ties or new ties, meaning that when a tie is replaced they must expand the crib to put in a replacement. They picked up a "scarifier" (sort of like a garden tiller) for this purpose, and I believe they also have a used ballast regulator they are trying to return to service. I'm not sure how much they expand track every year, perhaps a tenth of a mile, but obviously if they had more donations and more volunteers they could expand faster.


Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Tue Sep 26, 2023 5:16 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 123
Thanks for the discussion guys.

We do our track work on two main Fronts.

1 We work to extend our class one track toward New Freedom. Sorry, the New Park and Fawn Grove is long gone.

2 We go back over our class one track and consistently improve it. Many places have all ties replaced and are ballasted and tamped. There’s always tamping and alignment work to do on our line. Every time you visit our Railroad, new improvements will have been made. However, we do have many years of neglect to catch up on.

We don’t open sections of track to our full size trains until it is significantly better than class one minimum standards. Then we move our class one Red Board and extend the train ride for our passengers.

As mentioned earlier, we are putting new machines in service and getting better at track work. Getting more efficient as we go. Heading in the right direction.

Mark K


Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Sat Sep 30, 2023 7:25 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 123
Got some parts primed today. Amazing how many square inches even this small locomotive is.

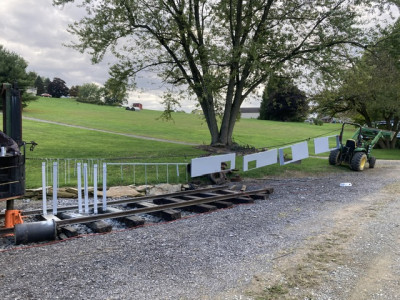

Here’s my ‘free range’ paint booth. Rudimentary, but getting the parts sealed in epoxy primer and ready to top coat.

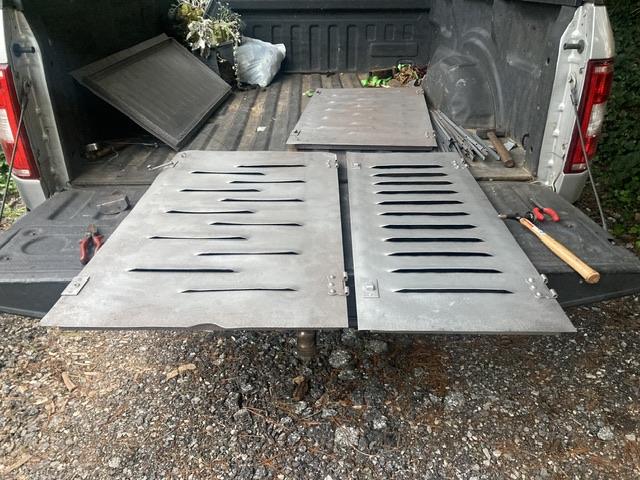

The blast shop sent some of the louvered hood doors through a machine that was a little too aggressive. Not a big deal, but some of the panels and louvers are bent. Had to get at it with a hammer and dolly. Left is before, right is after.


Attachments:
IMG_5335.jpeg [ 169.29 KiB | Viewed 94868 times ]
IMG_5337.jpeg [ 143.17 KiB | Viewed 94868 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Mon Oct 09, 2023 10:30 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 123
Small update. But here ya go.

The local weather hasn’t been kind for spraying primer and paint. So, I switched to another lane and disassembled the brake stand.

Gotta make progress where you can.

I need to be more self sufficient in regards to rebuilding brake valves. Figured I’d start with my own stuff in #6. Best to learn on your own equipment, right?

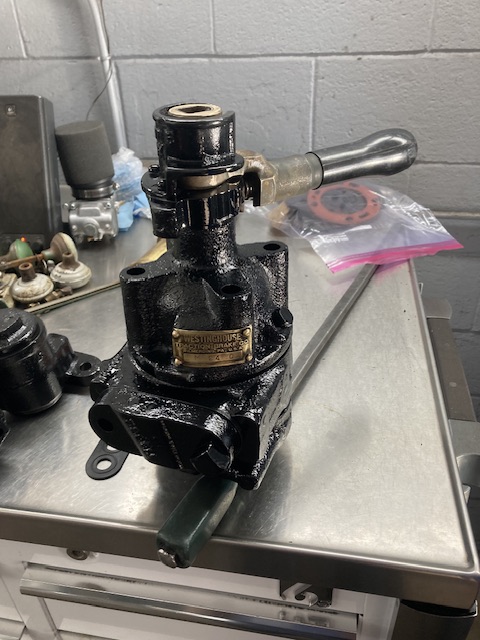

Here’s the brake stand, I have a contact in to my local shop and, hopefully, they can sell me the proper gaskets to complete the job. It’s a Westinghouse AMM system and the brake stand is an M24C.

Strange system. Has one brake handle that operates the independent and the automatic at the same time. No idea how it operates, I’ll learn more once it’s aired up and I make some valve moves. Looks like you switch a valve for running light or running a train. Either way, I’ll make sure it’s understood and safe before operation.


Attachments:
IMG_5387.jpeg [ 108.65 KiB | Viewed 94706 times ]
IMG_5386.jpeg [ 148.36 KiB | Viewed 94706 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Mon Oct 09, 2023 11:38 pm

Joined: Thu Oct 08, 2015 11:54 am
Posts: 1767
Location: New Franklin, OH
Longwood Elastomers in Whytheville, VA may have the rebuild kits for all your valves. They’re a part of Wabtec. https://www.wabteccorp.com/elastomers

_________________
Eric Schlentner
Turner of Wrenches, Drawer of Things


Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Sat Oct 14, 2023 8:55 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 123

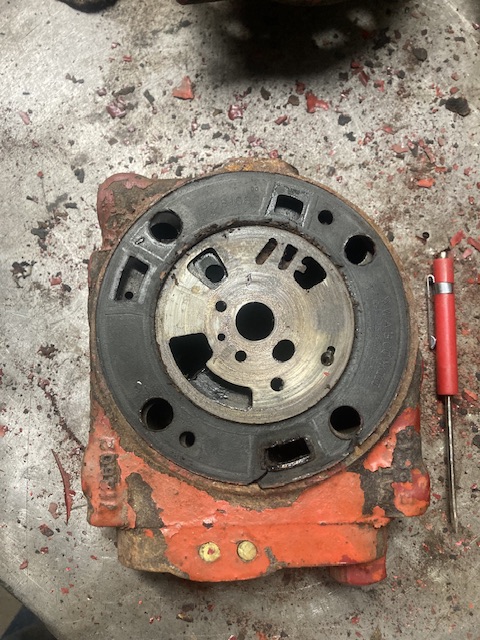

Found something interesting in our engine house today.

Some new-old-stock gaskets for 6’s brake stand. Of course they are brittle and no good, but might get some part numbers and patterns for new gaskets.


Attachments:
IMG_5401.jpeg [ 136.58 KiB | Viewed 94332 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Mon Oct 23, 2023 6:22 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 123

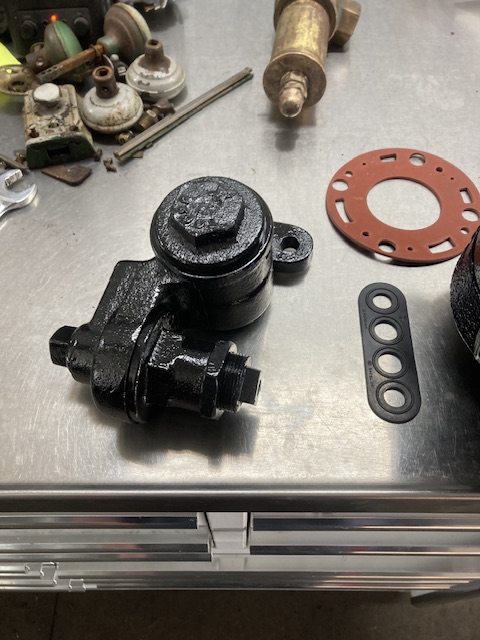

The gasket and seal order showed up today.

The feed valve and brake stand are ready to go. Two more valves need service. A triple valve, and I believe a double check valve. Will learn more about them when they are apart.


Attachments:
IMG_5436.jpeg [ 100.55 KiB | Viewed 94060 times ]
IMG_5437.jpeg [ 101.88 KiB | Viewed 94060 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Thu Nov 30, 2023 7:29 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 123
Sorry.

No pictures today. Been super busy.

I serviced the triple valve and a double check valve. All part of the AMM system on Little Mo.

The fuel tank is almost ready to install. I have the fittings welded and the fuel level sending unit flange is welded in place.


Will update with pictures as the tank gets primed, painted, and installed.

I’m excited to get this phase done and start reassembling the hood structure.


Mark


Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Thu Dec 07, 2023 7:59 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 123
Got the fuel tank primed today. Check out my low budget rotisserie!

I’ll get the black topcoat on it tomorrow.

I’m starting to second guess myself on the drive chains. I spent a bunch of time, all documented on this thread, to get them together. That fact is, I still don’t trust that they’ll give me a long service life. The Loco is still jacked up right now. Will be a perfect time to install New chains and adjust the axles. Better to do it now than later when it’s in service. I’ll keep the old chains for spare parts.


Attachments:
IMG_5538.jpeg [ 97.5 KiB | Viewed 92614 times ]
IMG_5539.jpeg [ 115.44 KiB | Viewed 92614 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Fri Dec 08, 2023 7:48 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 123

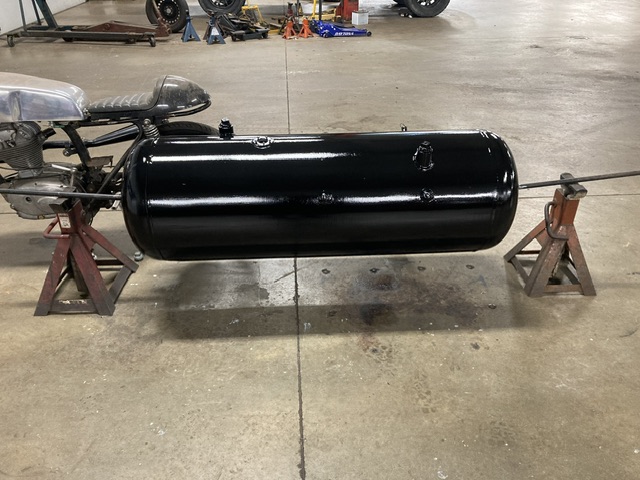

Top coat is on. I’ll wait the 7 days until it’s fully cured, then install the tank on top of the transmission.


Attachments:
IMG_5540.jpeg [ 105.26 KiB | Viewed 92220 times ]
Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Sat Dec 23, 2023 7:22 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 123
Mini update.

Today, I got my flush mix out of both sections of the transmission. Then filled both parts with fresh GL4. Took about 14 gallons. GL4 is hard to find these days. I didn’t trust putting GL5 in there. Not sure if there if there is any Yellow metal in there. The EP additives in GL5 like to eat copper at high temps.

Mark


Offline
 Profile

 Post subject: Re: Stewartstown RR #6
PostPosted: Mon Dec 25, 2023 4:58 pm

Joined: Fri Jun 03, 2022 8:04 pm
Posts: 123

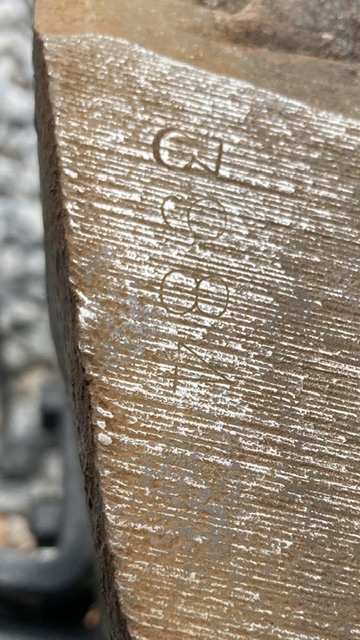

I did some needle scaling and found the Plymouth chassis number. I was always only 99% sure that this was the real Little Mo. Maybe I’m skeptical?

I know this is the Plymouth that was at Edaville. I found that paint scheme under the green topcoat. Was never 100% sure that Little Mo went to Edaville after Wolfeboro had it as their #9.

Was great to finally find out for sure. #3984

Looks like it’s the real deal and I was worried for nothing.


Attachments:
IMG_5566.jpeg [ 111.38 KiB | Viewed 86834 times ]
