 Post subject: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Mon Nov 26, 2018 11:10 pm

Joined: Sat Jul 26, 2008 3:11 pm
Posts: 30

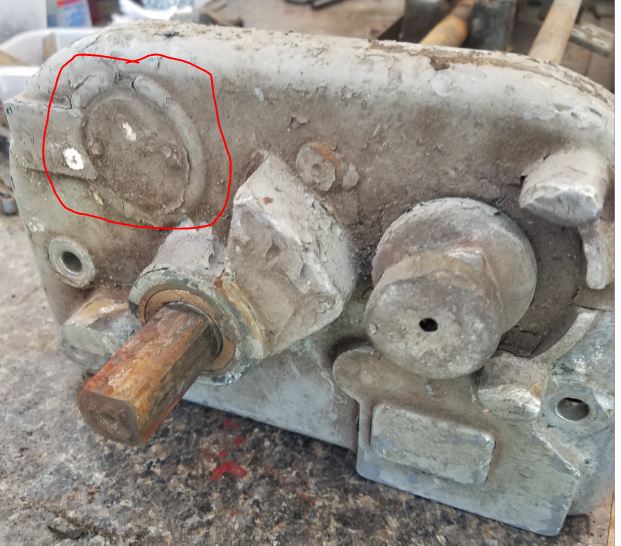

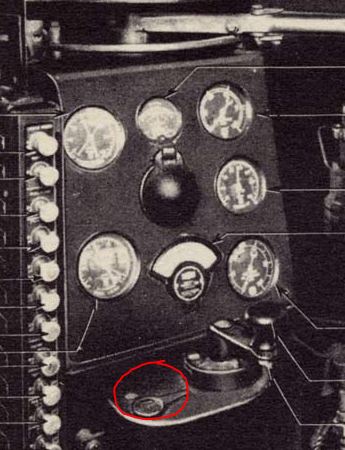

I am in the process of reproducing a full set of control stand ID tags for my RS1. The below images are from an Alco switcher reverser and my RS1's throttle/reverser top. I am looking to find out if anyone has an inkling about what the circular tag on the controllers originally were (assuming they were probably the same)? Mine was obliterated over time, and I have not found any original Alco documentation to give an idea of what it was. Without any firm confirmation I will proceed with using a circular GE logo. Please let me know if anyone can ID what this tag originally was. Thanks

Fred


Attachments:
RS1 Throttle Reverser Top.JPG
RS1 Throttle Reverser Top.JPG [ 72.65 KiB | Viewed 2818 times ]
Original Control Stand.JPG
Original Control Stand.JPG [ 43.19 KiB | Viewed 2818 times ]
Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Mon Nov 26, 2018 11:21 pm

Joined: Sat Oct 10, 2015 12:21 pm
Posts: 35
Hi,

I may have the information for you.

Let me check this coming weekend and i will see.

If i find anything, i will take shots.

Len


Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Tue Nov 27, 2018 1:27 pm

Joined: Tue Dec 06, 2016 11:37 am
Posts: 16
It is the GE company logo ("ge" in script) inside a circle. Around the symbol are the words "GENERAL ELECTRIC COMPANY ".
I would have taken a photo but the tag on our S1 was very worn and painted over.


Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Tue Nov 27, 2018 10:04 pm

Joined: Sat Jul 26, 2008 3:11 pm
Posts: 30
Thank Len and Brian, would still love a photo no matter how bad the logo might look. Brian is it basically like this? I could really use a drawing / photo to get the composition correct.... appreciate the help !

Fred

PS If anyone is looking to get replacement tags I could easily add to my order....


Attachments:
GE Control Stand Logo.JPG
GE Control Stand Logo.JPG [ 22.03 KiB | Viewed 2495 times ]
Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Wed Nov 28, 2018 11:57 am

Joined: Tue Dec 06, 2016 11:37 am
Posts: 16
That's it, but you need to rotate the words clockwise so that General Electric is in the top half, and Company is centered in the bottom half. I will try to get a photo.


Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Wed Nov 28, 2018 8:46 pm

Joined: Sat Jul 26, 2008 3:11 pm
Posts: 30
Is this about it?

Fred


Attachments:
GE Control Stand Logo.JPG
GE Control Stand Logo.JPG [ 22.11 KiB | Viewed 2256 times ]
Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Sat Dec 01, 2018 12:10 pm

Joined: Tue Dec 06, 2016 11:37 am
Posts: 16

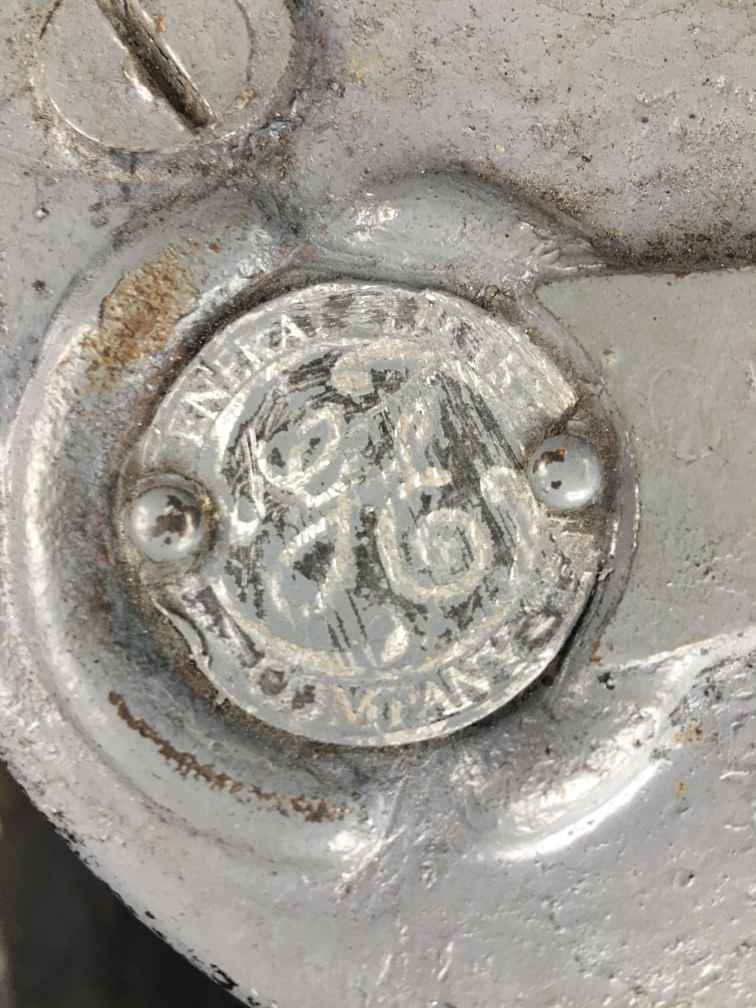

I scratched as much paint off as I could to get you a photo. Not great, but I hope it helps.

Brian


Attachments:
GE emblem.jpg
GE emblem.jpg [ 67.99 KiB | Viewed 2103 times ]
Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Sat Dec 01, 2018 6:46 pm

Joined: Sat Jul 26, 2008 3:11 pm
Posts: 30
Brian thanks, this helps a lot. Guess I had the colors reversed, it should be white letters and outlines on black background.....probably along the lines of this, although I need to clean this up before producing. Thanks for the assistance. PM me if you want a tag to replace yours. I am hoping to have a sample next week.


Attachments:
GE Control Stand Logo.JPG
GE Control Stand Logo.JPG [ 22.96 KiB | Viewed 2043 times ]
Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Sat Dec 01, 2018 8:18 pm

Joined: Sat Jul 26, 2008 3:11 pm
Posts: 30
Corrected … thanks.


Attachments:
GE Control Stand Logo.JPG
GE Control Stand Logo.JPG [ 26.67 KiB | Viewed 2019 times ]
Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Sat Dec 01, 2018 8:27 pm

Joined: Mon Mar 05, 2012 1:37 pm
Posts: 80
Location: Maine
There also seems to be a few numbers before the word "Company". 26288 maybe?

Bob


Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Sat Dec 01, 2018 9:03 pm

Joined: Sat Jul 26, 2008 3:11 pm
Posts: 30
Yes looks like it. Also a "Made in the USA" to the right...


Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Sat Dec 01, 2018 10:10 pm

Joined: Sat Jul 26, 2008 3:11 pm
Posts: 30
Guess maybe like this...?


Attachments:
GE Control Stand Logo.JPG
GE Control Stand Logo.JPG [ 27.41 KiB | Viewed 1983 times ]
Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Sat Dec 01, 2018 10:49 pm

Joined: Thu Aug 26, 2004 2:50 pm
Posts: 2483
Location: Northern Illinois
N.P 26288? What's the N.P., number plate?

_________________
Dennis Storzek


Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Sat Dec 01, 2018 11:45 pm

Joined: Sat Jul 26, 2008 3:11 pm
Posts: 30

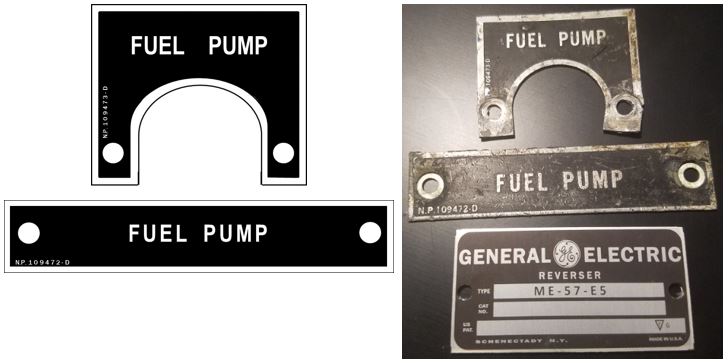

Correct NP seems to mean nameplate as best I can tell. I am in the process of making new nameplates for the control stand as I rebuild it, and I am still tweaking the graphics prior to finalizing and producing the new ones. I have yet to find the nameplates themselves listed as a part in my Alco parts books, so I am just working off my originals. Some of the NP numbers are nearly obliterated and are best guesses, but the side and front plates seem to have corresponding number series, so I am probably close to correct on even the worst ones. You can see the NP in the above example which is about the most legible one I have. I have been applying new plates to the electrical components as I go through them as well (see the reverser plate example), again as the originals are in bad shape or non-existant. But I am also trying to improve the plate designs as I go. The electrical plates are high temp plates so they should fare better over time than the originals did. The control stand plates should be good approximations although embossed plates like the originals will probably be out of the question due to tooling costs. My nameplate guy thinks he can reproduce plates that provide a similar raised letter effect as the embossed originals, so we'll see how they look. I am waiting on samples. In the mean time if anyone has an Alco switcher and can provide the NP numbers on their nameplates I'd appreciate the chance to cross reference what I have. My RS-1 is MU equipped and built to PRR spec, so I am not sure the nameplates are all corresponding to more standard Alco designs.


Attachments:
Nameplate Example.JPG
Nameplate Example.JPG [ 44.06 KiB | Viewed 1952 times ]
Offline
 Profile

 Post subject: Re: Alco Switcher Control Stand Tag - Need ID help
PostPosted: Sun Dec 02, 2018 9:15 am

Joined: Wed Jun 13, 2012 10:38 pm
Posts: 293
Location: Copenhagen, Denmark
I imagine etching might be the best way to replicate the plates in a cost effective manner?

_________________
Stuart Harrod
Steam shop machinist
Nordsjællands Veterantog
Veterantoget.dk
