Surviving Worthington Type B Feed Water Heaters

fltenwheeler · **Joined:** Thu Aug 26, 2004 5:54 pm **Posts:** 67

Hi All

I am looking for information on Worthington feed water heaters. Are there any preserved locomotives that have a Worthington Type B Feed Water Heater installed. I need to get the basic dimensions.

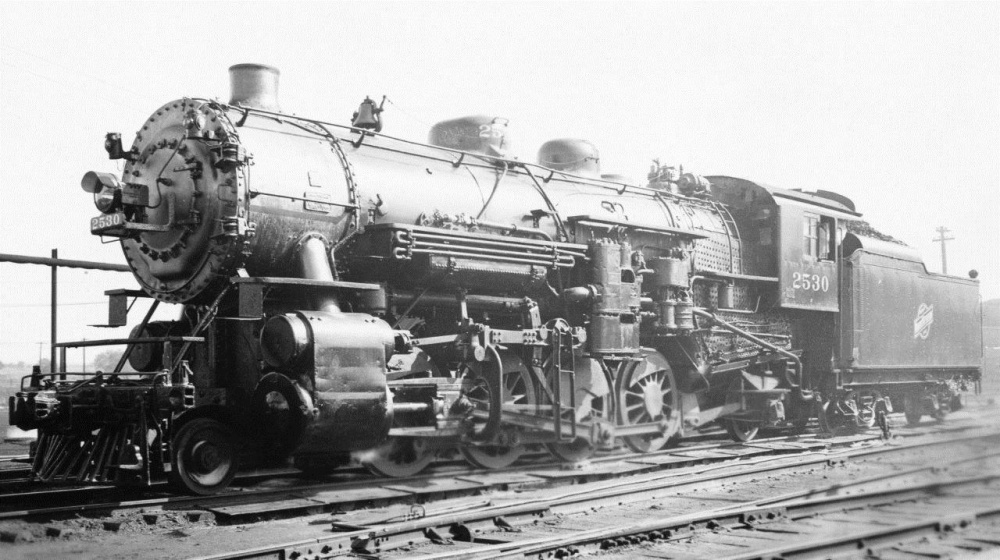

I finely found a picture of the engine I would like to model in 1 1/2" scale. Can someone tell me what size heater is installed?

Thanks

Tim

10stewi · **Posted:** Sun Dec 28, 2014 1:39 pm

There is at least one or two Great Northern steam engines preserved that have this type of FWH. I believe one is a northern and one is a pacific

fltenwheeler · **Joined:** Thu Aug 26, 2004 5:54 pm **Posts:** 67

10stewi wrote:

There is at least one or two Great Northern steam engines preserved that have this type of FWH. I believe one is a northern and one is a pacific

Thanks

Do you know where they are located?

Tim

10stewi · **Posted:** Mon Dec 29, 2014 4:21 pm

GN P2 4-8-2 #2523 has one and is located in Willmar, MN http://www.gngoat.org/steam.htm

I was wrong about the pacific I was thinking of and this is what I had thought was a northern.

A quick search on google shows that the Sp 2472 has one, Sp 5021 has one, Sp 982 has one, Sp (TNO) 975 has one, Lsi 35 has one, Lsi 34 has one, Lsi 33 has one, Lsi 24 has one, Lsi 23 has one, Lsi 22 has one, Lsi 20 has one, Lsi 19 has one, Lsi 18 has one, Baldwin 60000 has one, Nw 2156 has one

I am sure there are more

Les Beckman · **Joined:** Tue Aug 02, 2005 1:25 pm **Posts:** 6482

Tim -

I believe former Chicago, Burlington & Quincy 2-8-2 #4960 had this type feed water heater, but I think I recall that it was removed when the Grand Canyon Railway rebuilt the Mikado. But sister CB&Q #4963, which is located at Illinois Railway Museum, should still have hers.

Les

Pat Fahey · **Posted:** Tue Dec 30, 2014 12:16 am

Attachment:

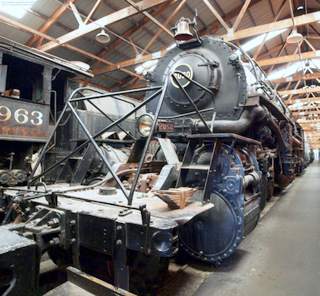

File comment: N&W # 2050 at the Illinois Railway Museum
Union, Illinois

1-nw_2050_02.jpg [ 64.13 KiB | Viewed 10342 times ]

Attachment:

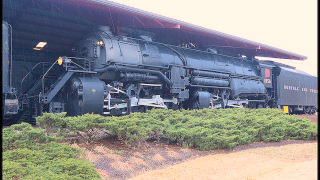

File comment: N&W 2156 at the National Museum of Transportation , Kirkwood , Missouri

1-N&W # 2050.jpg [ 38.25 KiB | Viewed 10342 times ]

Hi
Here is two more you can add to the list , Norfolk & Western Y3a # 2050 & Norfolk & Western # 2156 Y6a they also carry the type BL feed water heater .

Earl Knoob · **Posted:** Tue Dec 30, 2014 1:13 am

10stewi wrote:

GN P2 4-8-2 #2523 has one and is located in Willmar, MN http://www.gngoat.org/steam.htm

I was wrong about the pacific I was thinking of and this is what I had thought was a northern.

A quick search on google shows that the Sp 2472 has one, Sp 5021 has one, Sp 982 has one, Sp (TNO) 975 has one, Lsi 35 has one, Lsi 34 has one, Lsi 33 has one, Lsi 24 has one, Lsi 23 has one, Lsi 22 has one, Lsi 20 has one, Lsi 19 has one, Lsi 18 has one, Baldwin 60000 has one, Nw 2156 has one

I am sure there are more

LS&I 18 (now SLRG 18) no longer has it's Worthington FWH. It was removed and an injector was installed. The space on the side of the boiler was filled with an additional air compressor.

teqdiver · **Joined:** Tue Sep 07, 2004 8:18 pm **Posts:** 81

10stewi wrote:

Lsi 35 has one, Lsi 34 has one, Lsi 33 has one, Lsi 24 has one, Lsi 23 has one, Lsi 22 has one, Lsi 20 has one, Lsi 19 has one, Lsi 18 has one

LS&I 33 has a Worthington BL, not type B as the OP was requesting info on. They are similar, but if the OP wants exact dimensions on a B, the BL may not be so useful.

Ryan P.

YeOldeEnjine · **Joined:** Sun Jan 11, 2009 5:31 pm **Posts:** 329

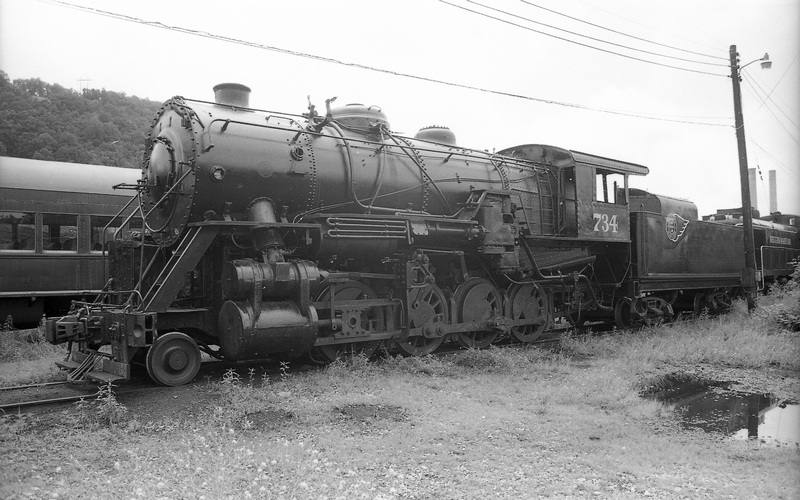

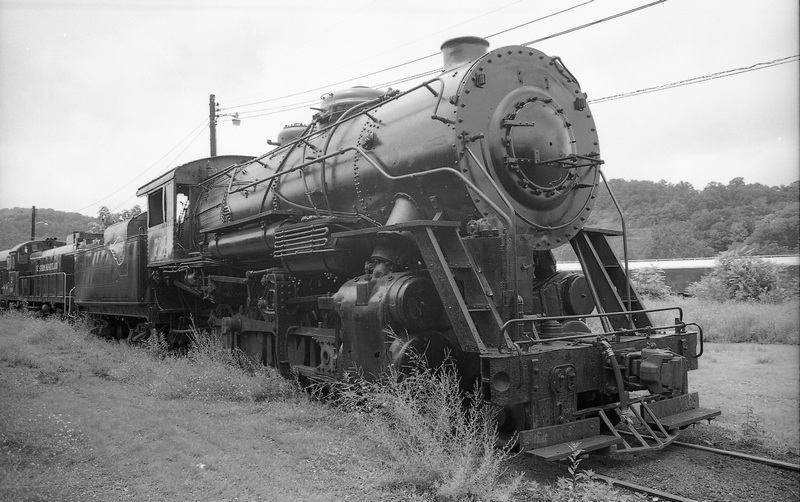

LSI #34 / WMSR #734 had the FWH removed during it's rebuilding in Ridgeley, WV at the WMSR. The FWH was on the front of the locomotive............

Earl Knoob wrote:

10stewi wrote:

GN P2 4-8-2 #2523 has one and is located in Willmar, MN http://www.gngoat.org/steam.htm

A quick search on google shows that the Sp 2472 has one, Sp 5021 has one, Sp 982 has one, Sp (TNO) 975 has one, Lsi 35 has one, Lsi 34 has one, Lsi 33 has one, Lsi 24 has one, Lsi 23 has one, Lsi 22 has one, Lsi 20 has one, Lsi 19 has one, Lsi 18 has one, Baldwin 60000 has one, Nw 2156 has one

teqdiver · **Joined:** Tue Sep 07, 2004 8:18 pm **Posts:** 81

YeOldeEnjine wrote:

LSI #34 / WMSR #734 had the FWH removed during it's rebuilding in Ridgeley, WV at the WMSR. The FWH was on the front of the locomotive............

Nope. BL feedwater heater was mounted in the middle of the fireman's side running board, displacing the cross compound air pump which was moved to the engineer's side pilot, replacing the ladder.

In the later rebuild for the WMSR the FWH was removed and the air pump moved back to the side of the engine.

YeOldeEnjine · **Joined:** Sun Jan 11, 2009 5:31 pm **Posts:** 329

Sorry about that.. I guess I should of paid more attention to my own photos.......
and my memory.....

fltenwheeler · **Joined:** Thu Aug 26, 2004 5:54 pm **Posts:** 67

Thanks for the help.

From the pictures I have found online CB&Q #4963 appears to have a Type B Feed Water Heater of the same size. Unfortunately I live in Florida so I am not close to any of the large collections of steam locomotives.

Does anyone have contact information to someone that would be able to get details of the Feed Water Heater at the Illinois Railway Museum?

Thanks

Tim

Pat Fahey · **Posted:** Tue Dec 30, 2014 8:33 pm

Hi
I have found some drawing for you dealing with the Worthington type B pumps , they are available at this web site .
http://www.livesteamlocomotives.com look under locomotives appliances ..

I am also a live steamer and member of the Waushakum Live Steamers .

fltenwheeler · **Joined:** Thu Aug 26, 2004 5:54 pm **Posts:** 67

Pat Fahey wrote:

Hi
I have found some drawing for you dealing with the Worthington type B pumps , they are available at this web site .
http://www.livesteamlocomotives.com look under locomotives appliances ..

I am also a live steamer and member of the Waushakum Live Steamers .

Hi Pat

Yes, I have the drawings from Roger. They help but are for a BL2 pump. I need to verify the dimensions on the Type B pump.

Tim
